Materials: Raw Metals and Plastics for Precision CNC Machining
CNC machining is a versatile manufacturing process that uses various materials to produce precision parts and components. The choice of material is critical to the performance, durability, and cost-effectiveness of the final product. This guide explores the most common materials used in CNC machining, including their properties, applications, and benefits.
Comprehensive Guide to CNC Materials: Metals and Plastics for Precision Machining
CNC machining is a versatile manufacturing process that uses various materials to produce precision parts and components. The choice of material is critical to the performance, durability, and cost-effectiveness of the final product. This guide explores the most common materials used in CNC machining, including their properties, applications, and benefits.
Metals
Aluminum
Keywords: CNC aluminum, aluminum machining, aluminum parts
Aluminum is one of the most popular materials used in CNC machining due to its excellent machinability, lightweight, and corrosion resistance. It is ideal for aerospace, automotive, and consumer electronics applications.
- Properties: Lightweight, good corrosion resistance, excellent machinability, high thermal and electrical conductivity.
- Common Grades: 6061, 7075, 2024.
- Applications: Aircraft components, automotive parts, electronic housings, and consumer products.
| Property | Description |
|---|---|
| Lightweight | Ideal for weight-sensitive applications |
| Corrosion Resistance | Resistant to oxidation and corrosion |
| Machinability | Easy to machine with high precision |
| Conductivity | Excellent thermal and electrical conductivity |

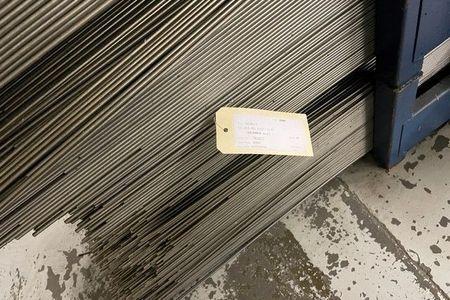

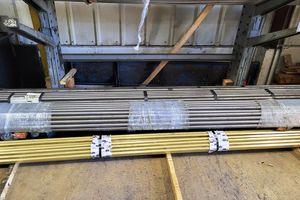

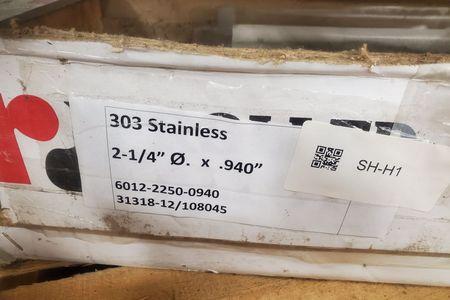

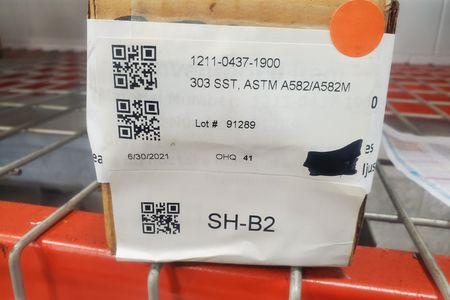

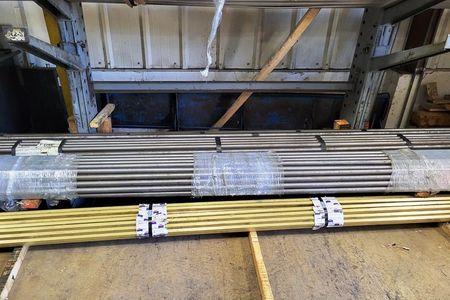

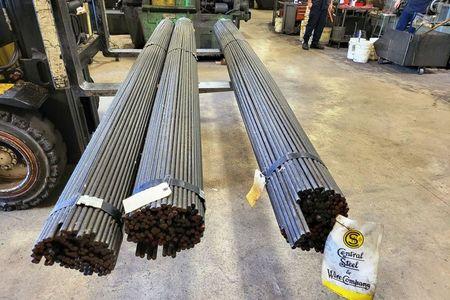

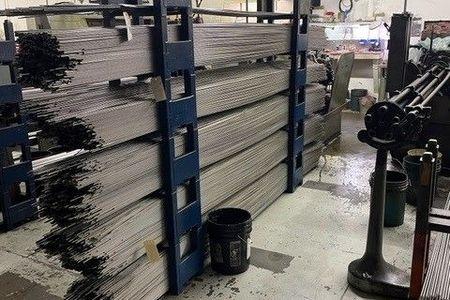

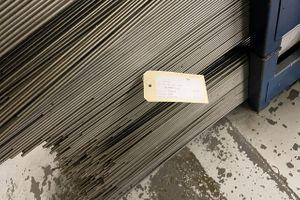

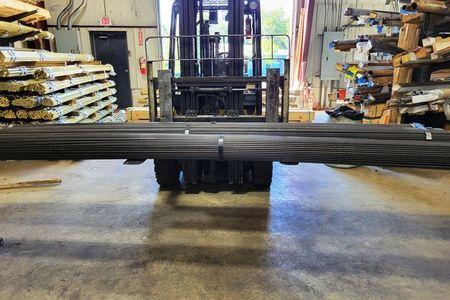

Steel
Keywords: CNC steel, steel machining, steel parts
Steel is a strong and durable material that is widely used in CNC machining for its versatility and high strength. It is suitable for various industries, including automotive, construction, and heavy machinery.
- Properties: High strength, good machinability, excellent durability.
- Common Grades: 1018, 1045, 4140, stainless steel (304, 316).
- Applications: Automotive components, construction parts, industrial machinery, and tools.
| Property | Description |
|---|---|
| High Strength | Suitable for load-bearing applications |
| Machinability | Can be machined to high precision |
| Durability | Long-lasting and wear-resistant |
| Versatility | Used in a wide range of applications |
Titanium
Keywords: CNC titanium, titanium machining, titanium parts
Titanium is known for its exceptional strength-to-weight ratio and corrosion resistance, making it a preferred material in high-performance applications such as aerospace and medical devices.
- Properties: High strength, lightweight, excellent corrosion resistance, biocompatible.
- Common Grades: Grade 2, Grade 5 (Ti-6Al-4V).
- Applications: Aerospace components, medical implants, and high-performance automotive parts.
| Property | Description |
|---|---|
| Strength-to-Weight | High strength with low weight |
| Corrosion Resistance | Resistant to various corrosive environments |
| Biocompatibility | Safe for medical implants |
| High Performance | Suitable for demanding applications |
Brass
Keywords: CNC brass, brass machining, brass parts
Brass is a highly machinable material with good strength and corrosion resistance. It is commonly used in applications requiring low friction and good electrical conductivity.
- Properties: Good strength, excellent machinability, corrosion resistance, good electrical conductivity.
- Common Grades: C360, C464.
- Applications: Fittings, valves, gears, and electrical components.
| Property | Description |
|---|---|
| Machinability | Easy to machine with high precision |
| Corrosion Resistance | Resistant to tarnish and corrosion |
| Electrical Conductivity | Ideal for electrical components |
| Low Friction | Suitable for moving parts |
Bronze
Keywords: CNC bronze, bronze machining, bronze parts
Bronze is an alloy of copper and tin known for its strength, durability, and excellent resistance to corrosion and wear. It is often used in applications requiring high strength and good frictional properties.
- Properties: High strength, good wear resistance, excellent corrosion resistance.
- Common Grades: C932, C954.
- Applications: Bushings, bearings, marine components, and sculptures.
| Property | Description |
|---|---|
| Wear Resistance | Long-lasting in high-wear applications |
| Corrosion Resistance | Ideal for marine environments |
| Strength | Suitable for heavy-duty applications |
| Friction Properties | Low friction for moving parts |
Nickel
Keywords: CNC nickel, nickel machining, nickel parts
Nickel and its alloys are used for their excellent corrosion resistance, high-temperature stability, and good mechanical properties. They are ideal for challenging environments.
- Properties: High corrosion resistance, high-temperature stability, good mechanical properties.
- Common Grades: Inconel 625, Inconel 718.
- Applications: Aerospace components, chemical processing equipment, and high-temperature applications.
| Property | Description |
|---|---|
| Corrosion Resistance | Withstands harsh chemical environments |
| Temperature Stability | Maintains properties at high temperatures |
| Mechanical Properties | Strong and durable under stress |
| Versatility | Suitable for various challenging applications |
Copper
Keywords: CNC copper, copper machining, copper parts
Copper is known for its excellent electrical and thermal conductivity, making it a preferred material for electrical components and heat exchangers.
- Properties: Excellent electrical and thermal conductivity, good machinability, corrosion resistance.
- Common Grades: C101, C110.
- Applications: Electrical connectors, heat exchangers, plumbing components, and decorative items.
| Property | Description |
|---|---|
| Electrical Conductivity | Best material for electrical applications |
| Thermal Conductivity | Effective in heat dissipation |
| Machinability | Easy to machine with high precision |
| Corrosion Resistance | Durable in various environments |
Plastics
ABS (Acrylonitrile Butadiene Styrene)
Keywords: CNC ABS, ABS machining, ABS parts
ABS is a common thermoplastic with good impact resistance and machinability. It is widely used in consumer products and automotive applications.
- Properties: Good impact resistance, easy to machine, lightweight.
- Applications: Automotive parts, consumer electronics, and household appliances.
| Property | Description |
|---|---|
| Impact Resistance | Durable under impact |
| Machinability | Easy to machine |
| Lightweight | Ideal for lightweight applications |
| Versatility | Used in various consumer products |
Polycarbonate
Keywords: CNC polycarbonate, polycarbonate machining, polycarbonate parts
Polycarbonate is a strong, transparent plastic with excellent impact resistance. It is used in applications requiring high strength and optical clarity.
- Properties: High impact resistance, transparency, good thermal stability.
- Applications: Safety glasses, medical devices, and electronic enclosures.
| Property | Description |
|---|---|
| Impact Resistance | High durability |
| Transparency | Clear and strong |
| Thermal Stability | Maintains properties under heat |
| Versatility | Suitable for various applications |
Nylon
Keywords: CNC nylon, nylon machining, nylon parts
Nylon is a durable and versatile thermoplastic used in a wide range of applications due to its good mechanical properties and chemical resistance.
- Properties: High strength, good wear resistance, chemical resistance.
- Applications: Gears, bearings, bushings, and structural components.
| Property | Description |
|---|---|
| Strength | Strong and durable |
| Wear Resistance | Ideal for high-wear applications |
| Chemical Resistance | Withstands various chemicals |
| Versatility | Used in numerous applications |
POM (Polyoxymethylene/Acetal)
Keywords: CNC POM, POM machining, POM parts
POM, also known as acetal, is a high-performance plastic with excellent stiffness, low friction, and good dimensional stability. It is commonly used in precision parts.
- Properties: High stiffness, low friction, good dimensional stability.
- Applications: Gears, pulleys, and precision mechanical components.
| Property | Description |
|---|---|
| Stiffness | High rigidity |
| Low Friction | Ideal for moving parts |
| Dimensional Stability | Maintains shape and size |
| Precision | Suitable for precise applications |
PTFE (Polytetrafluoroethylene)
Keywords: CNC PTFE, PTFE machining, PTFE parts
PTFE, commonly known as Teflon, is a non-reactive and low-friction plastic with excellent chemical resistance. It is used in applications requiring high chemical resistance and low friction.
- Properties: Excellent chemical resistance, low friction, high temperature stability.
- Applications: Seals, gaskets, and bearings.
| Property | Description |
|---|---|
| Chemical Resistance | Withstands aggressive chemicals |
| Low Friction | Non-stick properties |
| Temperature Stability | Maintains properties at high temperatures |
| Versatility | Used in various applications |
Conclusion
Choosing the right material for CNC machining is crucial for ensuring the performance, durability, and cost-effectiveness of the final product. Whether you need metals like aluminum, steel, titanium, brass, bronze, nickel, and copper, or plastics like ABS, polycarbonate, nylon, POM, and PTFE, each material offers unique properties that make it suitable for specific applications. Understanding these materials and their benefits will help you make informed decisions for your CNC projects.
