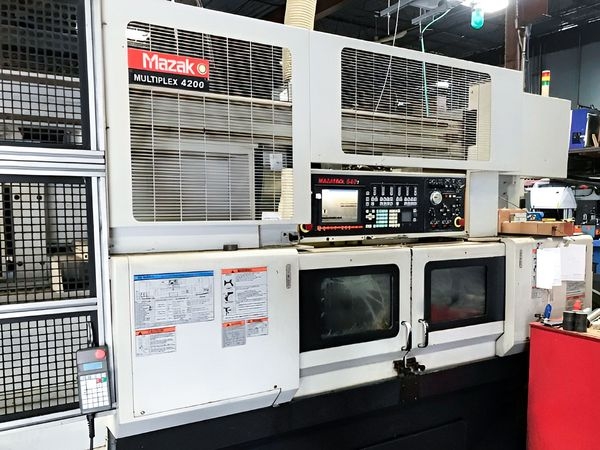

Pre-owned MAZAK MULTIPLEX 4200 2004 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This MAZAK CNC Lathe is available for a limited time. Get a quote today on this MULTIPLEX 4200 before it's gone.

Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 22 HP
X Axis Travel: 9"
Z Axis Travel: 17.25"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Max Turning Dia: 12.6"
Rapid Rate X Axis: 1,200 IPM
Max Turning Length: 21.32"
Max Swing: 12.6"
Rapid Feed rate: 1300 IPM
Max Torque (30-min rating) : 240 Ft Lbs
Dimensions: 84" x 130" x 98"
Weight: 18,000 LBS
Mazatrol Fusion 640T
Tool Presetter
Sub Spindle
Gantry Load / Unloading
