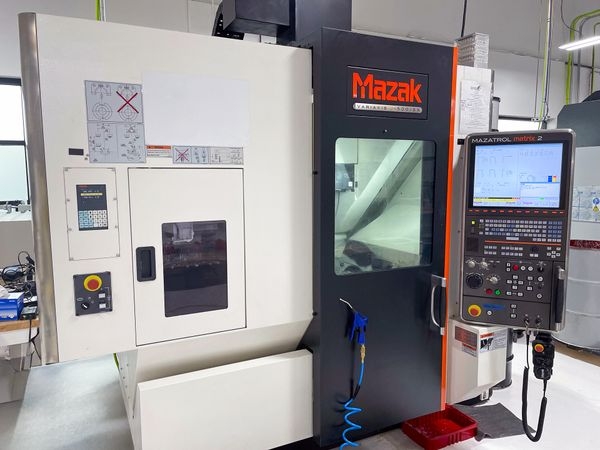

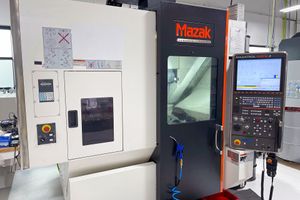

Pre-owned 2015 MAZAK VARIAXIS j500/5X 5-Axis Vertical Machining Center. This Universal 5-Axis Vertical Machining Center has Very Low cutting time and is equipped with a Mazak Mazatrol Matrix 2 CNC control, High Pressure...Read More
Notify Me:
Specs:
Table size: 19.69” × 15.75”
Max. workpiece size: 19.69” × 13.78”
Table load capacity: 441 Lbs
Table top to spindle nose: 1.97” ~ 22.05”
Table surface configuration: M16 x P2 (5/8-11 UNC)
X-axis travel (spindle head left / right): 13.78”
Y-axis travel (spindle head back / forth): 21.65"
Z-axis travel (spindle head up / down): 20.8"
A-axis travel (table tilt): -120 ? ?30°
B-axis travel (table tilt):
C-axis travel (table rotation): 360°
Max. Spindle Speed: 12,000 RPM
Spindle Taper: CAT40
Spindle bearing ID: 2.76" Diameter
Tool shank configuration: No. 40
Tool storage capacity: 31 Station
Max. tool diameter / length: 3.54" / 11.8"
Max. tool diameter: 5.12" with Adjacent Spot Empty
Equipped With:
Mazak Mazatrol Matrix 2 CNC Control
Renishaw Probe System
High Pressure Thru Spindle Coolant
High Pressure Coolant
High Pressure Thru Air
Full 5-Axis Simultaneous Machining
Chip Conveyor
Max. workpiece size: 19.69” × 13.78”
Table load capacity: 441 Lbs
Table top to spindle nose: 1.97” ~ 22.05”
Table surface configuration: M16 x P2 (5/8-11 UNC)
X-axis travel (spindle head left / right): 13.78”
Y-axis travel (spindle head back / forth): 21.65"
Z-axis travel (spindle head up / down): 20.8"
A-axis travel (table tilt): -120 ? ?30°
B-axis travel (table tilt):
C-axis travel (table rotation): 360°
Max. Spindle Speed: 12,000 RPM
Spindle Taper: CAT40
Spindle bearing ID: 2.76" Diameter
Tool shank configuration: No. 40
Tool storage capacity: 31 Station
Max. tool diameter / length: 3.54" / 11.8"
Max. tool diameter: 5.12" with Adjacent Spot Empty
Equipped With:
Mazak Mazatrol Matrix 2 CNC Control
Renishaw Probe System
High Pressure Thru Spindle Coolant
High Pressure Coolant
High Pressure Thru Air
Full 5-Axis Simultaneous Machining
Chip Conveyor
Options:
Mazatrol
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
5 Axis
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
5 Axis
