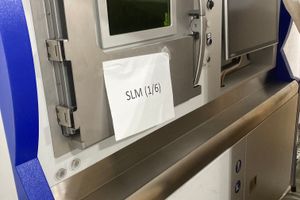

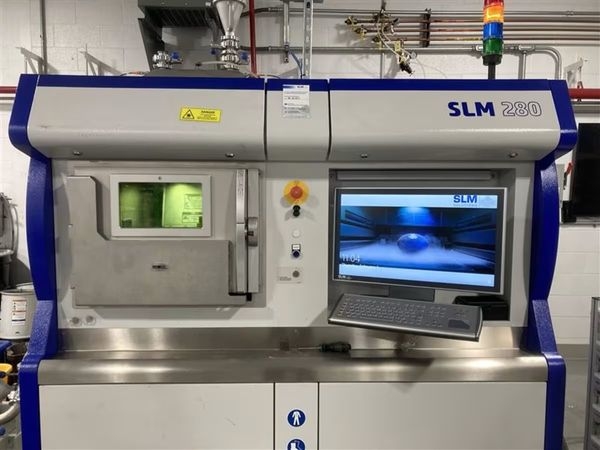

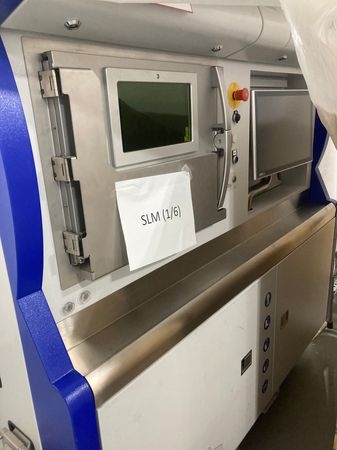

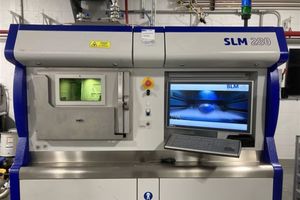

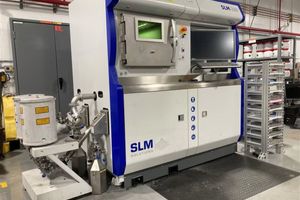

2020 NIKON SLM SOLUTIONS SLM 280 TWIN 400W LASER #12307

Type: - Selective Laser Melting Metal 3D Printer
Lasers: Dual 400-Watt IPG Lasers
Build Envelope (L x W x H) - 280 x 280 x 365 mm reduced by substrate plate thickness
3D Optics Configuration - Single (1x 400W or 1x 700W), Twin (2x 400 W or 2x 700W)
Dual (1x 400W and 1x 700W) IPG fiber laser
Real Build Rate - up to 113 cm³/h*
Variable Layer Thickness - 20 ?m - 90 ?m, , more available on request
Minimum Feature Size - 150 ?m
Beam Focus Diameter - 80 - 115 ?m
Maximum Scan Speed - 10 m/s
Average Inert Gas Consumption in Process - 5 l/min (Argon)
Average Inert Gas Consumption in Purging - 110 l/min (Argon)
E-Connection / Power Input - 400 Volt 3NPE, 63 A, 50/60 Hz, 3.5-5.5 kW
Compressed Air Requirement - ISO 8573-1:2010 [1:4:1] 7 bar
Machine Dimensions (L x W x H) - 2600 mm x 1200 mm x 2700 mm

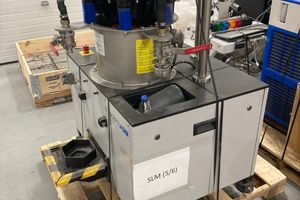

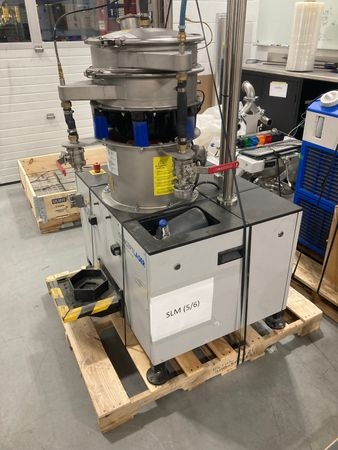

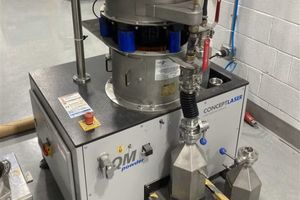

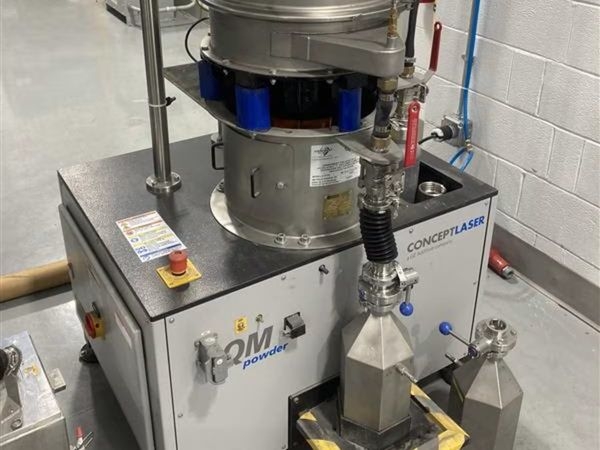

Concept Laser QM Powder Sieve

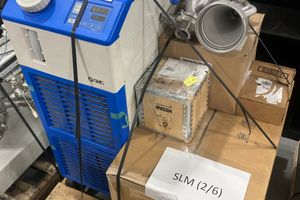

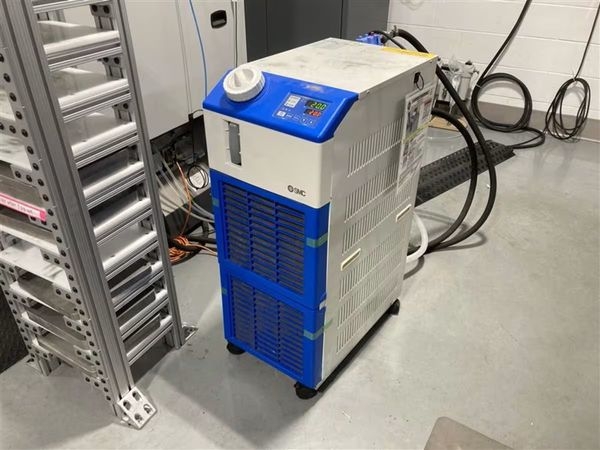

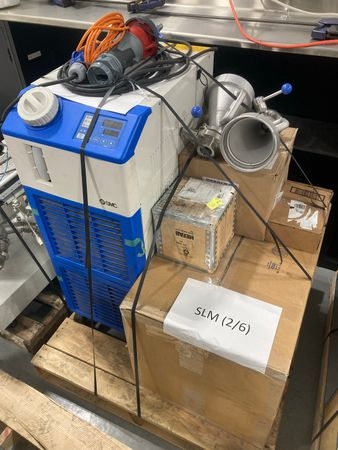

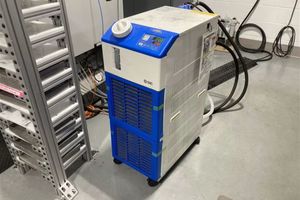

SMC Thermo Chiller HRS050-AF-20M
Ruwac MX362EX Explosion Proof Vacuum
50 kg of 316L Stainless Steel Powder (from SLM Solutions)

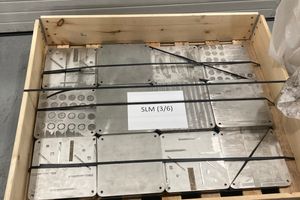

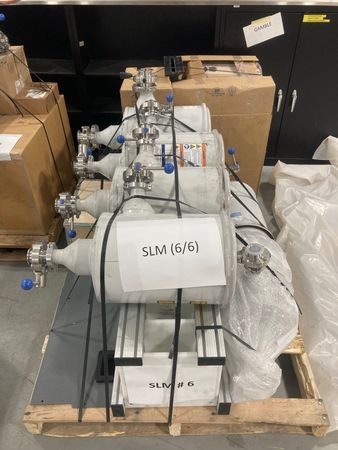

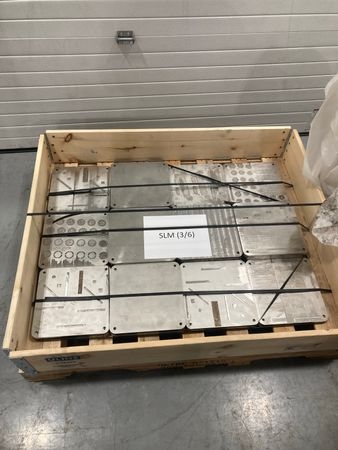

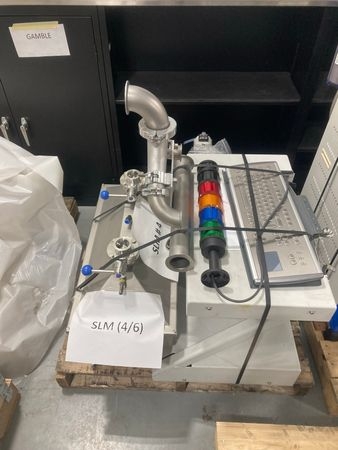

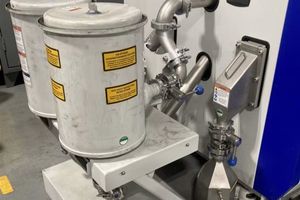

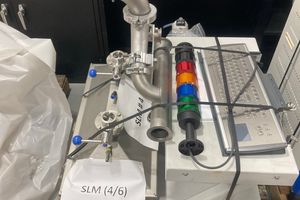

Various build plates, filters, storage bottles and other accessories
