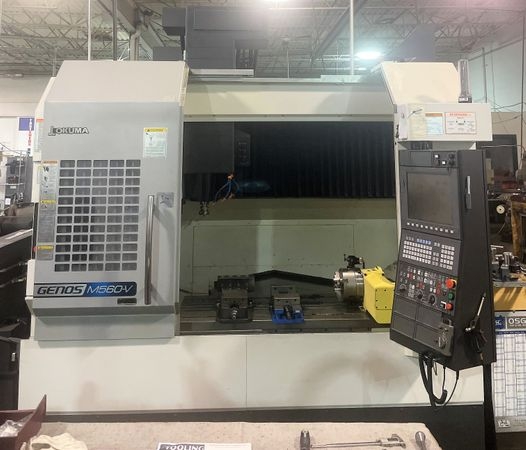

Used OKUMA GENOS M560V Vertical Machining Center
Pre-owned OKUMA GENOS M560V 2016 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a OSP control. This CNC Machine is currently located in USA. This OKUMA Vertical Machining Center is available for a limited time. Get a quote today on this GENOS M560V before it's gone.
Specs:
X Axis Travel: 41.34"
Y Axis Travel: 22.05"
Z Axis Travel: 18.11"
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,262 IPM
Table Size: 51.18" x 22.05"
Max Table Load: 1,980 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 BIG Plus CT
Tool Changer: 32 ATC
Max. Workpiece Weight 1,980 lbs
Spindle Nose To Table (Max) 24.02"
Spindle Nose To Table (Min) 5.91"
Max. Tool Length 11.8"
Max. Tool Diameter 4.9"
Max. Tool Weight 18"
Dimensions: 122" x 99" x 108"
Weight: 16,500 LBS
Y Axis Travel: 22.05"
Z Axis Travel: 18.11"
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,262 IPM
Table Size: 51.18" x 22.05"
Max Table Load: 1,980 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 BIG Plus CT
Tool Changer: 32 ATC
Max. Workpiece Weight 1,980 lbs
Spindle Nose To Table (Max) 24.02"
Spindle Nose To Table (Min) 5.91"
Max. Tool Length 11.8"
Max. Tool Diameter 4.9"
Max. Tool Weight 18"
Dimensions: 122" x 99" x 108"
Weight: 16,500 LBS
Options:
OSP
Probe
Chip Conveyor
Coolant Thru Spindle
4th Axis Rotary Table
Cutting hours = 2258:29:16
Probe
Chip Conveyor
Coolant Thru Spindle
4th Axis Rotary Table
Cutting hours = 2258:29:16
Price:
$109,900
Payment:
Owner:
Jake (Machine Shop in PA)
