Home / CNC Lathe / TORNOS / SWISS DT 32 HP / 13072
Posted By GeorM229
BUY NOW
us-flag
Located In Texas
Hello!

Machine Overview

Specs:
Bar Capacity: 1"
Spindle Speed: 10,000 RPM
Turret Tools: 29 Station
Max Turning Dia: 1"
Max Turning Length: 9.84"
Counter Spindle Speed: 10,000 RPM
Counter Spindle Bar Diameter: 1
Rotating Tool Speed (Main): 6,000 RPM
Rotating Tool Speed (Counter): 7,200 RPM
Standard Workpiece Length with guide bush (Main): 8.85"
Max standard length of workpiece (Counter): 4.72"
Dimensions: 87.79" x 49.21" x 68.11"
Weight: 5,975 LBS
Options:
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Fanuc Series 0iTF Plus CNC Control
25.1 MM Capacity (1”)
Main Spindle 10,000 RPM
Counter Spindle 10,000 RPM
C-Axis on Main and Counter Spindle
B Axis including 3 rotational spindles
Rotation Drilling/Milling Attachment
Tooling plate for 6 Turning Tools on Front
Motorized For rotating Tooling
2 Rotating cross attachments
1 front tool block with 4x
Support block for 4 back working tools
Part recovery channel and transport band
Edge 12’ Magazine Bar Feeder
Mist-Fit MF 550
Coolant System
Description:

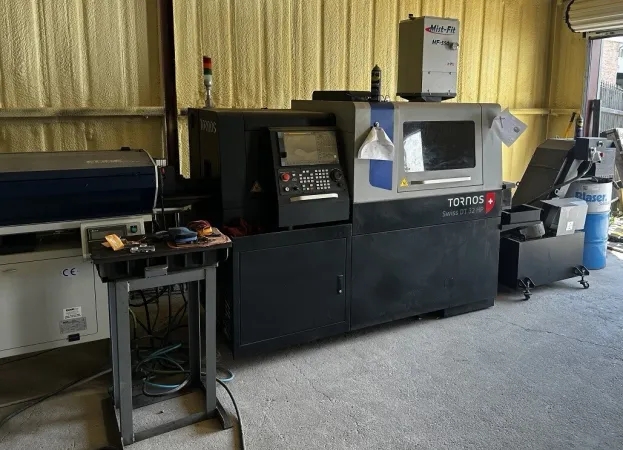

This 2022 TORNOS SWISS DT 32 HP CNC Lathe offers an impressive suite of features designed for intricate machining tasks. Outfitted with an array of options and upgrades, this machine caters to high-precision operations commonly demanded in modern manufacturing environments.

The lathe is equipped with a chip conveyor that streamlines material handling, a tool presetter that ensures quick setup, and a bar feeder to maintain a steady feed of raw materials. The parts catcher works efficiently to handle machined pieces, minimizing manual intervention.

Its live tooling capability, accompanied by a sub spindle, enhances the machine's versatility, allowing complex part machining without multiple setups. The Fanuc Series 0iTF Plus CNC Control serves as the brain of the operations, facilitating intuitive control and programming.

The lathe boasts a 25.1 MM capacity (1”), with main and counter spindles both running at a remarkable speed of 10,000 RPM. This allows for high-speed machining, reducing cycle times while maintaining precision. It is also fitted with a C-Axis on both the main and counter spindles, expanding its range for rotational work.

One of the standout features is its B Axis, which includes three rotational spindles and a rotation drilling/milling attachment, offering versatility in complex machining. The tooling plate supports six turning tools on the front, and the system is motorized to aid in rotating tooling. Additional rotating cross attachments further extend the tooling capabilities.

A front tool block accommodates four tools, while the support block at the back holds four working tools, enhancing its ability to handle diverse tasks seamlessly. The part recovery channel and transport band efficiently manage completed components and waste, ensuring a tidy work environment.

The lathe includes an Edge 12’ Magazine Bar Feeder and a Mist-Fit MF 550 that optimizes space and increases automation in the workflow. The coolant system ensures the machine operates within optimal temperature ranges, pivotal for maintaining machining accuracy and tool longevity.

This TORNOS model is a practical investment for manufacturers needing a comprehensive, high-precision lathe with adaptable features fit for scaling up operations in machining industries.
