$242,000

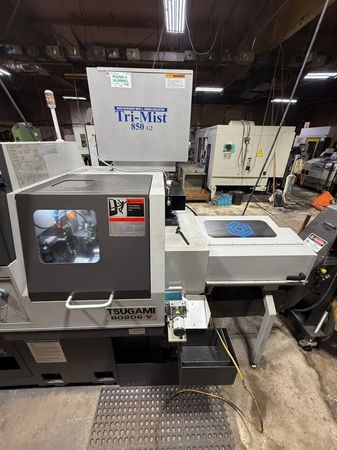

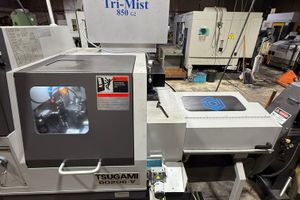

2024 TSUGAMI B0206

ID:14641
Brand:TSUGAMI
Model: B0206
Year:2024
Category:CNC Lathe
Location:Ohio

Located In Ohio

SHIPPING COST :

TSUGAMI B0206 AI Chat

Loading ...

Machine Overview

Specs:

Maximum Machining Diameter .787" (20mm)
Maximum Headstock stroke (Guide Bushing) 6.69" (170mm)
Maximum Headstock stroke (Chucker) 1.771" (45mm)
Maximum Main Spindle Speed 10,000 rpm
Live Tool Spindle Speed 8,000 rpm
Sub Spindle Maximum Machining Diameter .787" (20mm)
Sub Spindle Front Ejection maximum length 3.15" (80mm)
Sub Spindle Speed 12,000 rpm
Max Tool Spindle Slotting Cutter Diameter (30mm)
Max Rapid Traverse Rate 36 M/min
Input Power 11.0 KVA
Compressed Air Requirements 60psi
Coolant Tank Capacity 180L (47 Gal.)
Main Spindle 7.5 hp (3.7/5.5 kW)
Sub Spindle 5.0 hp (2.2/3.7 kW)
Motors
Axes Motors .67 hp (.5 kW)
Live Tool 1.34 hp (1 kW)
Coolant 0.36 hp (.25 kW)

Total Tool Positions 28
Gang Tool Post (Turning) 6
Gang Tool Post (Live) 5
Mountable Tools
Front Drilling 4
Back Drilling 4 Stationary/6 Live
Turning Tools 1/2" square
Tooling Size
Main Spindle ER Collet Holders 20mm Dia.
Sub Spindle ER Collet Holders 20mm Dia.
Main Spindle Collet TF 25
Sub Spindle Collet TF 25
Collets / Bushings
Guide Bushing TD26
Live Tool Collet ER16/ER11
Dimensions: 69" x 42" x 47"
Weight: 3,968 LBS

Options:

Fanuc 0i-TF
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis

Description:

Pre-owned TSUGAMI B0206 2024 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Ohio. This TSUGAMI CNC Lathe is available for a limited time. Get a quote today on this B0206 before it's gone.
