Machine Overview

Specs:

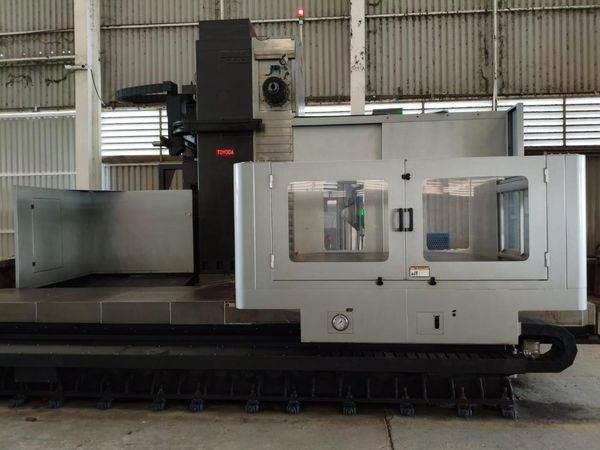

2023 Toyoda Boring Mill: HB1620-130
Located in Tabasco, Mexico
+52 993 236 4618
X Axis Travel: 3000 mm
Y Axis Travel: 2100 mm
Z Axis Travel: 1500 mm
W Axis Travel: 700 mm
Rapid Rate X Axis: 15000 mm/min
Rapid Rate Y Axis: 12000 mm/min
Rapid Rate Z Axis: 15000 mm/min
Quill Diameter: 130 mm
Table Load: 20 TON
Spindle Speed: 2500 rpm
Spindle Motor: 30/35 HP
Spindle Taper: 50
Tool Storage Capacity: 40 tools
Dimensions: 7795 mm x 6772 mm x 4522 mm
Weight: 36,000 kg

Options:
Fanuc 31iMB
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
360 Deg. Indexing Table
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
360 Deg. Indexing Table
Table Type
5 Axis
Two Steps Geared Driven Spindle
Hydraulic Counter Balancing System
B Axis Rotary Table
Hydraulic and Pneumatic system
Spindle Oil Cooling System
Spindle Air Blush System
Table Size: 1600 x 2000 [mm]
Coolant Wash Gun
Dual Screw Type Chip Conveyor
Tool Box
Sealed Electronic Cabinet with Heat Exchange
Movable Handle Wheel
Footswitch for Spindle Tool Clamp
Work Light
Description:

Pre-owned TOYODA TOYODA 2023 Horizontal Machining Center. This Horizontal Machining Center has 0-500 cutting time and is equipped with a Fanuc 31iMB control. This CNC Machine is currently located in USA. This TOYODA Horizontal Machining Center is available for a limited time. Get a quote today on this TOYODA before it's gone.
