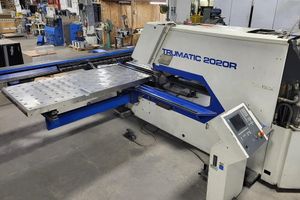

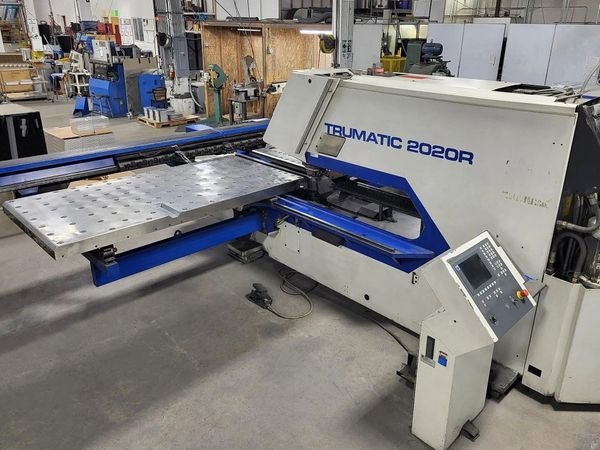

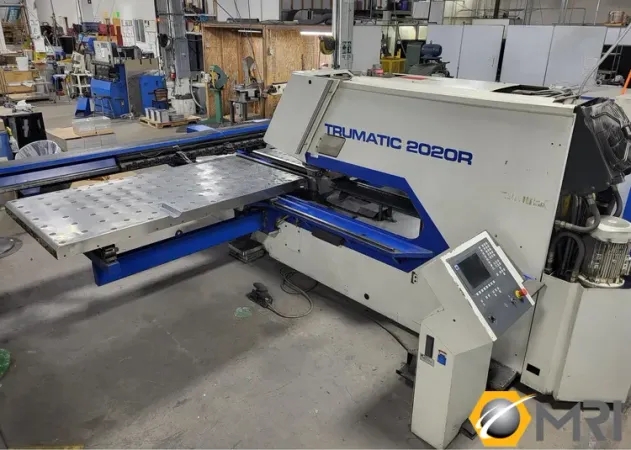

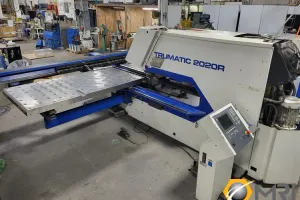

2005 TRUMPF TRUMATIC2020R

ID:14151
Brand:TRUMPF
Model: TRUMATIC2020R
Year:2005
Category:Laser
Location:California

Located In California

SHIPPING COST :

TRUMPF TRUMATIC2020R AI Chat

Loading ...

Machine Overview

Specs:

EQUIPPED WITH
BOSCH CONTROL
BALL TRANSFER TABLE
19 POSITION TOOL RAIL
NEW LINEAR AMPLIFIER IN 2019
HOURS: 42,396
SPECIFICATIONS
TONNAGE 20 T
# TURRET STATIONS 19
WEIGHT 25000 LBS
TONNAGE CAPACITY: 22 TONS
MAXIMUM SHEET THICKNESS: 1/4"
MAXIMUM PUNCH DIAMETER: 3"
Y-AXIS TABLE TRAVEL: 50"
X-AXIS TABLE TRAVEL: 100"
MAXIMUM WORKPIECE WEIGHT: 330 LBS.
MAXIMUM HIT RATE: 420 SPM
MAXIMUM POSITIONING SPEED (Y-AXIS): 2,400 IPM
MAXIMUM POSITIONING SPEED (X-AXIS): 3,600 IPM
PUNCH DIMESNIONS: 264"(L) x 300"(W) x 96"(H)
PUNCH WEIGHT: 25,000 LBS

Description:

Pre-owned TRUMPF TRUMATIC2020R 2005 Laser. This Laser has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in California. This TRUMPF Laser is available for a limited time. Get a quote today on this TRUMATIC2020R before it's gone.
