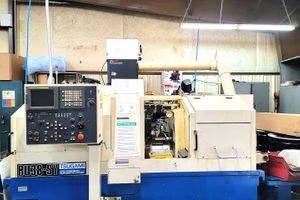

Used TSUGAMI BU38SY CNC Lathe
This pre-owned 2006 TSUGAMI BU38SY CNC Lathe is a top-performing industrial machine designed to meet the demands of modern manufacturing operations. Equipped with various options and upgrades, this lathe is capable of precision cutting, drilling, and milling tasks with ease and accuracy. One of the key features of this machine is the Iemca 12' Magazine Type Barfeed that facilitates uninterrupted material flow and reduces production time significantly. The bar feeder enhances efficiency by automating the feeding process, allowing the operator to focus on other tasks. The Parts Catcher is another unique addition to this machine, enabling it to collect finished parts as they fall off the main spindle. The collection of parts automation streamlines the manufacturing process and reduces cycle time, making it an excellent option for high volume production. For those that require complex machining, the live tooling feature is essential. The 2 position live tool unit for gang provides a quick tool change-over, improving the overall efficiency of the machine. With the 5-axis capability, this CNC lathe significantly increases the number of operations possible while reducing tooling and setups, leading to remarkable time savings. The REM Cool High Pressure Coolant system is a powerful tool which enables this 2006 TSUGAMI BU38SY CNC Lathe to deliver exceptional accuracy through minimal thermal distortion, reduce chip build-up and promote sharper cutting edges. This significantly contributes to the overall quality of the finished product. In order to streamline the handling of finished parts, this lathe includes a part conveyor. The conveyor enables continuous production and facilitates the removal of finished parts from the work area. This machine has a unique 5 degree indexing system on the sub-spindle, one of the key attributes that make it a preferred option in the market. The indexing feature ensures smooth operation during complicated machining processes, reducing the risk of errors and improving the quality of the finished product. Boasting Full C on Main, this pre-owned 2006 TSUGAMI BU38SY CNC Lathe is an ideal investment if you're looking to streamline your production process while ensuring high precision standards. Whether you're producing high volume goods or looking for a lathe that can handle complex machining, this CNC lathe is a reliable, versatile machine that will undoubtedly prove worth your investment.
Spindle Speed: 5,000 RPM
Spindle Motor: 10 HP
Rapid Rate Z Axis: 787 IPM
Turret Tools: 8 Station
Rapid Rate X Axis: 472 IPM
Max. Drilling Diameter: .63" (in 1045 Steel)
Max. Tapping Size: 1/2" (in 1045 Steel)
Stroke:
X1, X2: 3.15"
Z1: 9.8"
Z2: 5.51"
Y (T2 Turret): 3.15" (Y & SY Models)
Z3: 11.22"
Tooling:
Turret: 8 stations,
up to 3 tool pos per station
Gang Slide: 7 stations
Sub Spindle:
Speed: 60 to 5,000 Rpm
Motor Output: 3.7/5.5 kW (5/7.5 HP)
Cutting Torque: 14 N-m
Spindle Indexing: 5 degree (optional)
Dimensions: 139" x 81" x 70"
Weight: 11,500 LBS
Parts Catcher
Live Tooling
5 Axis
Iemca 12'Magazine Type Barfeed
Includes 2 position live tool unit for gang
REM Cool High Pressure Coolant 500 psi
Part Conveyor
Full C on Main
5 degree indexing on sub-spindle
$59,900
