Seller Needs:

$102,000

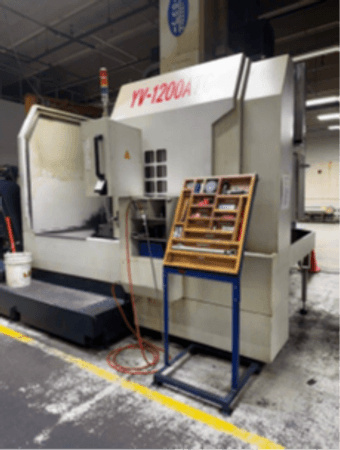

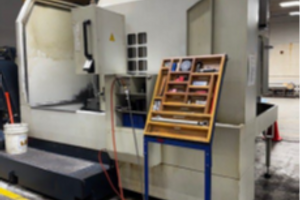

2007 YOU JI YV1200ATC

ID:15675
Brand:YOU JI
Model: YV1200ATC
Year:2007
Category:CNC Lathe
Location:Arizona

Located In Arizona

SHIPPING COST :

YOU JI YV1200ATC AI Chat

Loading ...

Machine Overview

Specs:

pecification

Value

Maximum swing

63"

Standard turning diameter

47.2"

Maximum turning diameter

55.1"

Maximum cross travel (X axis)

-3.94" to +34.5"

Maximum longitudinal travel (Z axis)

35.4"

Maximum cross rail travel (manual control)

31.5"

Maximum cutting height

50"

Ram distance to table (max/min)

60" / 0"

Spindle
Specification

Value

Spindle motor

60 HP

Spindle load

11,000 lbs

Spindle RPM

2–350

Spindle bearing diameter

18"

Spindle torque

9,220 ft./lbs.

Manual chuck

49" 4-Jaw Independent

ATC (Automatic Tool Changer)
Specification

Value

Tool positions

12

ATC type

Umbrella / Electric

Tool mounting

#50 taper

O.D. tool shank size

1.25"

I.D. tool shank size

2.5"

Tool change time

30 seconds

Maximum single tool weight

110 lbs.

Maximum magazine capacity

800 lbs.

Ballscrews and Axis Motors
Specification

Value

Z axis ballscrew diameter

63 mm (2.48") × 10 pitch

X axis ballscrew diameter

63 mm (2.48") × 10 pitch

Ballscrew type

Class 3 double nut

Ballscrew mounting type

Pre-loaded, double anchored

X-Z servo motor HP

X: 9 HP, Z: 9 HP

Feeds
Specification

Value

Rapid traverse rate X, Z

472, 394 IPM

Cutting feed rate

0.01–197 IPM

Positioning accuracy

+/- .0003" full stroke

Repeatability

+/- .0002"

Options:

Chip Conveyor

Description:

Pre-owned YOU JI YV1200ATC 2007 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Arizona. This YOU JI CNC Lathe is available for a limited time. Get a quote today on this YV1200ATC before it's gone.
