Machine Overview

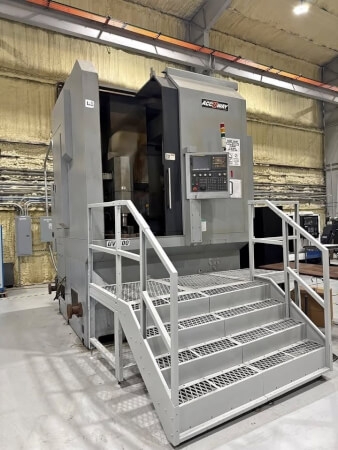

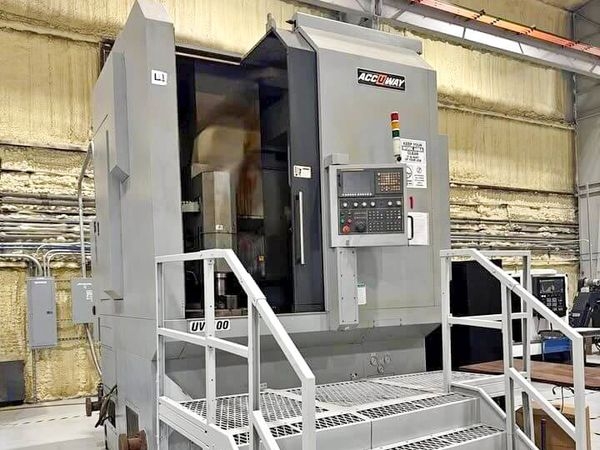

This 2013 ACCUWAY UV100 is a high-performance CNC machine designed for precise and complex tasks. It comes with Live Tooling, making it a versatile choice for various machining needs.
The machine has a Swing Over Bed of 43.30 inches, allowing ample room for sizeable workpieces. It features a Max Turning Diameter of 39.37 inches and a Max Turning Length of 27.55 inches, making it suitable for a wide range of parts.
With a Spindle Speed of 1200 RPM and a Spindle Taper of BT50, this machine delivers reliable processing capabilities. The Spindle Nose is an A2-15, complemented by a 40-inch Chuck Diameter, allowing for secure and stable work holding. The X Axis measures 30.11 inches, while the Z Axis measures 31.49 inches. It is equipped with a 12-station turret to facilitate a variety of tool applications.
The machine weighs 37,500 lbs, offering a solid foundation for accuracy and precision in production. It's equipped with a Fanuc Oi-TD Control, ensuring smooth operation with straightforward programming. Additional features include a Auto Strong V-240 40 (3) Jaw Chuck and Stainless Steel Way Covers.
This model also boasts a RJ-45 interface for seamless connectivity and comes with a heat exchanger for the electric cabinet. The 10.4" Colored LCD monitor provides clear visual data, and it includes a Hydraulic power supply unit and a Lubrication system to keep the machine running smoothly.
A 4-bar coolant system cools during operation, while a three-color warning light enhances operational safety. The hydraulic chuck and cylinder support various clamping needs, supported by a Single chain type chip conveyor and chip cart for efficient chip management. The tool kit further aids the operational flexibility of the machine.
This listing offers a 2013 ACCUWAY UV100 with less than 1000 operational hours. For more details, please refer to the link provided or contact us for a formal quote.
