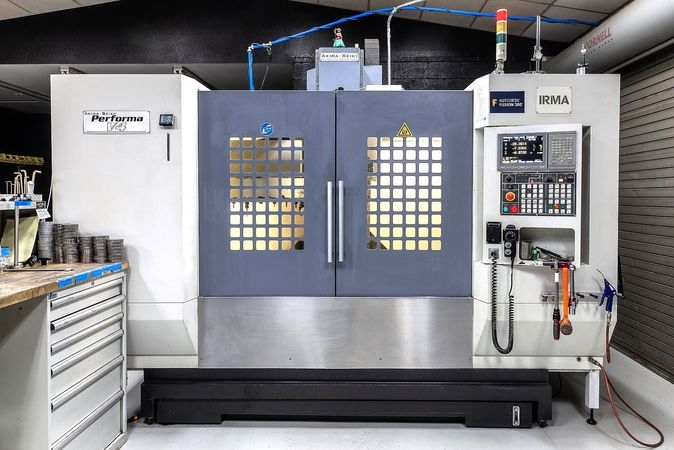

AKIRA SEIKI PERFORMAV4 CNC Mill

X Axis 41.3"
Y Axis 19.8"
Z Axis 22"
# Axis 3
Power 30 hp
RPM 10,000 RPM
Taper CT40
# ATC 21
Table-W 47.2"
Table-L 19"
DIMENSIONS 140" x 93" x 105"
WEIGHT 14.600 lbs

General Specifications:
Axes Movement:
X-Axis, Table In Longitudinal Movement: 41.3"
y-Axis, Saddle In Cross Movement: 21.3"
Z-Axis, Head In Vertical Movement: 22.0"
Between Spindle Nose/Table Surface: 3.0"-25.0"
Between Center Line Of Spindle To Column: 21.7"

Table
Work Surface: 47.2" x 18.9"
Maximum Table Load: 2,784 lbs
T-Slots: 5 ea. x 18 mm
Height From Floor: Approx. 35.0"

Ball Screw:
X-Axis Double Anchor / Double Nut / Constant Tension:40 mm DIA
Y-Axis Double Anchor / Double Nut / Constant Tension:40 mm DIA
Z-Axis Double Anchor / Double Nut / Constant Tension:40 mm DIA

Rapid Traverse (X & Y Axes / Z Axis): 1,575"/1,000"/min
Cutting Feedrate (X, Y, & Z Axes): 0 - 700"/min
(Can Be Overridden 0 - 150%; In 10% Increments)
Minimum Input Increment: 0001" or .001 mm
Rigid Tap RPM: 4,000 RPM

Spindle:
Cartridge Type (#40 Taper): 20 - 9,000 RPM
Spindle Motor - High Torque: 25 HP
Spindle Drive Mits: Digital
Spindle Air Blast: 80 PSI

Automatic Tool Changer:
Tool Storage Capacity: 22 Tools
Tool Change Time Tool To Tool: 5.4 Sec
ATC Actuation: Carousel In/Out
Tool Call System T-2 Digits: Random/bi-directional
Maximum Tool Diameter: 6.0"
Maximum Tool Diameter/Adjacent Slot: 3.0"
Maximum Tool Length: 13.0"
Maximum Tool Weight: 15 lbs
Tool Shank: cat-40
Retention Stud: mas-1
Spindle Orientation: electrica

Chip Removal:
Removeable Chip Basket: STD
Coolant Tank Capacity: 50 gal

Machine: 140" x 93" x 105" 14,600 lbs
Chip Pan: 99" x 18" x 14" 175 lbs
Coolant Tank: 84" x 95" x 16" 300 lbs
