Seller Needs:

$254,500

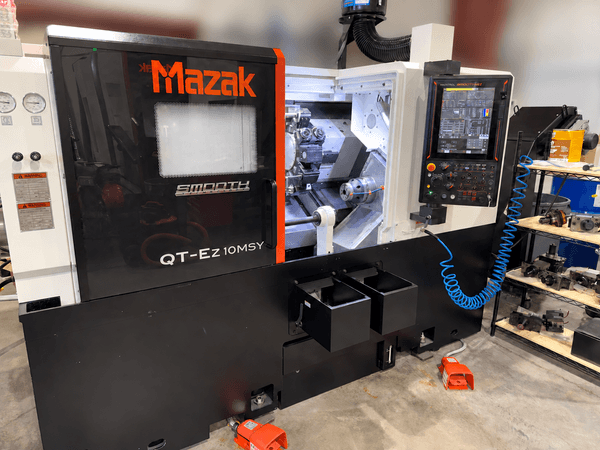

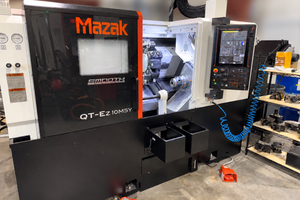

2024 MAZAK QT EZ 10MSY

ID:16184
Brand:MAZAK
Model: QT EZ 10MSY
Year:2024
Category:CNC Lathe
Location:Utah

Located In Utah

SHIPPING COST :

MAZAK QT EZ 10MSY AI Chat

Loading ...

Machine Overview

Specs:

Standard Specs
Standard Chuck Size (Main/Second) ........................ 10” / 6”
Maximum Swing......................................................... 27.4”
Maximum Machining Length ................................... 20.78”
Standard Bar Capacity............................................... 2.5”
Spindle Motor (30min rating) .................................. 20 HP
Spindle Speed............................................................. 4200 RPM
Spindle Nose............................................................... A2-6
Number of Tools......................................................... 12
Mill Spindle Motor...................................................... 7.5 HP
Mill Spindle Speed....................................................... 6,000 RPM
Travel (X/Y/Z) .............................................................. 8.5” / 4.00” / 23.75”
Feed Axis Rapid Traverse (X/Y/Z) ............................. 1181 / 394 / 1417 IPM
Second Spindle Speed................................................ 6,000 RPM
Second Spindle Motor (40% ED) ............................... 10 HP
Machine Height.........., ............................................... 67.9”
Machine Weight........................................................ 12,125 LBS

Options:

Mazak SmoothEZ
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Royal Rota Rack Parts conveyor
118 PSI high-pressure coolant system with 16 GPM flow
Lots of Live and Static Tooling (shown)
Spindle Liners - JL Berns steel Liners Sizes 2.5, 1, 1.375, 1.75
LNS Quick Load Servo 80+ bar feeder
Mist-collector Royal FX 300 with After Filter Option
Expanded 8 MB program memory
QG-52 Collet part ejector
Extended Length Bar capacity to 48 Inch Bars
$320,000 brand new

Description:

Pre-owned MAZAK QT EZ 10MSY 2024 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Mazak SmoothEZ control. This CNC Machine is currently located in Utah. This MAZAK CNC Lathe is available for a limited time. Get a quote today on this QT EZ 10MSY before it's gone.
