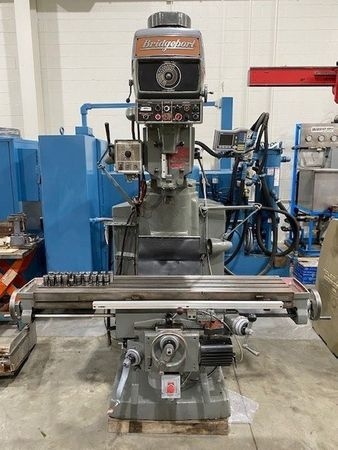

Pre-owned BRIDGEPORT SERIESII 1998 Manual and Other Machining. This Manual and Other Machining has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This BRIDGEPORT Manual...Read More
Notify Me:
Specs:
Size of T-Slot Table............11" x 58"
Longitudinal Table Travel - X-Axis............30"
Table X - Backlash............0.014"
Table Y - Backlash............0.015"
Saddle Travel - Y-Axis............15"
Quill Travel............5"
Knee Travel - Z-Axis............16"
Ram Travel............16"
Throat - Maximum............26-5/8"
Spindle Motor............4HP
Spindle Taper............Quick Change Spindle
Spindle Speeds - Variable............Low 50-450, High 450-3500 RPM
Downfeed Range............0.6-2.5 IPM
Electrics............208V/3Ph/60Hz
Approximate Weight............6,300 Lbs.
Longitudinal Table Travel - X-Axis............30"
Table X - Backlash............0.014"
Table Y - Backlash............0.015"
Saddle Travel - Y-Axis............15"
Quill Travel............5"
Knee Travel - Z-Axis............16"
Ram Travel............16"
Throat - Maximum............26-5/8"
Spindle Motor............4HP
Spindle Taper............Quick Change Spindle
Spindle Speeds - Variable............Low 50-450, High 450-3500 RPM
Downfeed Range............0.6-2.5 IPM
Electrics............208V/3Ph/60Hz
Approximate Weight............6,300 Lbs.
Options:
Acu-Rite Vue 2 Axis DRO
4J Head Adjustable 90 Degrees Left to Right, 30 Degrees Front to Back
Built-In Power Quill Feed
Power Feed to Knee
Power Feed Table
Bijur Electric Lubrication System
4J Head Adjustable 90 Degrees Left to Right, 30 Degrees Front to Back
Built-In Power Quill Feed
Power Feed to Knee
Power Feed Table
Bijur Electric Lubrication System
