Machine Overview

Specs:
Bar Capacity: 2.047"
Chuck Size: 8"
Spindle Speed: 4,500 RPM
Spindle Motor: 15 HP
X Axis Travel: 6.9"
Z Axis Travel: 20.47"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 10 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 11"
Max Turning Length: 20"
Max Swing: 18.9"
Spindle Mount: A2-6
Hole Thru Spindle: 2.44"
Tool Size: 3/4 X 3/4
Tool Size Round: 1.25
Tailstock Taper MT#4
Dimensions: 113" x 69" x 63"
Weight: 8,470 LBS
Options:
Chip Conveyor
Tailstock
Fanuc Series Oi-TC Control
Description:

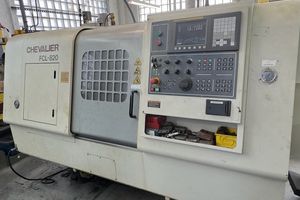

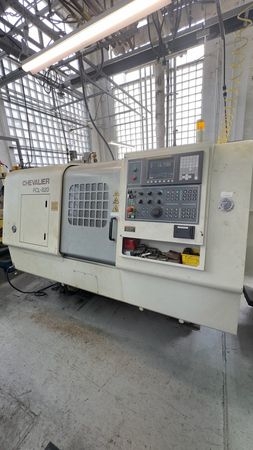

Greetings potential buyers, On offer here is a pre-owned 2007 CHEVALIER CNC lathe, which is sure to add valuable capability to any machine shop or manufacturing setting. Acquired from its original location of Southern New Jersey, this machine stands as proof of CHEVALIER's reputation for durable and high-performance products. The machine boasts a total power-on time of 12,941 hours, of which it has had only 800 hours of cutting time. This low cutting time is a testament to the machine's effective design and longevity. The machine comes with several notable upgrades, such as a Chip Conveyor, Tailstock, and a Fanuc Series Oi-TC Control system. The control system, specially designed by Fanuc, will provide users with an intuitive and easy-to-use interface for programming and managing the lathe operations. Specifications for this lathe include a bar capacity of 2.047”, an 8” chuck size, and a maximum spindle speed of 4,500 RPM. For those requiring a robust spindle motor, this lathe provides a 15 HP motor. The X axis has a travel range of 6.9", while the Z axis has a slightly larger range, topping out at 20.47". This enables the lathe to handle a variety of machining tasks. This lathe is also designed for quick operations, boasting a rapid rate for both the X and Z axes of 1,181 IPM. The turret cassette can house a total of 10 tools, allowing for versatile machining operations. The machine’s capacity for sizable workpieces is noteworthy, with a max turning diameter of 11", max turning length of 20", and a max swing of 18.9". Other parameters to note include a spindle mount of A2-6, a hole through spindle of 2.44", as well as a tool size of 3/4 X 3/4 and tool size round of 1.25. The machine's tailstock taper is MT#4. Dimension-wise, this LATHE requires a floor space of 113" x 69" x 63" and weighs 8,470 LBS. Potential buyers should take into account the necessary space required for the machine within their premises. In sum, this CHEVALIER product presents a valuable asset to any operation requiring high precision and control. It brings all the quality engineering and design CHEVALIER is known for and is available for immediate purchase and integration into a new production environment.
