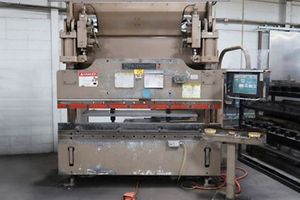

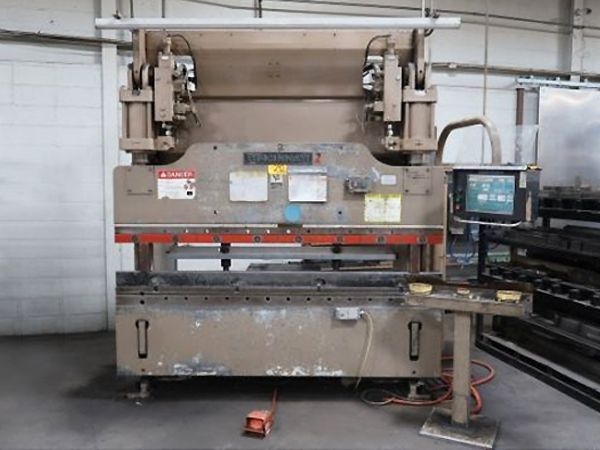

2011 CINCINNATI FORMMASTERII

ID:14489
Brand:CINCINNATI
Model: FORMMASTERII
Year:2011
Category:Press Brake
Location:Ohio

Located In Ohio

SHIPPING COST :

CINCINNATI FORMMASTERII AI Chat

Loading ...

Machine Overview

Specs:

SPECIFICATIONS
TONNAGE 90 T
OVERALL LENGTH 8'
BETWEEN HOUSINGS 6.5'
STROKE 8"
CONTROL CNC (FORM MASTER II)
DIMENSIONS 96” x 66” x 122” H
WEIGHT 13300 Lbs.
8' CINCINNATI-INC 90-TON FORM MASTER II CNC
HYDRAULIC PRESS BRAKE
Retrofit 2011, , Model 90FMIIX6FT
Series Form Master II
EQUIPPED WITH:
Pendant Mounted Programmable CNC Back Gauge (Retrofitted 2011)
Pedestal Mounted Palmbutton Operator Station
3-Position Footswitch
CATALOG SPECIFICATIONS:
Tonnage Capacity 90 TON
Overall Length of Bed and Ram 8'
Distance Between Housings 6'6.5"
Bending Capacity Over 2" V-Die 5' x 1/4"
Stroke Length, Maximum 8"
Closed Height 7"
Throat Depth 7"
Ram Speed, Approach/High 380 IPM
Ram Speed, Forming/Variable 1 to 120 IPM
Ram Speed, Return/Variable 1 to 405 IPM
Motor, Horsepower 25 HP
Overall Dimensions, H x W x D 10'2" x 8' x 5'6"
Weight, Approximately 13,300 Lbs.

Description:

Pre-owned CINCINNATI FORMMASTERII 2011 Press Brake. This Press Brake has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Ohio. This CINCINNATI Press Brake is available for a limited time. Get a quote today on this FORMMASTERII before it's gone.
