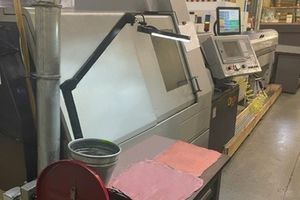

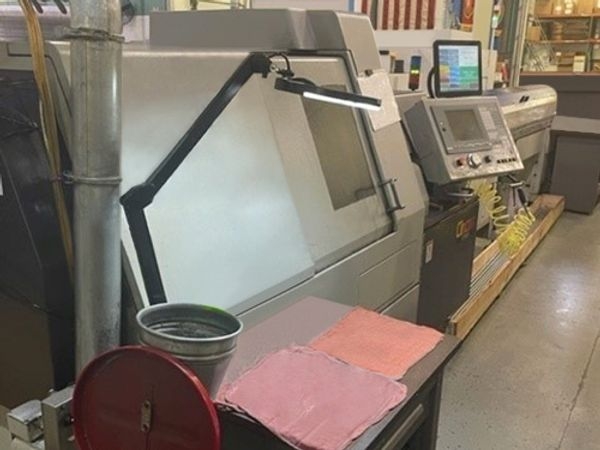

2003 CITIZEN M20

Bar Capacity: 0.787?
Spindle Speed: 8,100 RPM
Max Turning Length: 12.6?
Maximum Machining Length: 12.6? / 320 mm
Main Spindle Speeds: 200 – 8,100 RPM
Back Spindle Speeds: 150 – 7,200 RPM
Rotary Tool Speeds: 250 – 5,000 RPM Main Slide
Back Spindle Max Chucking Diameter: 20 mm / .787?
Turning Tools: 5 static
Rotary (Live) Tools: 3 Live on Main Slide
Rapid Traverse (X/Y/Z): 590 / 708 IPM
Main Spindle Drive: 3 HP
Back Spindle Drive: 1 HP
Rotary Tool Drive: .54 HP
Cutting Tool Shank/Sleeve Size: 13 X 13 mm
Main Spindle Indexing: Full C-Axis (.001 degree)
Sub-Spindle Indexing: 15 Degree Increments
Turret Capacity: 10 Stations (Live)
Turret Live Tool Speed: 320 – 6,300 RPM

Tool Presetter
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
High Pressure Coolant
Iemca Boss Barfeeder
