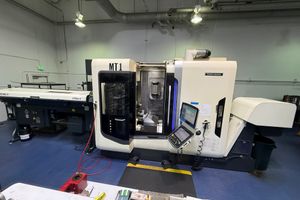

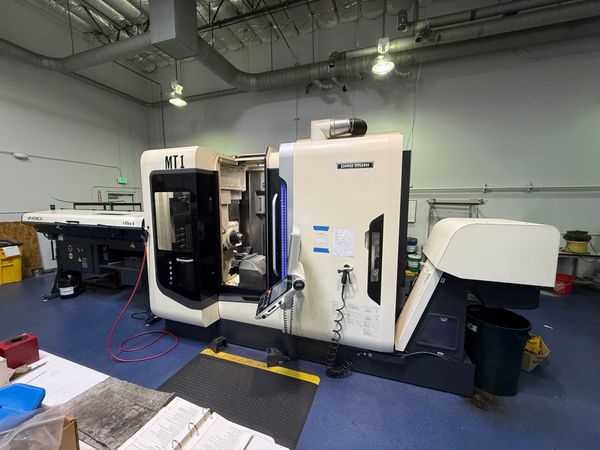

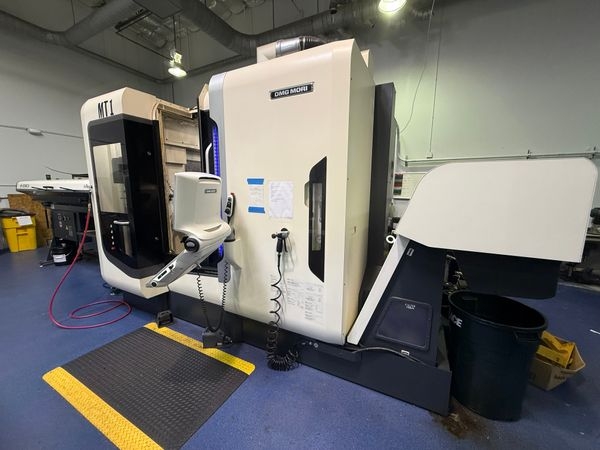

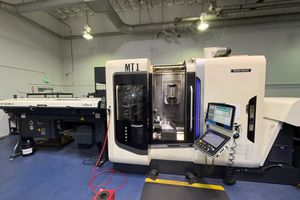

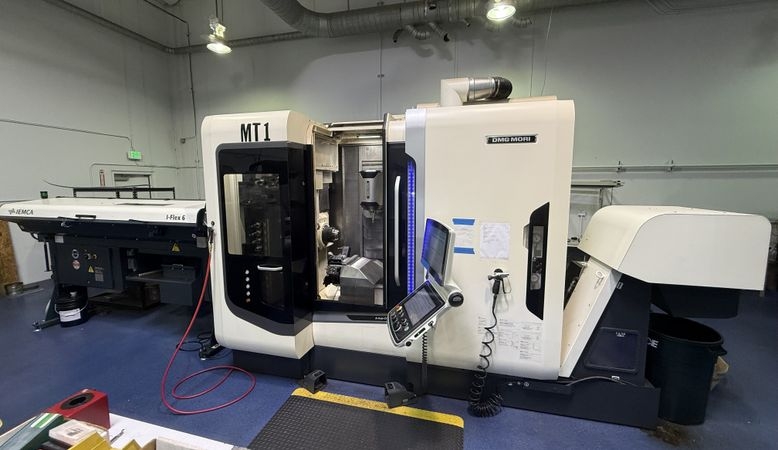

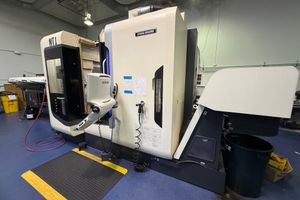

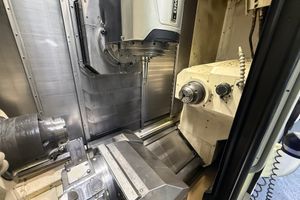

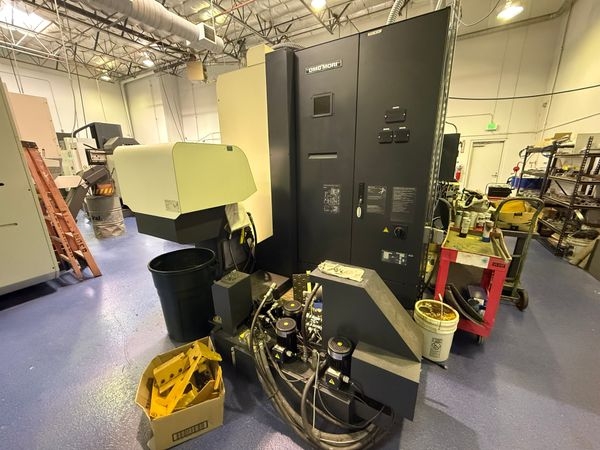

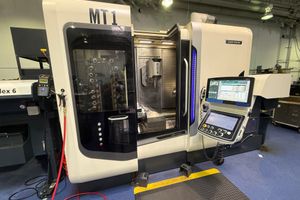

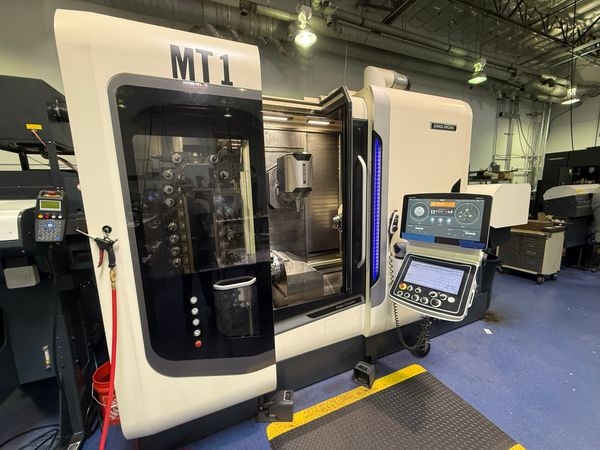

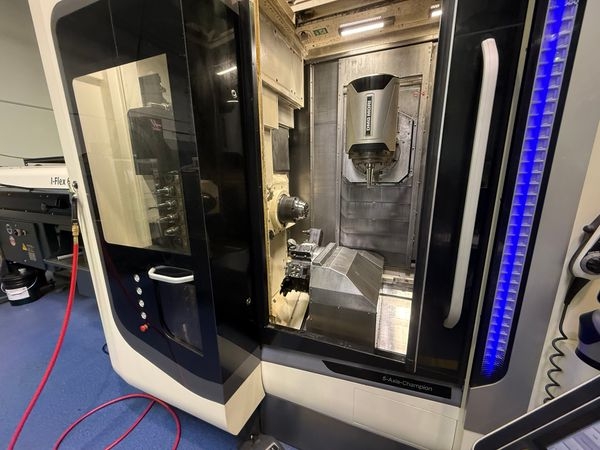

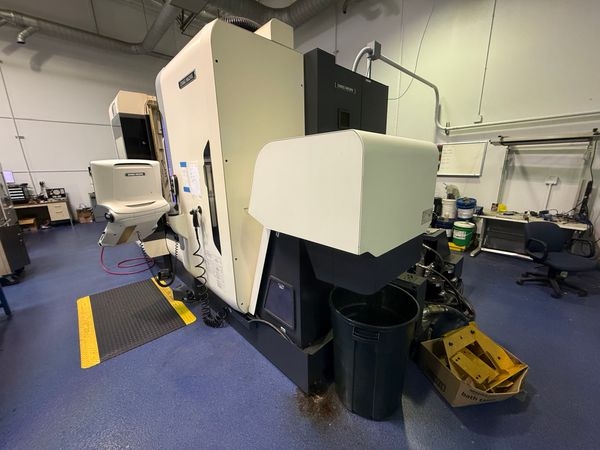

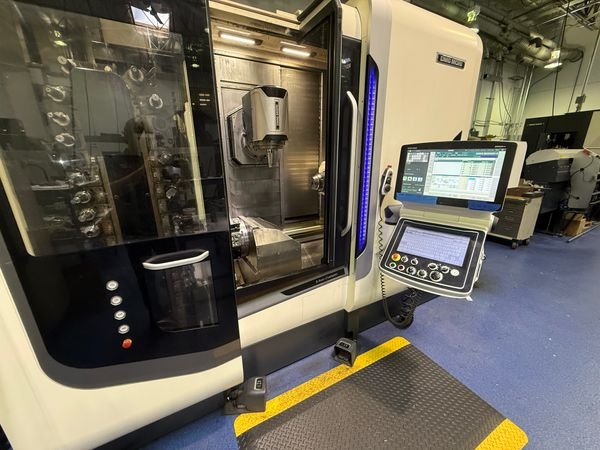

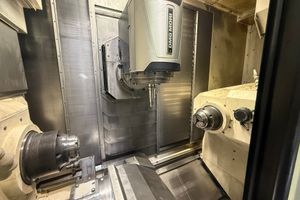

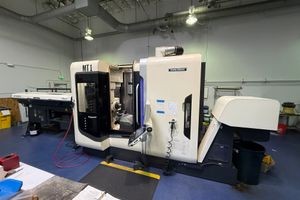

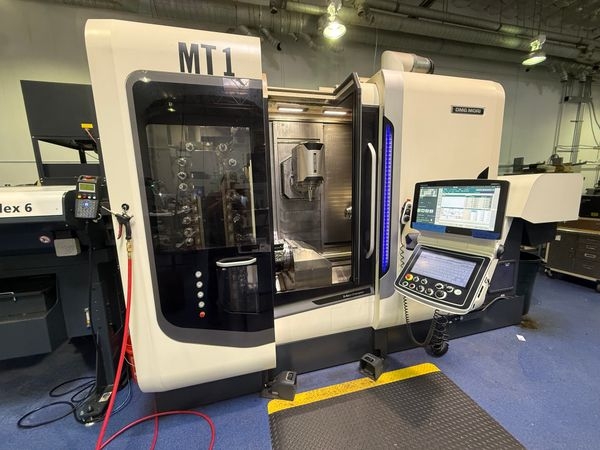

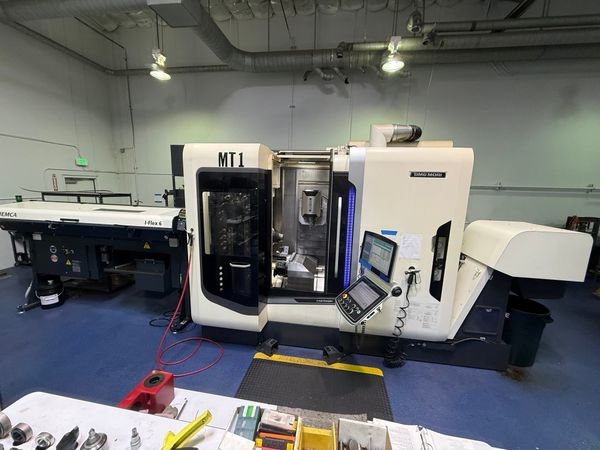

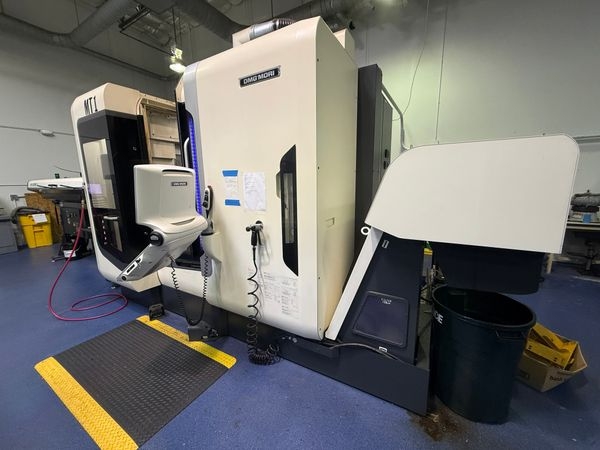

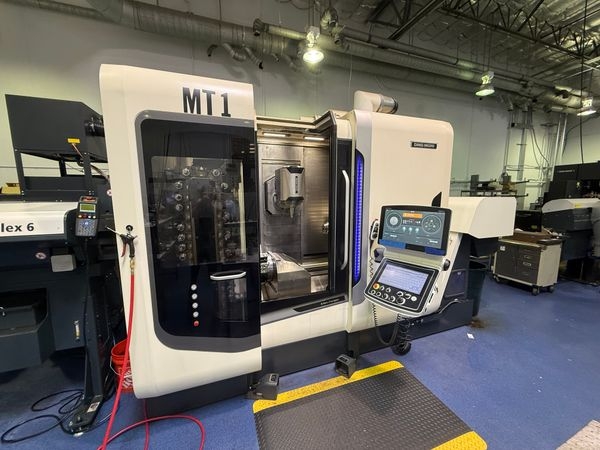

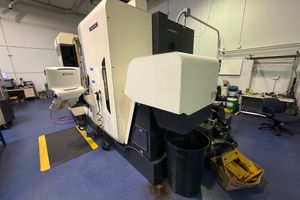

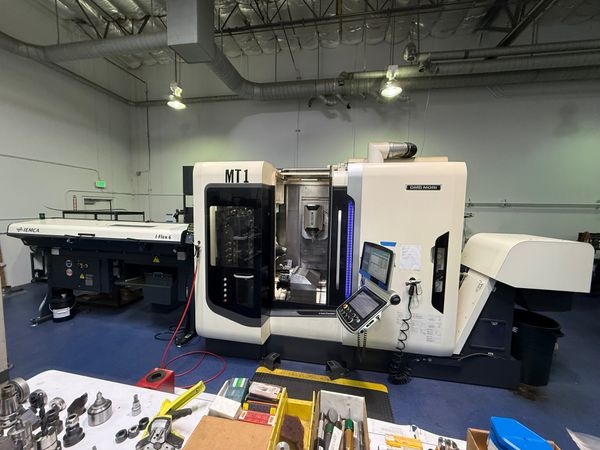

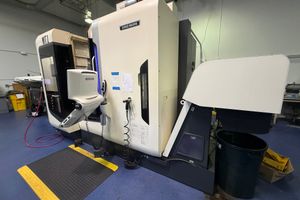

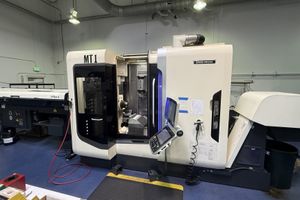

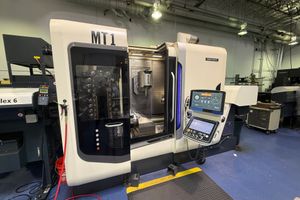

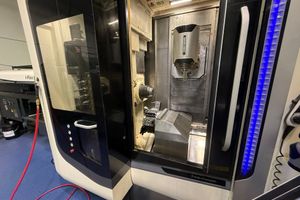

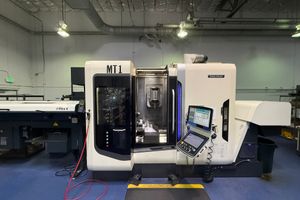

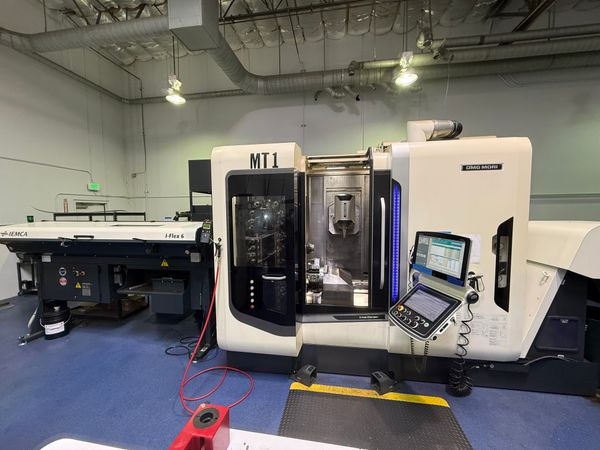

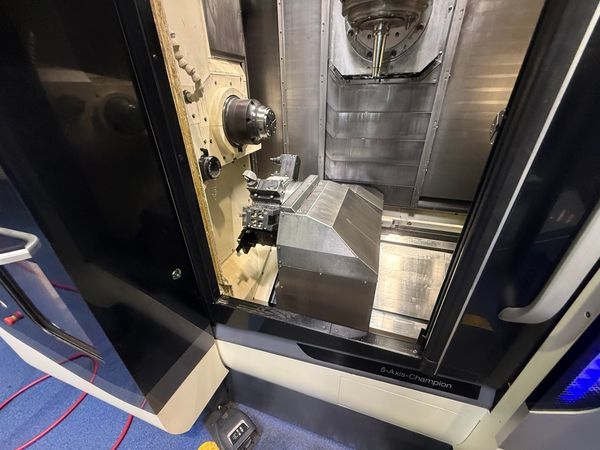

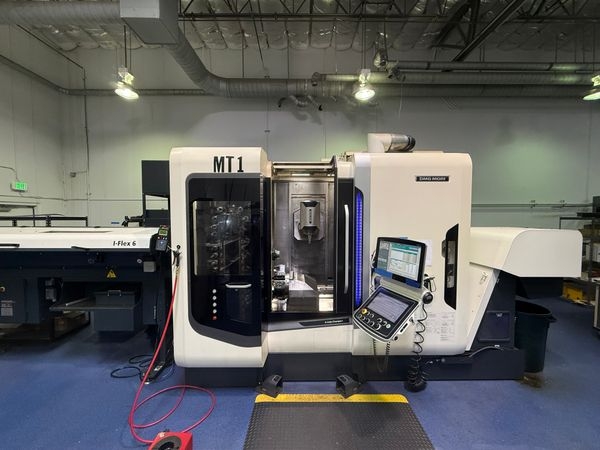

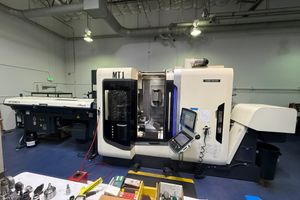

DMG MORI SEIKI NTX1000SZM CNC Lathe

Bar Capacity: 2.56"
Chuck Size: 8"
Spindle Speed: 5 RPM
Spindle Motor: 60 HP
X Axis Travel: 17.9"
Z Axis Travel: 31.5"
Turret Tools: 38 Station
Max Turning Dia: 16.9"
Max Turning Length: 31.5"
Max Swing: 17.7"
Y Axis Travel: 8.3"

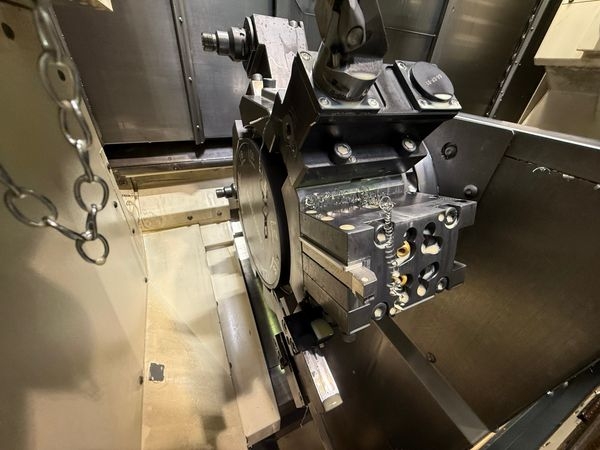

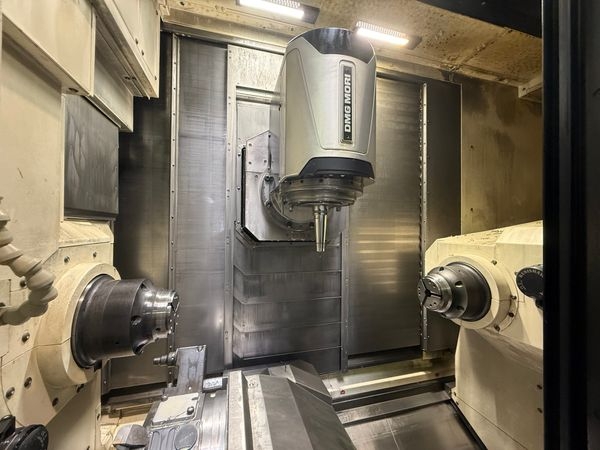

B Axis Milling Speed: 20,000 RPM
B Axis Rotation: -30/+240 Degrees

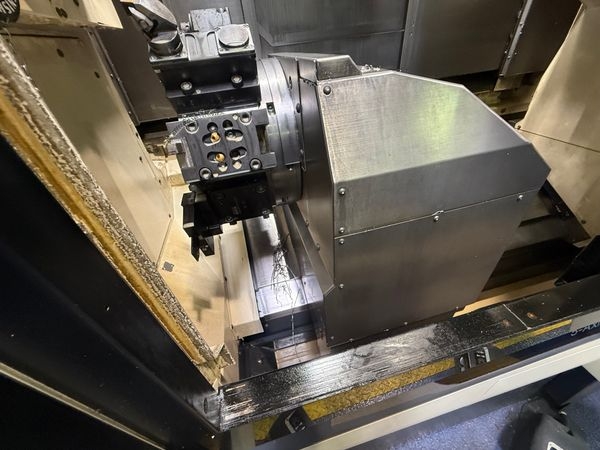

Lower Turret Positions: 10
Lower Turret Milling Speed: 10,000 RPM
Sub Spindle Speed: 5,000 RPM
Weight: 22,046 LBS

CELOS F31iB5
Chip Conveyor
Tool Presetter
Bar Feeder

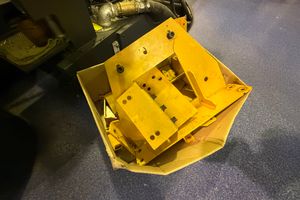

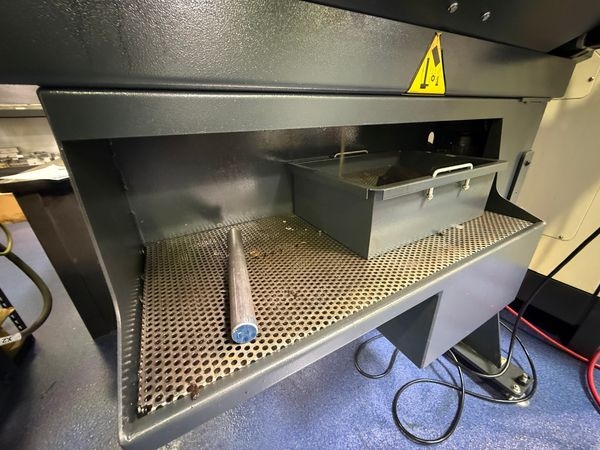

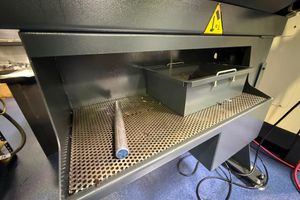

Parts Catcher
Live Tooling

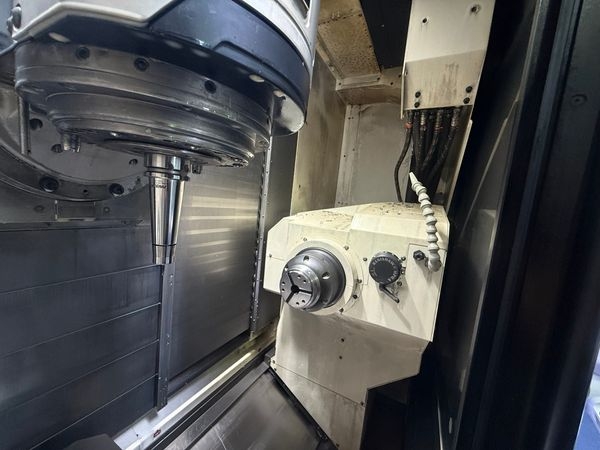

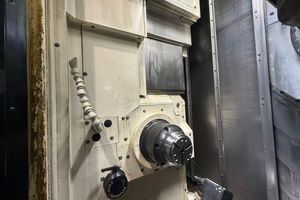

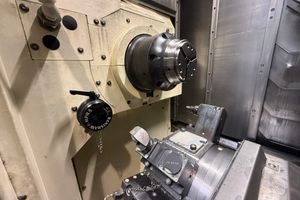

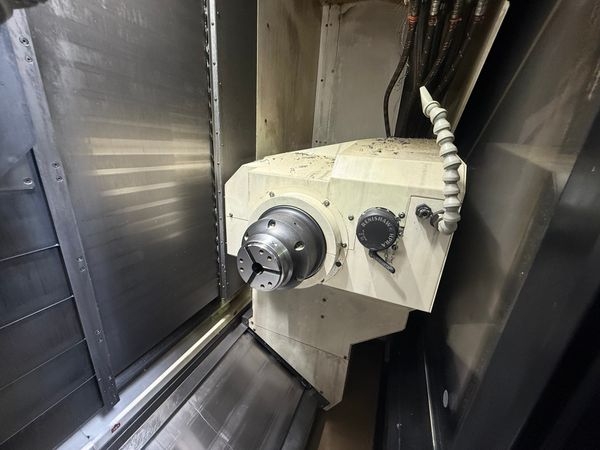

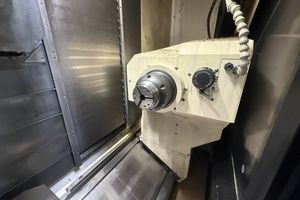

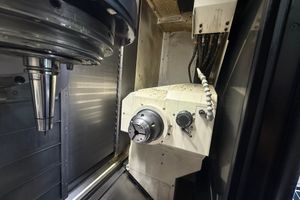

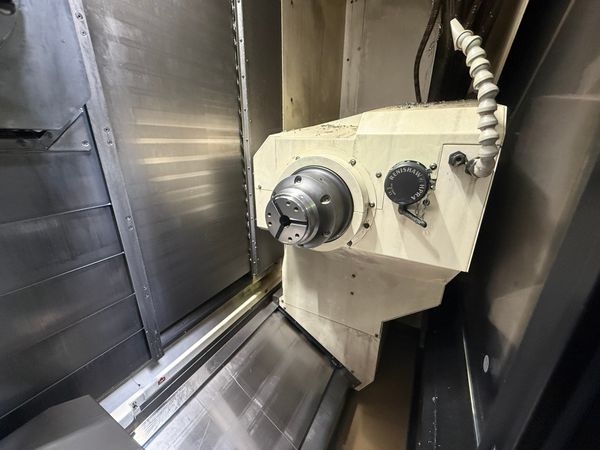

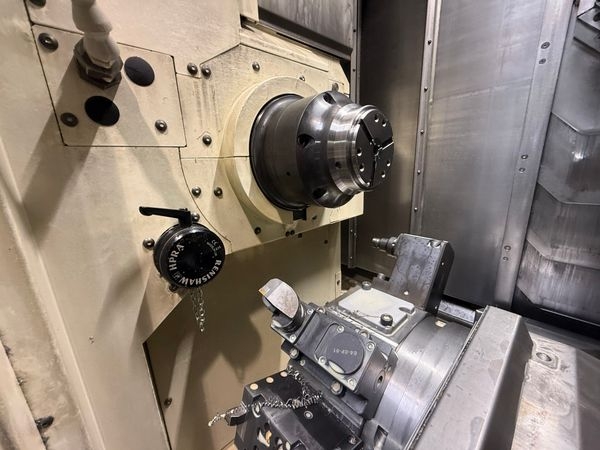

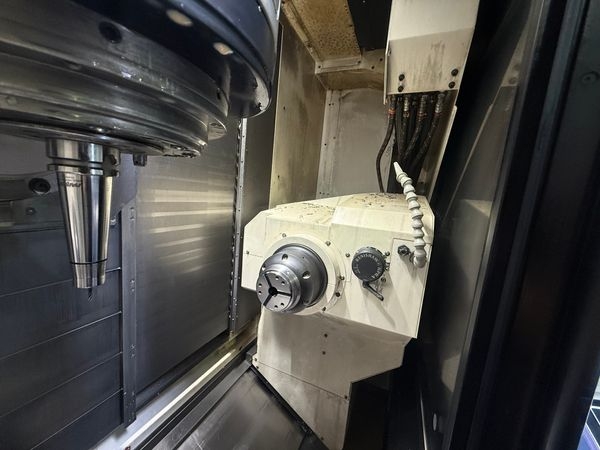

Sub Spindle
Y Axis
5 Axis

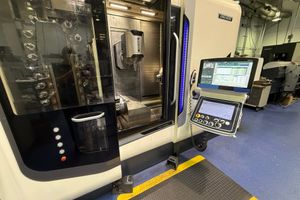

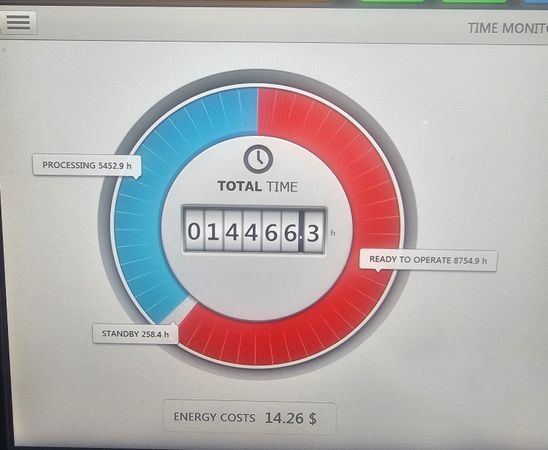

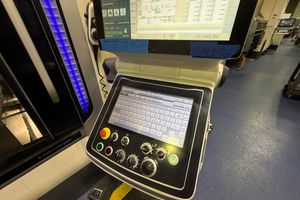

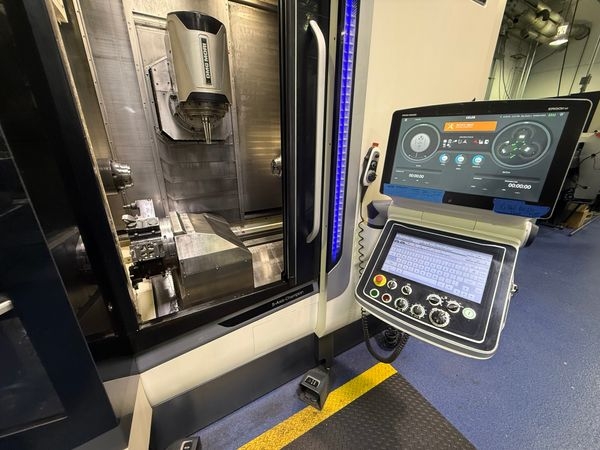

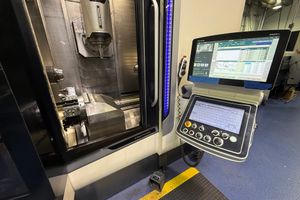

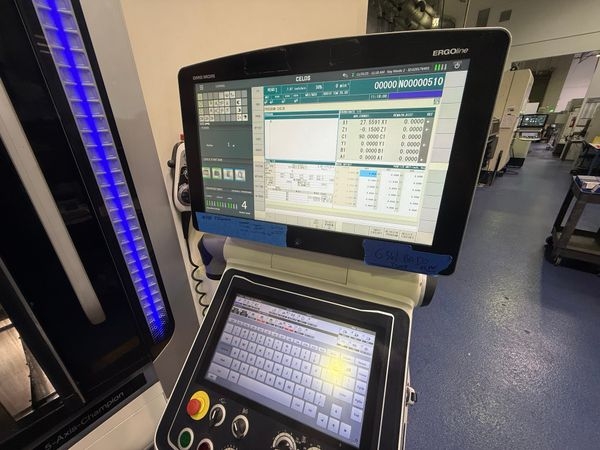

CELOS F31iB5 CNC Control

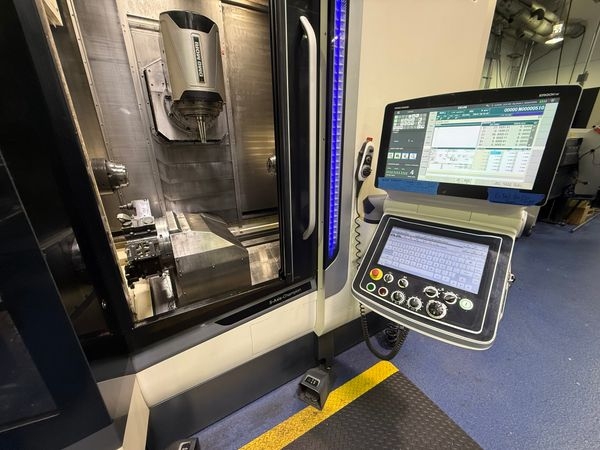

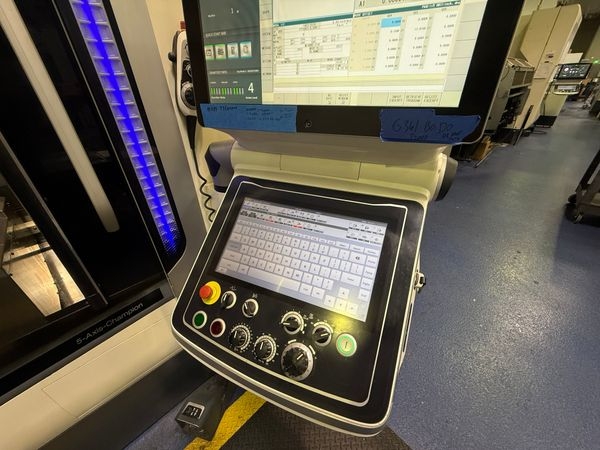

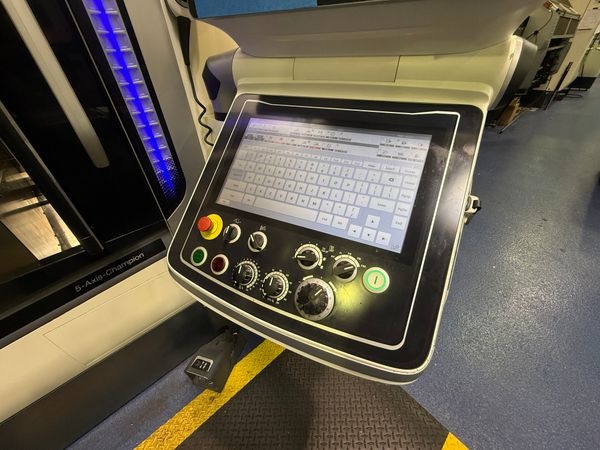

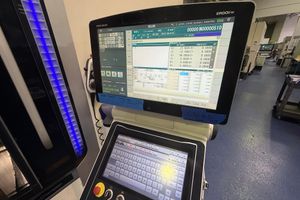

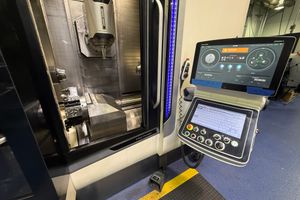

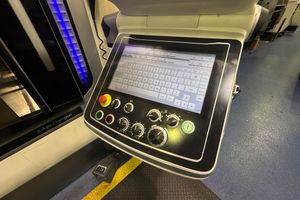

CELOS ERGOline Touch

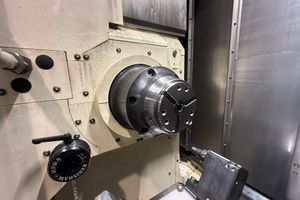

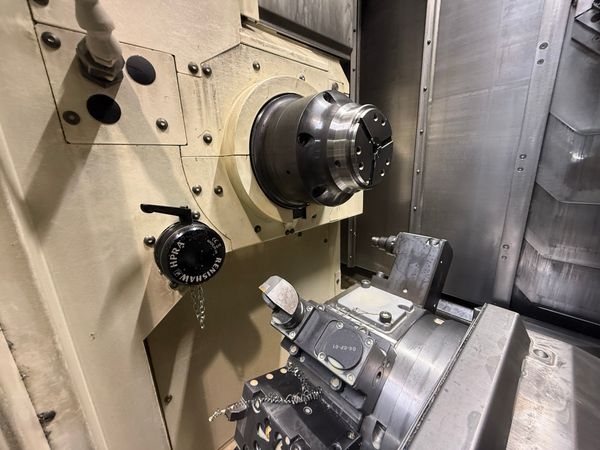

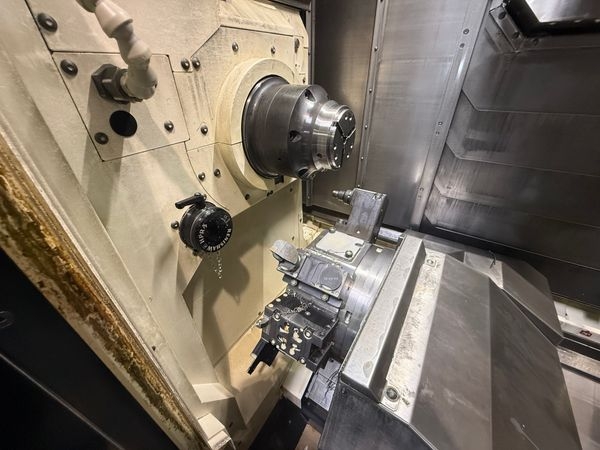

Kitagara 8" Hollow Chuck BB208A621

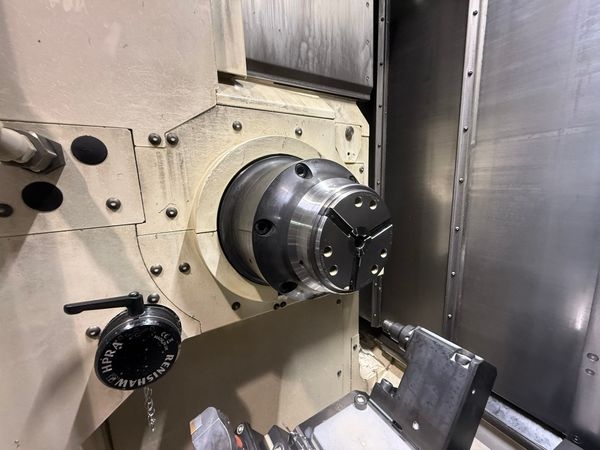

Kitagawa 8" Hollow Chuck B208A521
HSK-A50
Tool Spindle Full Indexing Specifications

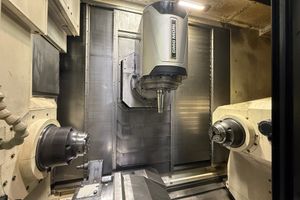

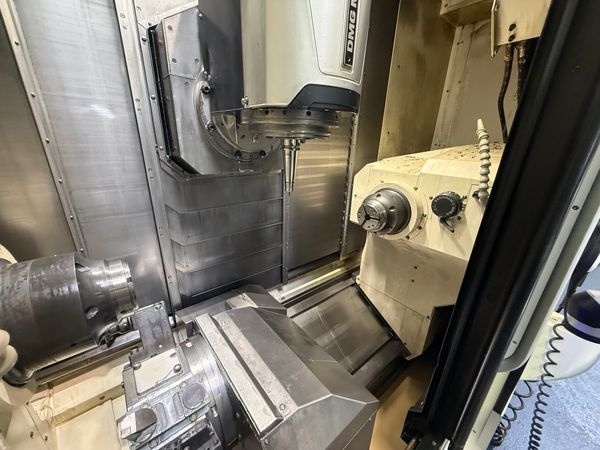

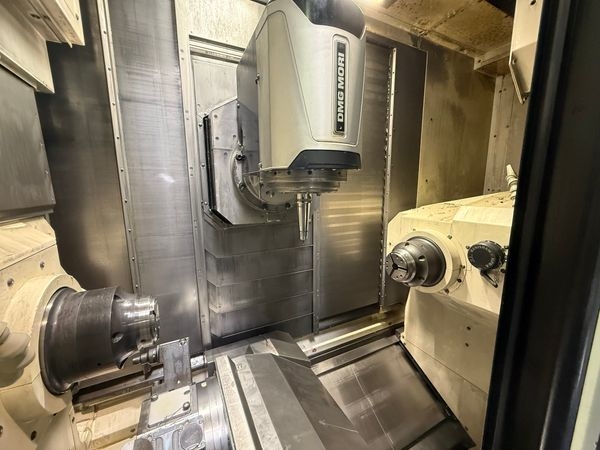

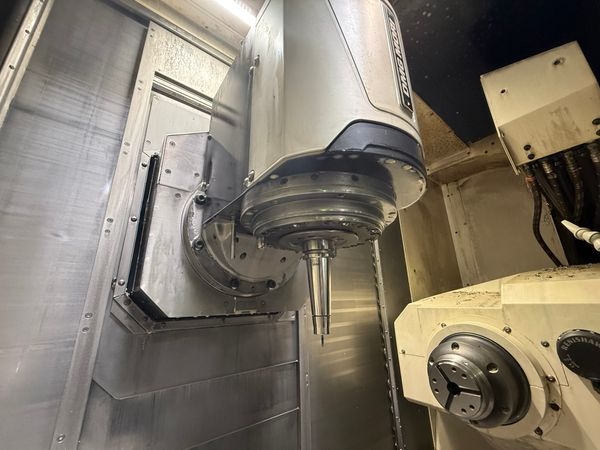

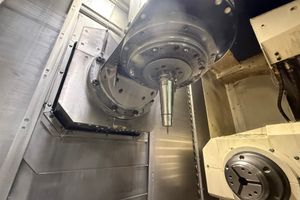

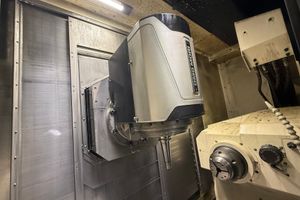

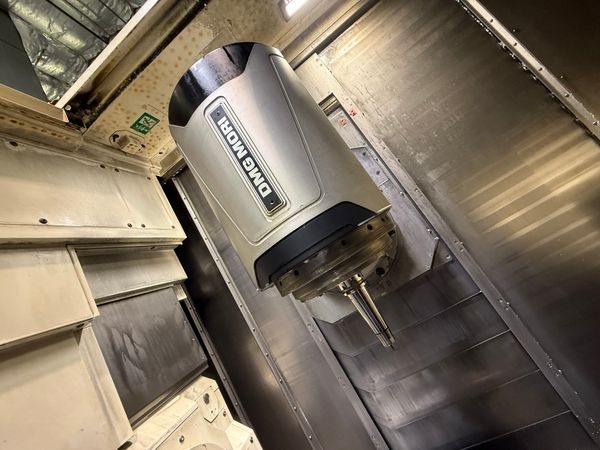

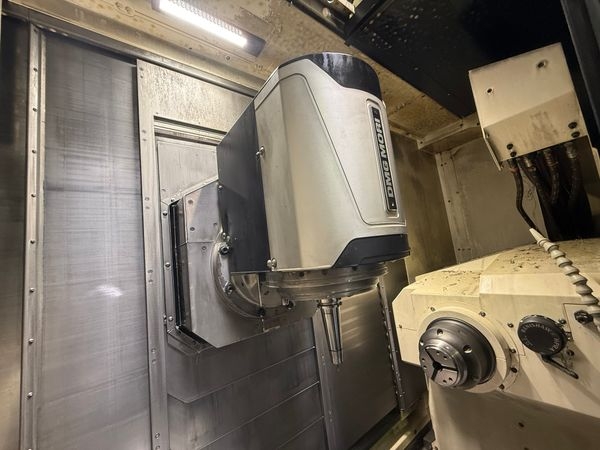

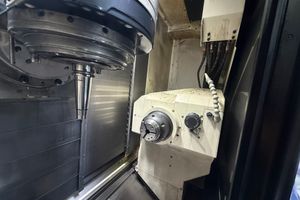

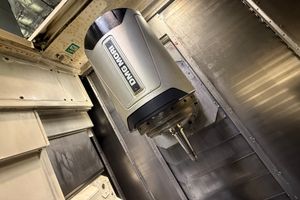

High-Speed Tool Spindle, 20,000 RPM

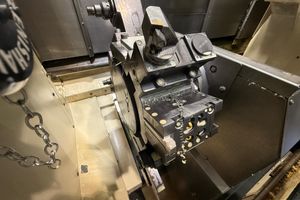

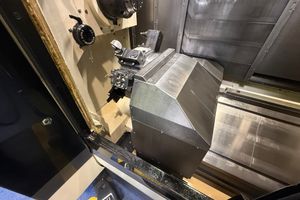

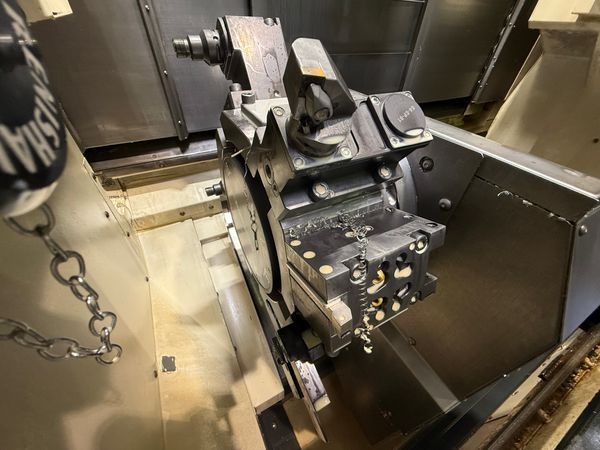

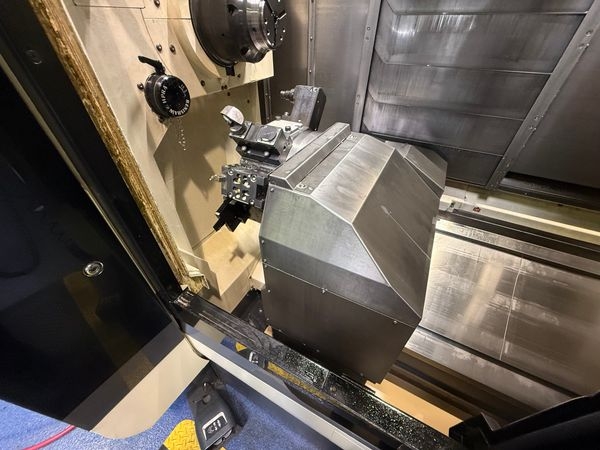

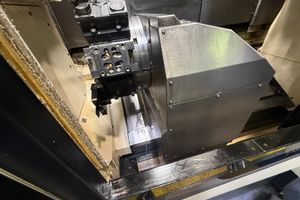

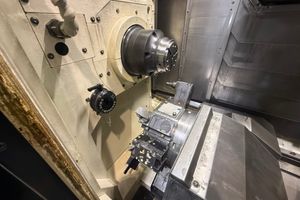

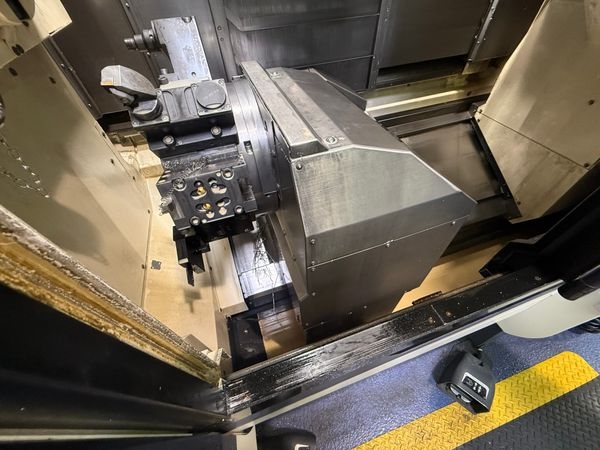

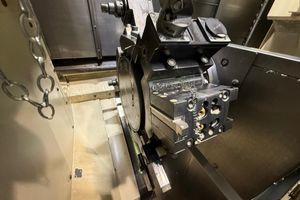

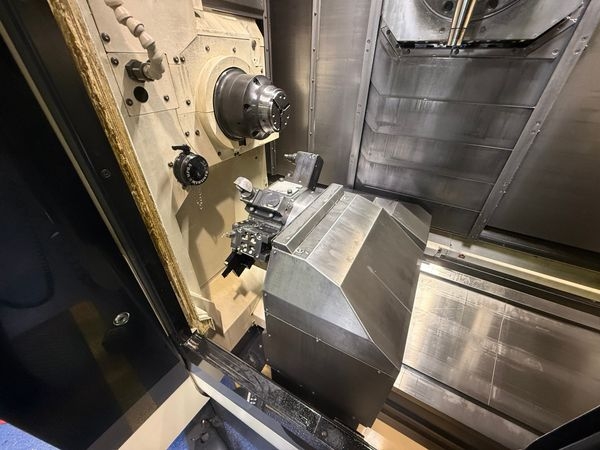

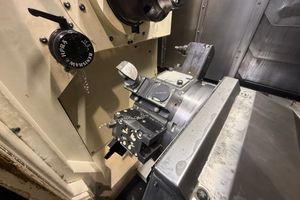

10 Station Bolt-Tightened Turret (10,000 RPM Milling)

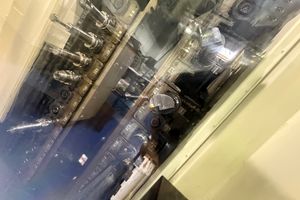

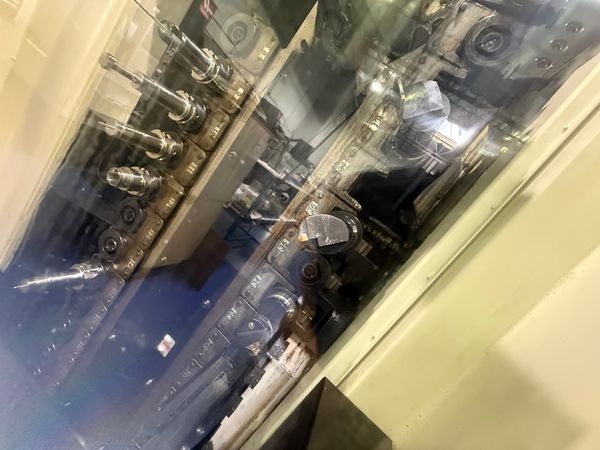

Tool Storage Capacity 38 Tools
Chip Conveyor (right discharge, hinge type + drum filter type)
Coolant Gun
Coolant Float Switch (lower limit detection)
Chuck Top Coolant for Main Spindle

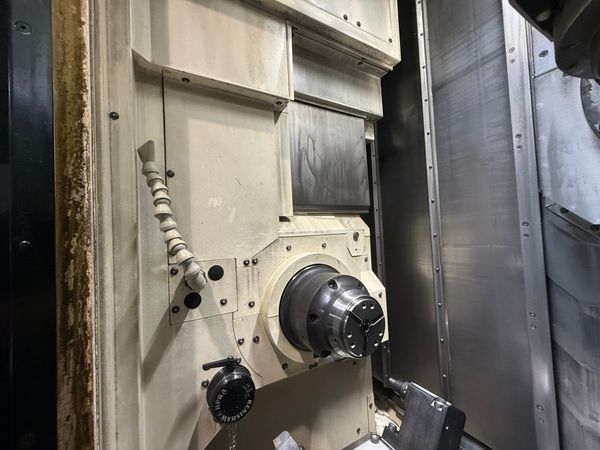

Chuck Top Coolant for Counter Spindle
Air Blow for Chuck (Counter Spindle)

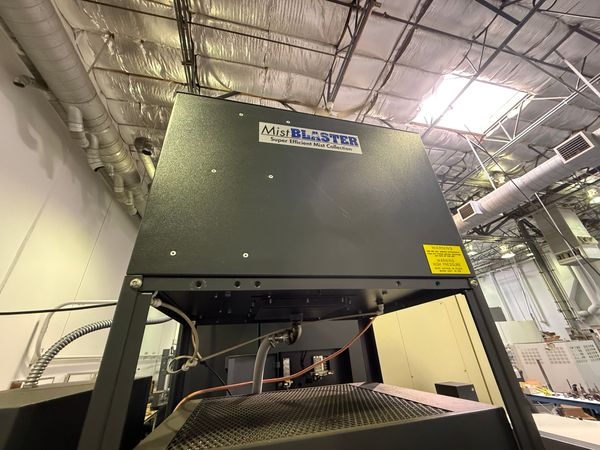

Mist Collector Interface
Oil Skimmer

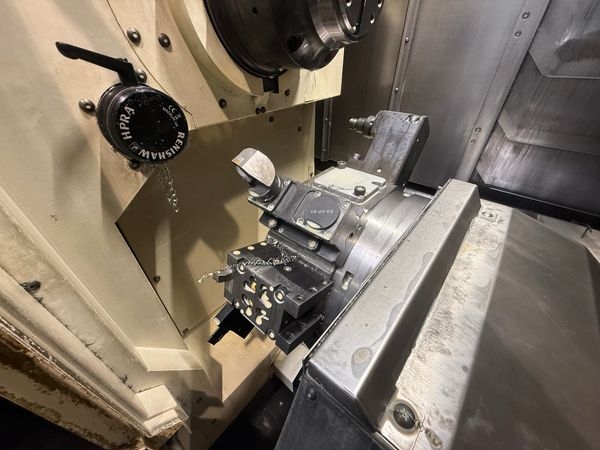

Manual In-Machine Tool Presetter
Automatic Door
EtherNet/IP Interface
Robot Interface
Safety Fence Interface
Bar Feeder Interface
Multi Dry Filter
10 External M-Codes

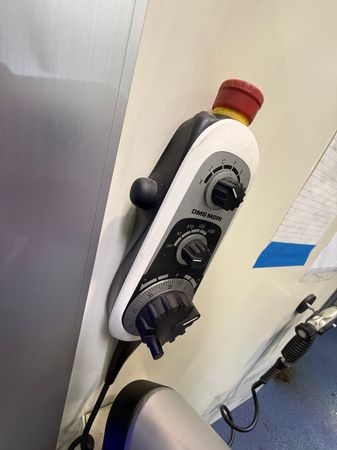

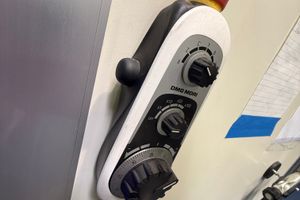

Manual Pulse Generator
Addition of Optional Block Skip
Tool Offsets 240 Sets in Total
X-Axis Direction JIS / ISO Standard
Royal 44097 QG-65

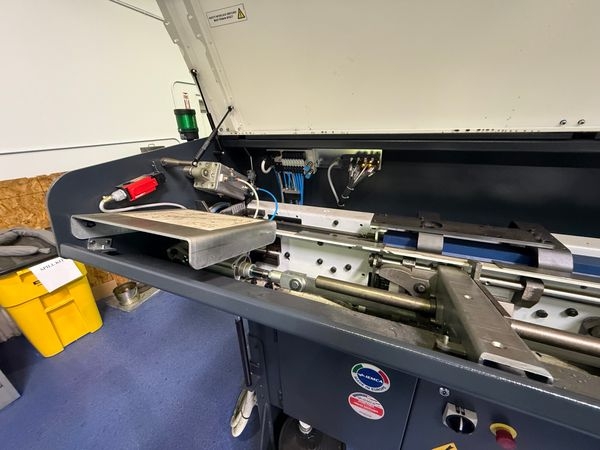

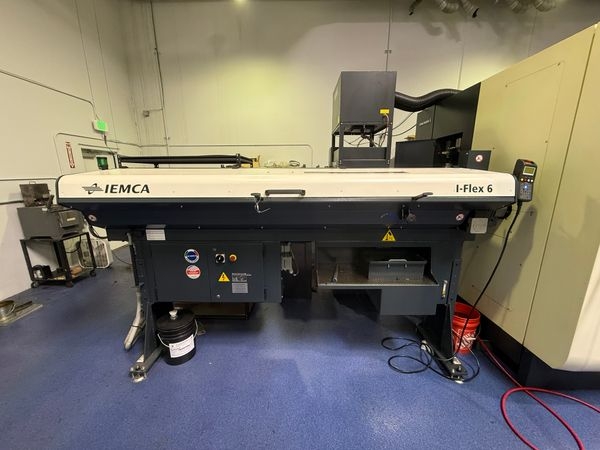

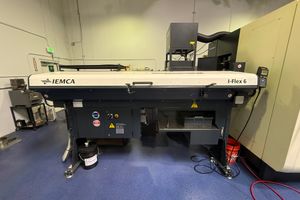

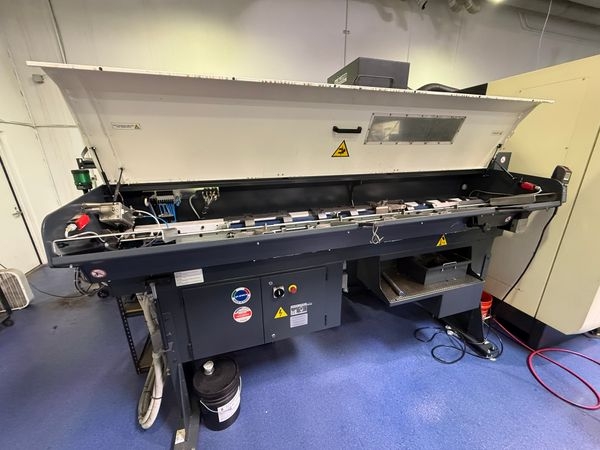

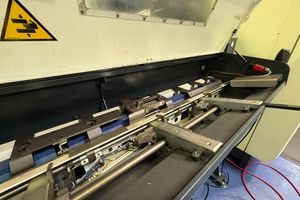

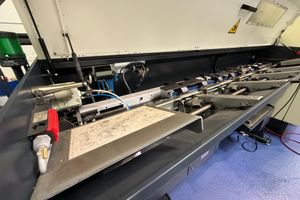

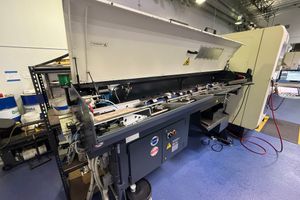

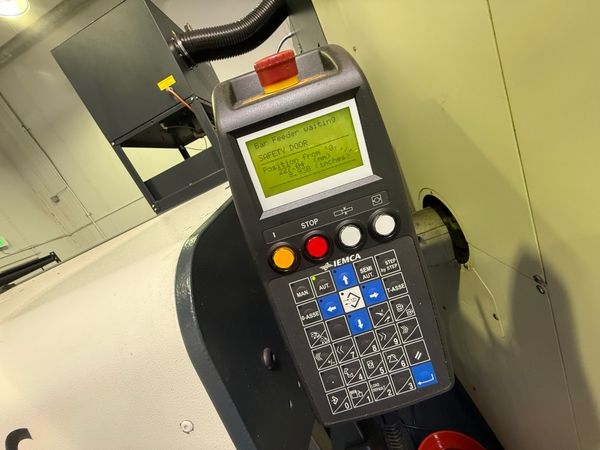

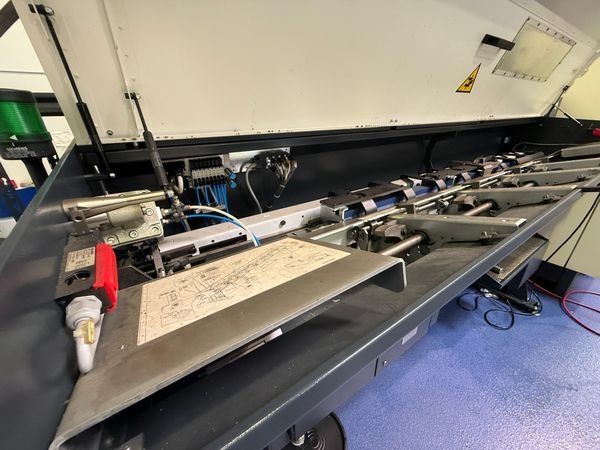

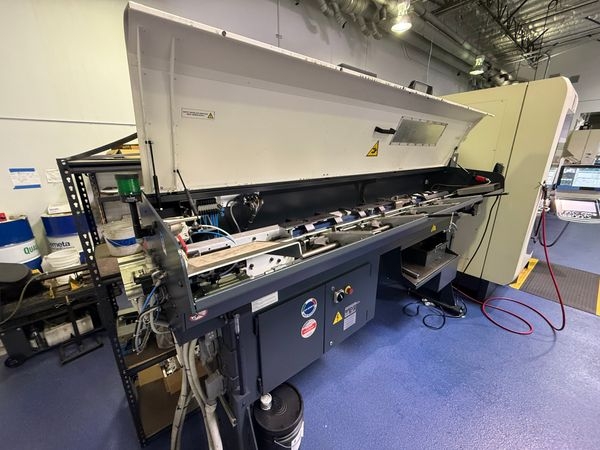

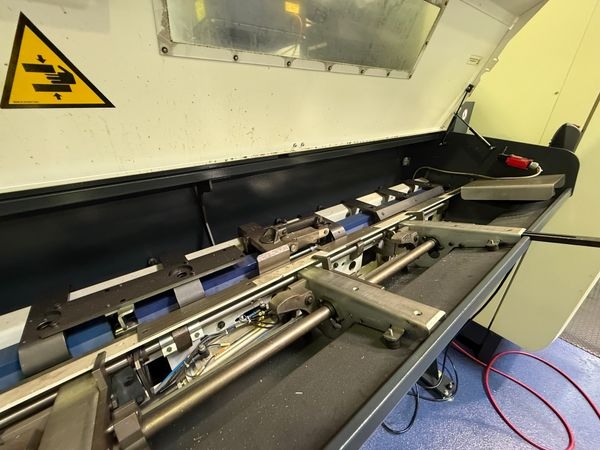

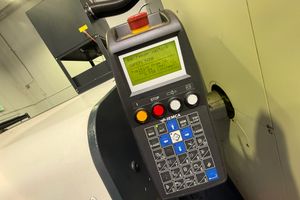

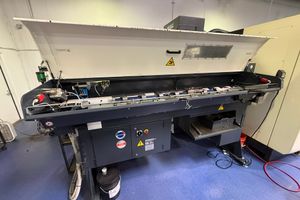

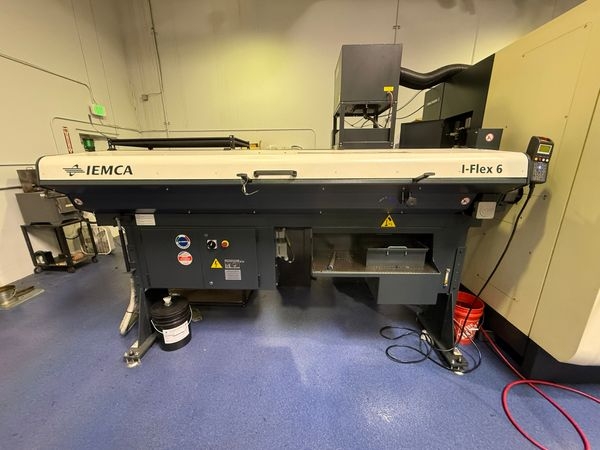

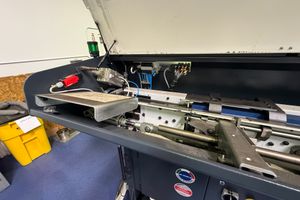

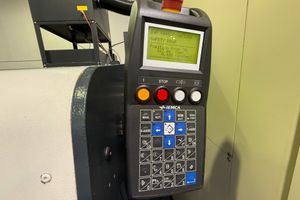

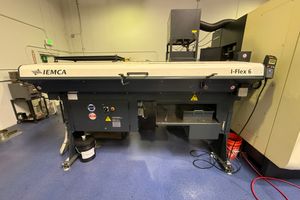

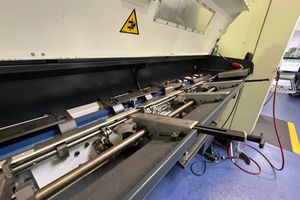

IMECA Prodigy 552/6' with 3 complete Channel Sets and 2 Spindle Liners
IMECA Axial Shift Device

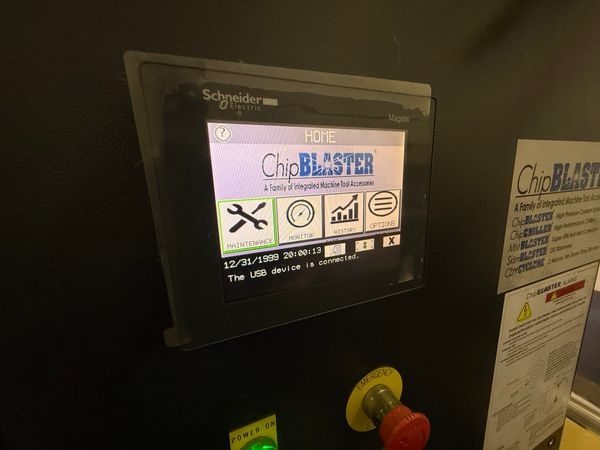

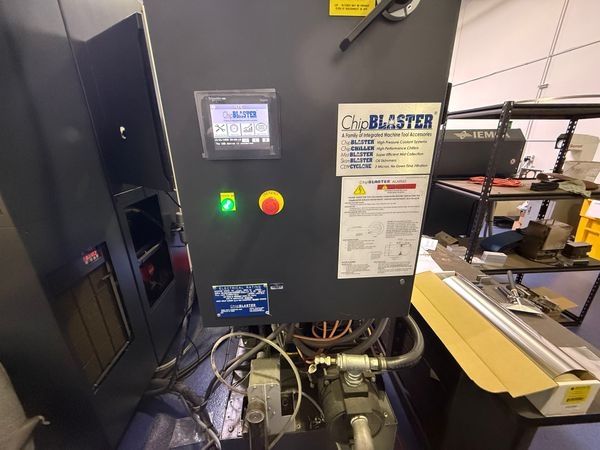

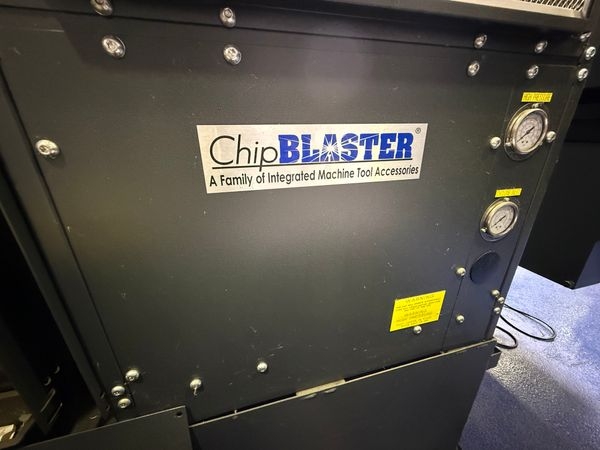

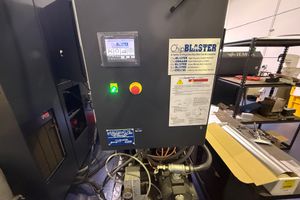

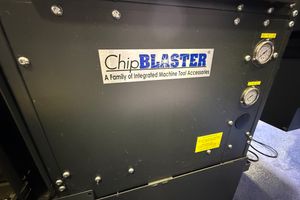

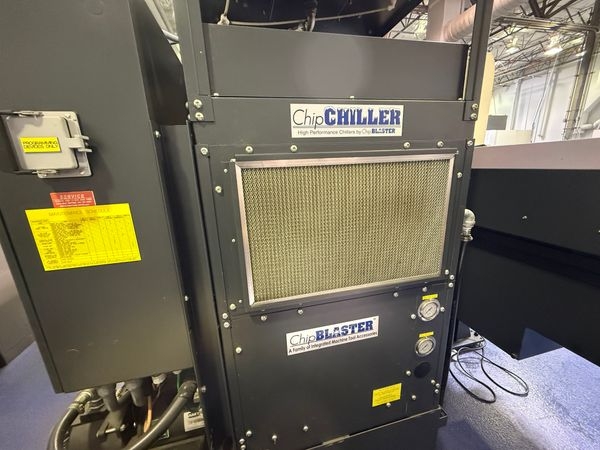

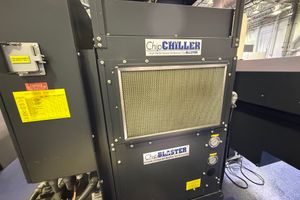

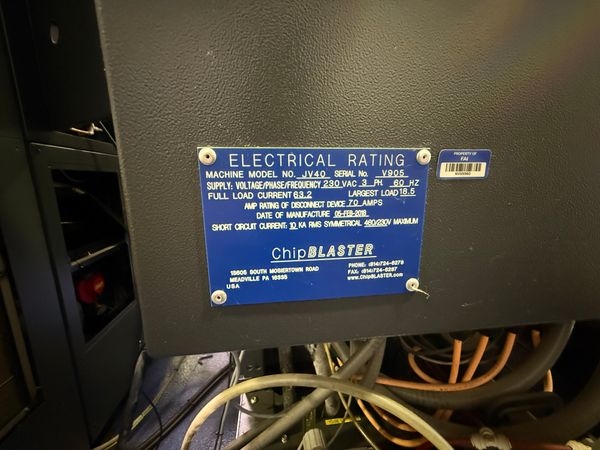

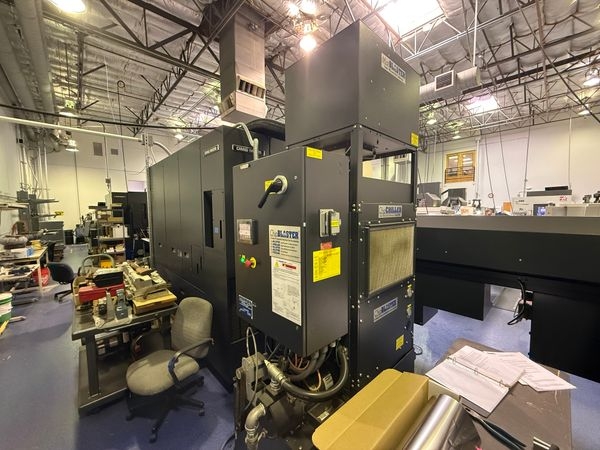

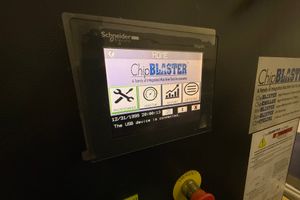

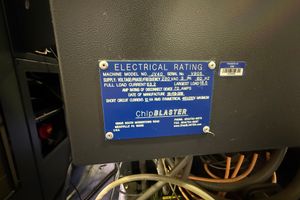

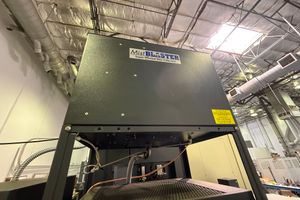

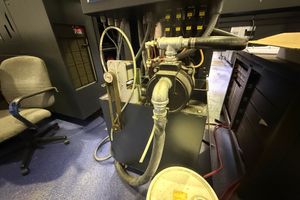

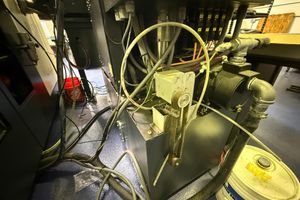

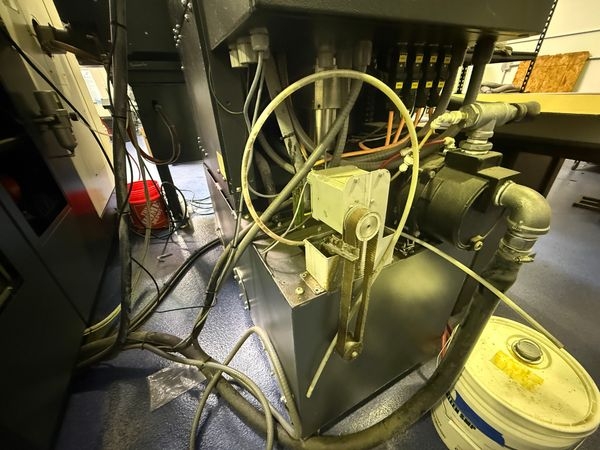

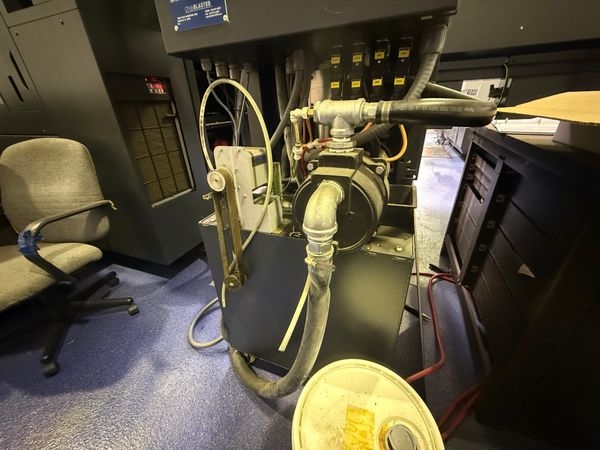

ChipBlaster MS-JV40MC-34K-MMB Variable Volume with transfer pump
