DOOSAN DNM400 AI Chat
Loading ...

Machine Overview

Specs:
X Axis Travel: 30.2"
Y Axis Travel: 17.1"
Z Axis Travel: 20.1"
Spindle Motor: 20 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Rapid Rate X Axis: 590 IPM
Rapid Rate Y Axis: 590 IPM
Rapid Rate Z Axis: 590 IPM
Max Table Load: 1,320 LBS
Spindle Nose to Table: 5.91" – 24.25"
Max Tool Weight: 17.6 LBS
Max Tool Length: 11.8"
Max Tool Dia.: 5.9"
Tool Change Time: 1.5 SEC
Air Required: 90 psi, 4 SCFM
Power: 205-220v / 50kva / 3-Phase
Options:
Probe
Chip Conveyor
Coolant Thru Spindle
4th Axis Rotary Table
Two Chip Augers that feed conveyor
ATS RT160 4th Axis Rotary Table
Tailstock & Tombstone for 4th Axis
Description:

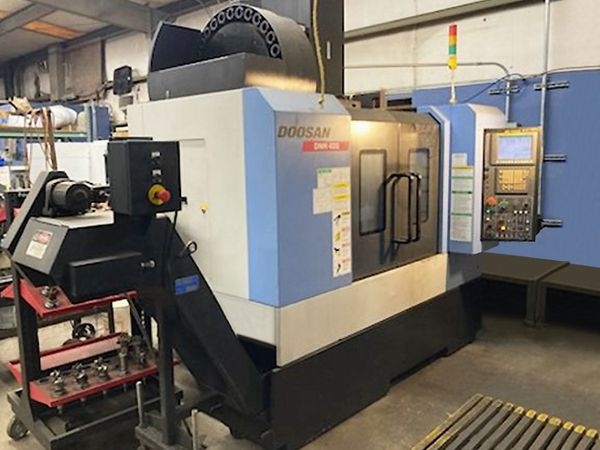

This 2012 DOOSAN DNM400 Vertical Machining Center is a valuable tool for your workshop needs. It comes equipped with an array of crucial features that enhance its capabilities. One of the most prominent offerings is the Probe. This feature allows for precise measurements during the machining process, ensuring your projects meet desired specifications with ease.

Another notable addition is the Coolant Thru Spindle system. This upgrade provides effective cooling during cutting operations. By channeling coolant directly through the spindle, it helps to extend tool life and reduce heat, allowing for smoother and more consistent cuts.

The machine also includes a 4th Axis Rotary Table. This feature expands the range of movements possible during operations, offering greater flexibility and the ability to handle more complex jobs. It allows for the machining of parts from multiple angles without needing frequent repositioning.

This DOOSAN DNM400 is designed with user convenience in mind, offering intuitive controls that make operation straightforward. With its 2012 manufacturing date, it incorporates modern machining technology while proving to be a sturdy addition to any shop.

Whether you are upgrading your existing machinery or looking to expand your capabilities, this machining center is an excellent option. Its combination of reliable features and user-friendly design ensures that it will contribute to an increase in productivity and project quality.

Machine Comps

See Price Guide
What's Your CNC Price?
Track any CNC machine's value for free on cncmachines.com.
Here to Help
End of Lease Manager5 stars

"This deal went awesome, I'm super impressed!"

End of Lease Manager US Bank

Deanna L.5 stars

"Very easy to deal with and professional. Made the selling process headache free with options based on my time frame."

Deanna L. Precision Grinding Inc.

Mark W.5 stars

"Michael helped me sell 3 Haas machines over the summer of 2016. CNC Machines was professional and effective at getting all of the machines sold."

Mark W. Clark Machine

Chris A.5 stars

"CNCMachines.com is a top notch company! Now that I know you can purchase a machine online with someone that can be trusted, I will go back to CNCMachines.com for future purchases."

Chris A. Robert Alten Inc.

Similar Listings

MAKINO A71NX #13716
MAKINO A71NX #13716
US FlagUSA
49
2021 MAKINO A71NX
Horiz Mach Center   #13716   View Listing
31.5"x29.5"x32.7" •
ENDS IN:
11 Days
CURRENT BID:
$3,000
MAKINO A71NX #14175
MAKINO A71NX #14175
US FlagUSA
8
2021 MAKINO A71NX
Horiz Mach Center   #14175   View Listing
31.5"x29.5"x32.7" •
ENDS IN:
11 Days
CURRENT BID:
$20,000
MAKINO A71NX #14174
MAKINO A71NX #14174
US FlagUSA
8
2021 MAKINO A71NX
Horiz Mach Center   #14174   View Listing
31.5"x29.5"x32.7" •
ENDS IN:
11 Days
CURRENT BID:
$2,000
MAKINO A71NX #14173
MAKINO A71NX #14173
US FlagUSA
8
2018 MAKINO A71NX
Horiz Mach Center   #14173   View Listing
31.5"x29.5"x32.7" •
ENDS IN:
11 Days
CURRENT BID:
$2,000
FANUC R-1000-IA/80F ROBOT #14178
FANUC R-1000-IA/80F ROBOT #14178
US FlagUSA
8
2021 FANUC R-1000-IA/80F ROBOT
Handling   #14178   View Listing
ENDS IN:
11 Days
STARTING BID:
$1,000
TSUDAKOMA RT251-2-4RFJ 5 AXIS #14210
TSUDAKOMA RT251-2-4RFJ 5 AXIS #14210
US FlagUSA
3
2021 TSUDAKOMA RT251-2-4RFJ 5 AXIS
Tool & Work   #14210   View Listing
ENDS IN:
11 Days
STARTING BID:
$1,000
TSUDAKOMA RT251-2-4RFJ 5 AXIS #14211
TSUDAKOMA RT251-2-4RFJ 5 AXIS #14211
US FlagUSA
3
2021 TSUDAKOMA RT251-2-4RFJ 5 AXIS
Tool & Work   #14211   View Listing
ENDS IN:
11 Days
STARTING BID:
$1,000
TSUDAKOMA RT251-2-4RFJ 5 AXIS #14176
TSUDAKOMA RT251-2-4RFJ 5 AXIS #14176
US FlagUSA
3
2021 TSUDAKOMA RT251-2-4RFJ 5 AXIS
Tool & Work   #14176   View Listing
ENDS IN:
11 Days
STARTING BID:
$1,000
HAAS VF1 #14137
HAAS VF1 #14137
US FlagUSA
10
2017 HAAS VF1
Vert Mach Center   #14137   View Listing
20"x16"x20" •
ENDS IN:
11 Days
STARTING BID:
$1,000
DOOSAN DNM400 #13980
DOOSAN DNM400 #13980
US FlagUSA
1
2010 DOOSAN DNM400
Vert Mach Center   #13980   View Listing
30.2"x17.1"x20.1" •
Make Offer
by RichW689
$37,500
SEE DETAILS
DOOSAN DMV3016L #14387
DOOSAN DMV3016L #14387
US FlagUSA
14
2006 DOOSAN DMV3016L
Vert Mach Center   #14387   View Listing
30"x16.1"x20.1" •
Make Offer
by JeffW200
$21,500
SEE DETAILS
DOOSAN DNM 500 II #13444
DOOSAN DNM 500 II #13444
US FlagUSA
4
2014 DOOSAN DNM 500 II
Vert Mach Center   #13444   View Listing
40"x21"x20" •
Make Offer
by MilaH809
$35,000
SEE DETAILS
DOOSAN DNM500 #13760
DOOSAN DNM500 #13760
US FlagUSA
6
2010 DOOSAN DNM500
Vert Mach Center   #13760   View Listing
40"x21"x20" •
Make Offer
by JohnB618
$20,000
SEE DETAILS
DOOSAN DVF 5000 #12508
DOOSAN DVF 5000 #12508
US FlagUSA
14
2021 DOOSAN DVF 5000
Vert Mach Center   #12508   View Listing
24.6"x17.7"x15.7" •
Make Offer
by MarkP815
$209,500
SEE DETAILS
DOOSAN DVF6500 #11548
DOOSAN DVF6500 #11548
US FlagUSA
7
2022 DOOSAN DVF6500
Vert Mach Center   #11548   View Listing
30"x31"x24" •
Make Offer
by MarkP815
$329,500
SEE DETAILS
DOOSAN DVF6500 #13651
DOOSAN DVF6500 #13651
US FlagUSA
6
2022 DOOSAN DVF6500
Vert Mach Center   #13651   View Listing
29.5"x30.9"x23.6" •
Make Offer
by MarkP815
Call For Price
SEE DETAILS
DOOSAN DVF6500 #14339
DOOSAN DVF6500 #14339
US FlagUSA
15
2022 DOOSAN DVF6500
Vert Mach Center   #14339   View Listing
Make Offer
by MartS369
$275,000
SEE DETAILS

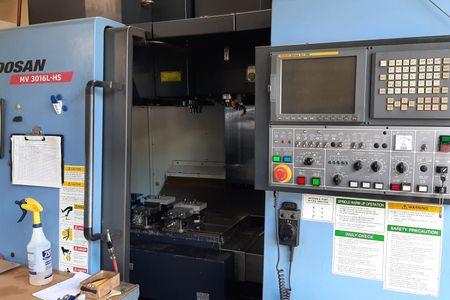

DOOSAN MV3016L #14153
