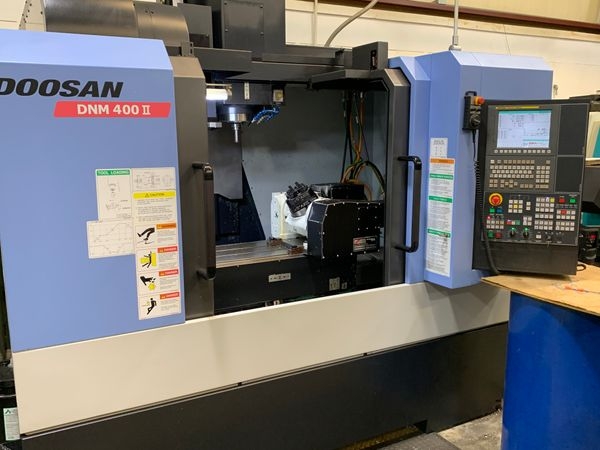

Pre-owned DOOSAN DNM400-II 2014 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Fanuc control. This CNC Machine is currently located in USA. This DOOSAN Vertical Mach...Read More
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 17.1"
Z Axis Travel: 20.1"
Table Size: 36.2 x 17.1
Max Table Load: 1,323 LBS
Spindle Motor: 20 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Rapid Rate X Axis: 1,417 IPM
Rapid Rate Y Axis: 1,417 IPM
Rapid Rate Z Axis: 1,181 IPM
Dimensions: 103" x 90" x 106"
Weight: 11,023 LBS
Y Axis Travel: 17.1"
Z Axis Travel: 20.1"
Table Size: 36.2 x 17.1
Max Table Load: 1,323 LBS
Spindle Motor: 20 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Rapid Rate X Axis: 1,417 IPM
Rapid Rate Y Axis: 1,417 IPM
Rapid Rate Z Axis: 1,181 IPM
Dimensions: 103" x 90" x 106"
Weight: 11,023 LBS
Options:
Fanuc
Probe
Coolant Thru Spindle
5 Axis
Probe
Coolant Thru Spindle
5 Axis
