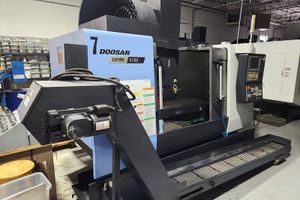

2016 DOOSAN DNM5700

Machine type: 3-axis vertical machining center
Control: FANUC (commonly 0i / i-Series)

Travels
X axis: 41.3 in (1050 mm)
Y axis: 22.4 in (570 mm)
Z axis: 20.1 in (510 mm)

Table
Table size: 51.2 x 22.4 in (1315 x 570 mm)
Max table load: 2,200 lb (1,000 kg)

Spindle
Spindle taper: CAT40 / BT40 (Big-Plus optional)
Spindle speed: 12,000 RPM (8,000 RPM optional)
Spindle motor: approx. 25 HP (18.5 kW)

Tool changer
Tool capacity: 30 tools
Max tool weight: approx. 17.6 lb (8 kg)

Feeds
Rapid traverse (X/Y): approx. 1,417 IPM (36 m/min)
Rapid traverse (Z): approx. 1,181 IPM (30 m/min)
Cutting feed: approx. 590 IPM (15 m/min)

Machine
Approx weight: 14,300–15,400 lb (6,500–7,000 kg)
Coolant: flood, thru-spindle optional
Common options: chip conveyor, probes, rigid tapping, spindle chiller

Chip Conveyor
