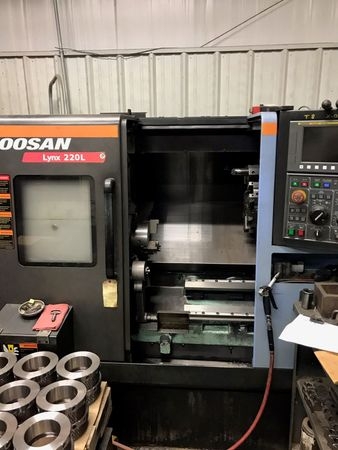

Used DOOSAN LYNX 220LC CNC Lathe
Specifications:
Bar Capacity: 2.625"
Chuck Size: 6.5"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 6.9"
Z Axis Travel: 21.7"
Rapid Rate Z Axis: 1 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1 IPM
Max Turning Dia: 12.6"
Max Turning Length: 21"
Max Swing: 20.1"
Dimensions: 101 x 63 x 65
Weight: 7,700 LBS
Chuck Size: 6.5"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 6.9"
Z Axis Travel: 21.7"
Rapid Rate Z Axis: 1 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1 IPM
Max Turning Dia: 12.6"
Max Turning Length: 21"
Max Swing: 20.1"
Dimensions: 101 x 63 x 65
Weight: 7,700 LBS
Equipped With:
Doosan Fanuc i Series
Chip Conveyor
Tool Presetter
Parts Catcher
Chip Conveyor
Tool Presetter
Parts Catcher
Video:
