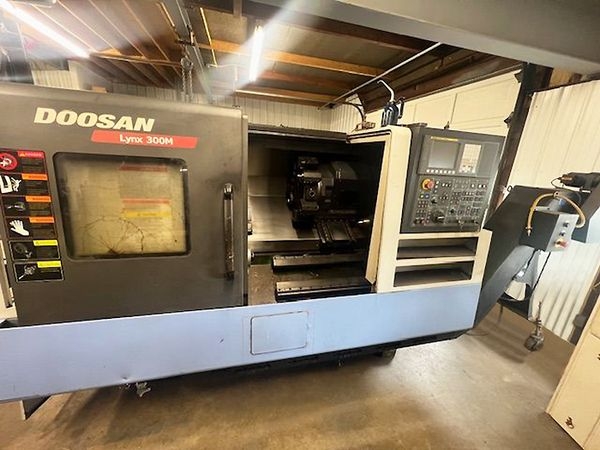

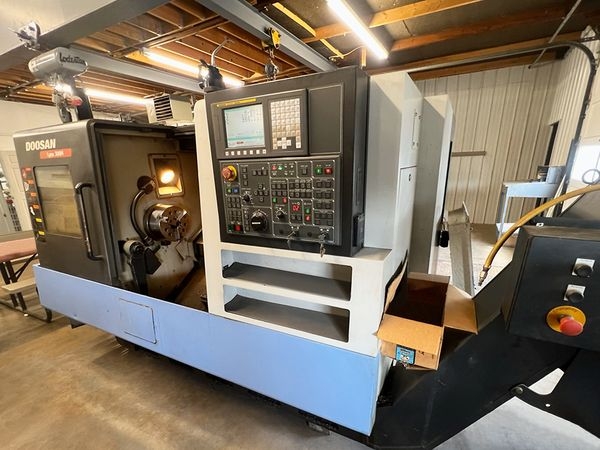

This 2011 DOOSAN LYNX 300M CNC Lathe offers a range of features aimed at optimizing your machining needs. It's fitted with a Chip Conveyor, which efficiently handles waste materials, keeping your workspace tidy and functional...Read More
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 20 HP
X Axis Travel: 10"
Z Axis Travel: 31.1"
Turret Tools: 12 Station
Max Turning Dia: 14.6"
Max Turning Length: 28"
Max Swing: 25.6"
Tailstock Taper: MT-4
Tailstock Quill Diameter.: 3.1?
Tailstock Quill Travel: 4.7?
Dimensions: 118" x 70" x 76"
Weight: 8,930 LBS
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 20 HP
X Axis Travel: 10"
Z Axis Travel: 31.1"
Turret Tools: 12 Station
Max Turning Dia: 14.6"
Max Turning Length: 28"
Max Swing: 25.6"
Tailstock Taper: MT-4
Tailstock Quill Diameter.: 3.1?
Tailstock Quill Travel: 4.7?
Dimensions: 118" x 70" x 76"
Weight: 8,930 LBS
Options:
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher

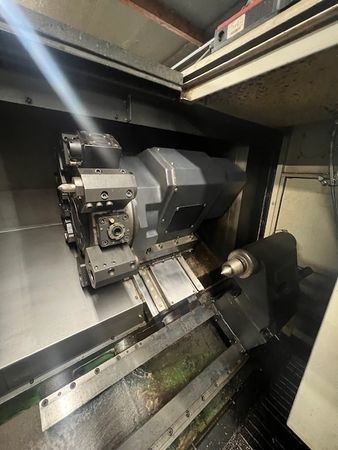

Live Tooling

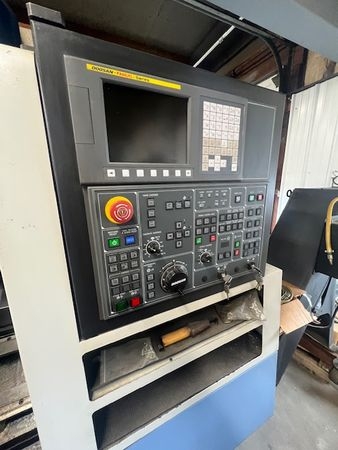

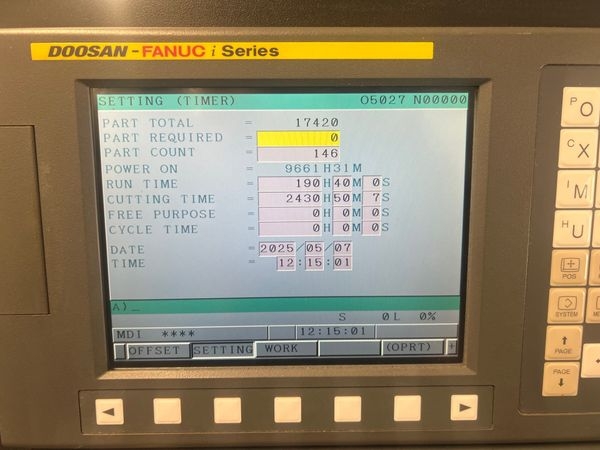

Fanuc Oi Control
10" Samchully Chuck 3 Jaw
1 Radial Live tool
1 Axial Live tool
5 Turning Holders
4 Boring Holders
Tool Presetter
Tailstock
Parts Catcher
Live Tooling
Fanuc Oi Control
10" Samchully Chuck 3 Jaw
1 Radial Live tool
1 Axial Live tool
5 Turning Holders
4 Boring Holders
