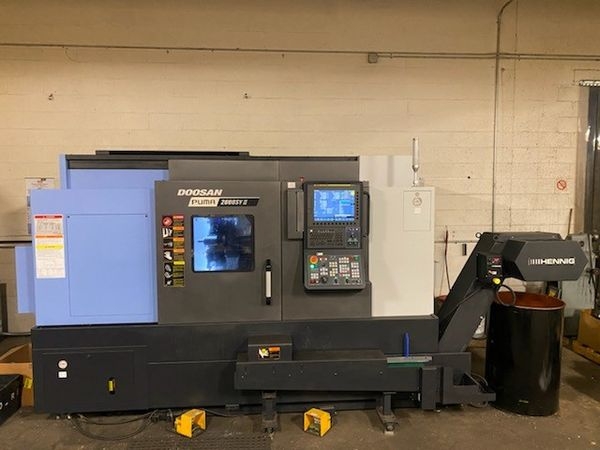

Used DOOSAN PUMA 2600SY-II CNC Lathe
Pre-owned DOOSAN PUMA 2600SY-II 2020 CNC Lathe. This Doosan Puma has below average cutting time and is equipped with a Fanuc I Series control. This CNC Machine is currently located in USA. This DOOSAN CNC Lathe is available for a limited time. Get a quote today on this PUMA 2600SY-II before it's gone.
Specs:
Bar Capacity: 3.2"
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP
B Axis Travel: 32.7"
X Axis Travel: 10.2"
Y Axis Travel: 4.1" +/- 2.1"
Z Axis Travel: 32.7"
Rapid Rate Z Axis: 1,181 IPM
Rapid Rate Y Axis: 394 IPM
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 14.8"
Max Turning Length: 29.9"
Sub Spindle Chuck: 8"
Sub Spindle Speed: 6,000 RPM
Sub Spindle Motor: 20 HP
Dimensions: 142" x 825" x 75"
Weight: 14,440 LBS
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP
B Axis Travel: 32.7"
X Axis Travel: 10.2"
Y Axis Travel: 4.1" +/- 2.1"
Z Axis Travel: 32.7"
Rapid Rate Z Axis: 1,181 IPM
Rapid Rate Y Axis: 394 IPM
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 14.8"
Max Turning Length: 29.9"
Sub Spindle Chuck: 8"
Sub Spindle Speed: 6,000 RPM
Sub Spindle Motor: 20 HP
Dimensions: 142" x 825" x 75"
Weight: 14,440 LBS
Options:
Fanuc i Series
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
All Axil & Radial Live Holders
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
All Axil & Radial Live Holders
Rigging:
$2,500
Owner:
Gary (Machine Shop in MI)
