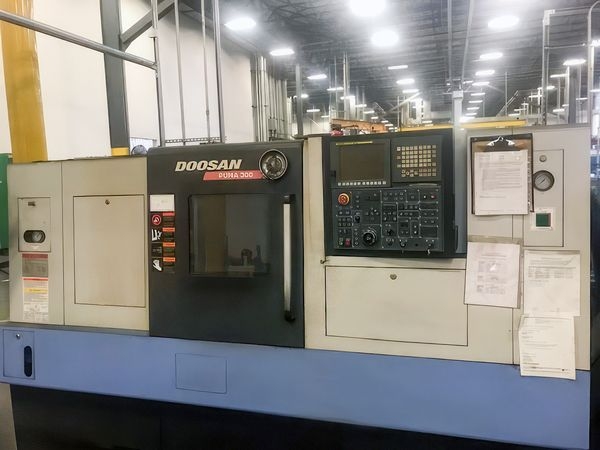

Located in the industrious state of Texas, this 2013 DOOSAN PUMA 300C CNC Lathe is readily available for immediate purchase. It boasts of decent practicality and effectiveness, rendering significant-quality output in a variet...Read More
Notify Me:
Specs:
Bar Capacity: 3.5"
Chuck Size: 12"
Spindle Speed: 2,800 RPM
Spindle Motor: 35 HP
X Axis Travel: 11.3"
Z Axis Travel: 26.5"
Rapid Rate Z Axis: 787 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 15.7"
Max Turning Length: 27.8"
Max Swing: 22"
Spindle Nose: A2-11
Weight: 12,700 LBS
Dimensions: 206" x 86" x 92" in
Chuck Size: 12"
Spindle Speed: 2,800 RPM
Spindle Motor: 35 HP
X Axis Travel: 11.3"
Z Axis Travel: 26.5"
Rapid Rate Z Axis: 787 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 15.7"
Max Turning Length: 27.8"
Max Swing: 22"
Spindle Nose: A2-11
Weight: 12,700 LBS
Dimensions: 206" x 86" x 92" in
Options:
Chip Conveyor
Tool Presetter
high pressure interface
tool load monitor
bar feeder interface
Tool Presetter
high pressure interface
tool load monitor
bar feeder interface
