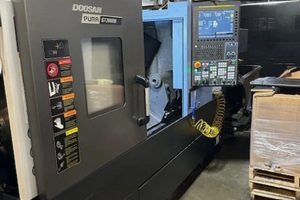

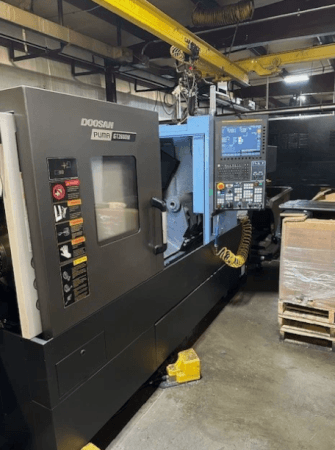

2021 DOOSAN PUMA GT2600M

This 2020 DOOSAN PUMA 480XL is a fantastic CNC turning center that offers a synthesis of advanced technology and robust engineering. Designed for precision and productivity, this used machine features the much-sought-after specifications of the Doosan GT2600M model.

The PUMA GT2600M exemplifies thoughtful design with a notable 630mm swing over the bed and a 460mm swing over the saddle. This turning center accommodates a 610mm turning length and a 410mm turning diameter, making it immensely versatile for a wide range of machining tasks. The powerful 3600 C Axis, with a fine resolution of 0.0010, ensures precision and adaptability in operation. Main spindle capacities are impressive, facilitating a 220kg workload for general tasks and an enhanced 520kg capacity for shaft work.

Attention to detail extends to the main spindle, which boasts an industrious 81mm bar capacity coupled with a 250mm hydraulic chuck. This spindle operates at 3500RPM, delivering 22kW of power and 633Nm of torque, enhancing its ability to handle rigorous demands. Moreover, the high-pressure coolant pump maintains optimal temperature control during extended machining sessions.

The tailstock of the PUMA 480XL features an MT5 taper, incorporating a 100mm quill with 100mm quill travel. This ensures flexibility and precision, with programmable positioning that allows for tailored adjustments during tasks that require intricate detail.

Focusing on tooling, the machine includes a turret with 12 stations, facilitating diverse tooling needs. The BMT 55 tool mounting supports enhanced functionality, while the live tool speed reaches up to 5000RPM. This is powered by 5.5kW and delivers torque of 47.1Nm, designed for effective material removal processes. Furthermore, the turret supports a 25mm square or 40mm tool capacity, along with an ER25 live tool collet size.

Total hours on this machine are low, indicative of its sustained performance capabilities for prospective buyers. Should you wish to place a bid or inquire further, please contact L&L Machine in Edon, OH, before bidding. This ensures that all your questions are addressed and enables you to make a well-informed purchasing decision.
