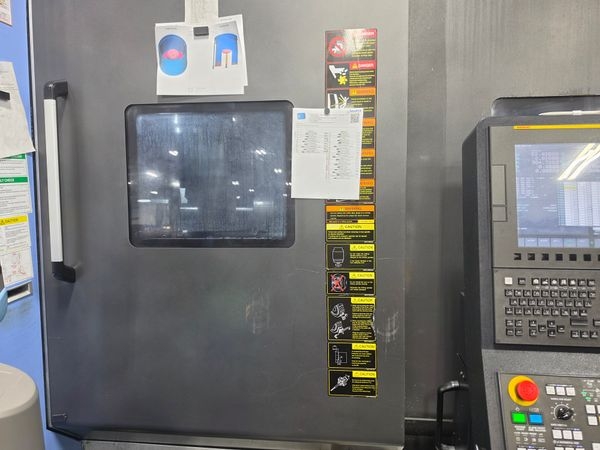

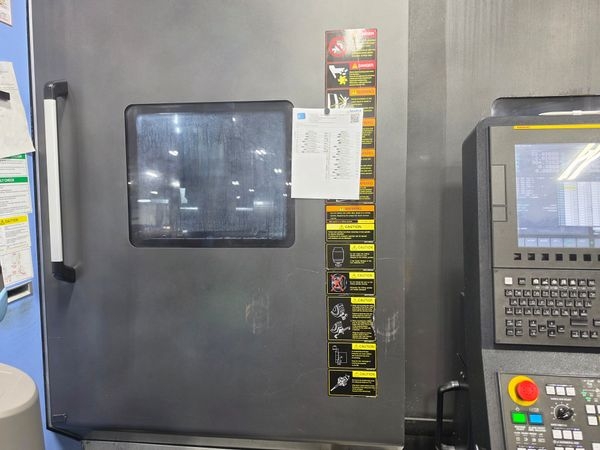

2023 DOOSAN PUMA SMX2600ST-LMT

Bar Capacity: 3.2"
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 40 HP
X Axis Travel: 27.4"
Z Axis Travel: 62.4"
Rapid Rate Z Axis: 1,889 IPM
Turret Tools: 80 Station
Rapid Rate X Axis: 1,889 IPM
Max Turning Dia: 26"
Max Turning Length: 61"
Rapid Traverse Y-axis: 417 ipm
X2-axis: 9.3 in.
Z2-axis: 60.6 in
Y-axis: 11.8±5.9 in.
B-axis: 240°±120°

Spindle (Milling)
Speed: 12000 rpm
Power: 35 HP
Torque: 91 ft-lbs

Spindle (Turning)
Right Spindle Torque: 458 ft-lbs
Chuck Size: 10 in.
Left Spindle Speed: 4000 rpm
Left Spindle Power: 35 Hp
Left Spindle Torque: 516 ft-lbs
Right Spindle Speed: 4000 rpm
Right Spindle Power: 35 Hp

Tooling (Lower Turret)
Boring Bar Diameter: 1.5 in.
Rotary Tool Speed: 5000 rpm
Rotary Tool Power: 9.4 HP
Rotary Tool Torque: 20 ft-lbs
Shank: BMT-KEY
Stations: 12
Dimensions: 228" x 111" x 119"
Weight: 39,680 LBS

Chip Conveyor
Tool Presetter
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
