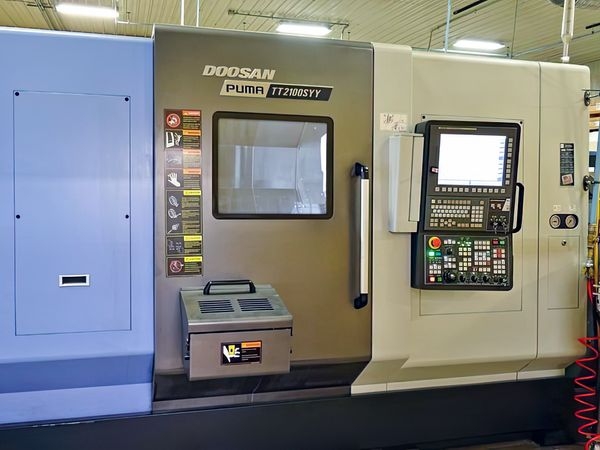

DOOSAN TT2100SYY CNC Lathe

Travel Distance X1-axis
165 mm (6.5 in.)
Travel Distance Z1-axis
700 mm (27.5 in.)
Travel Distance X2-axis
165 mm (6.5 in.)
Travel Distance Z2-axis
700 mm (27.5 in.)
Travel Distance Y-axis
100±50 mm (3.9±2 in.)
Travel Distance A-axis
730 mm (28.7 in.)
Rapid Traverse X-axis
30 m/min. (1,181 in./min.)
Rapid Traverse Y-axis
15 m/min. (590 in./min.)
Rapid Traverse Z-axis
40 m/min. (1,575 in./min.)
Rapid Traverse C-axis
600 rpm
CAPACITY
Max Turning Diameter (Upper Turret)
?230 mm (9.1 in.)
Max Turning Diameter (Lower Turret)
?230 mm (9.1 in.)
Max Turning Length
230 mm (9.1 in.)
Through Hole Diameter (Left Spindle)
?68 mm (2.7 in.)
Through Hole Diameter (Right Spindle)
?65 mm (2.6 in.)
SPINDLE (LEFT/RIGHT)
Chuck Size
8 in.
Speed
5,000 rpm
Power
25/18 kW (35/25 Hp)
Torque
223 Nm (164 ft-lbs.)
TOOLING
Shank
BMT-55
Turret Stations
2 x 12/Turret
Boring Bar Diameter
?32 mm (1.2 in.)
Rotary Tool Speed
5,000 rpm
Rotary Tool Power
7.5 kW (10 Hp)
Rotary Tool Torque
47 Nm (34.7 ft-lbs.)
MACHINE SIZE & WEIGHT
Length
3,880 mm (153 in.)
Height
2,250 mm (88.6 in)
Width
2,360 mm (93 in.)
Weight
9,500 kg (20,940 lbs.)

Fanuc
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
MP Systems 1000 PSI Coolant
Dual Royal QG-65 Collet Chucks
Royal Rota-Rack Parts Accumulator
