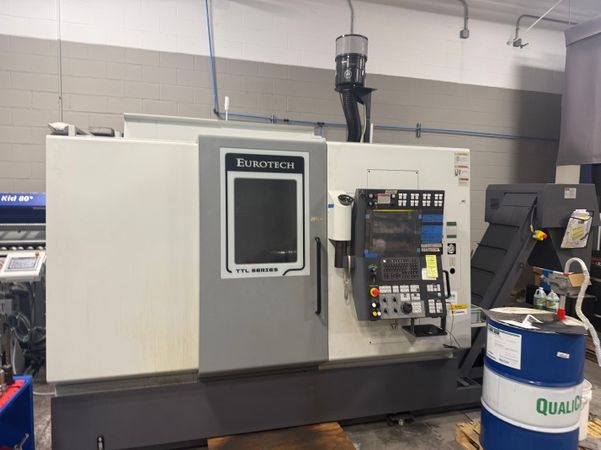

2023 EUROTECH TTL-66-66 T1Y-T2Y
- ID:15498
- Brand:EUROTECH
- Model: TTL-66-66 T1Y-T2Y
- Year:2023
- Category:CNC Lathe
- Location:North Carolina
Machine Overview
Bar Capacity: 2.60"
Chuck Size: 6"
Spindle Speed: 4,000 RPM
Spindle Motor: 47 HP
X Axis Travel: 9.25" (235 mm)
Z Axis Travel: 24.17" (614 mm)
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 24 Stations Upper / 24 Stations Lower
Rapid Rate X Axis: 708 IPM
Max Turning Dia: 8.66"
Max Turning Length: 24.17"
Max Swing: 9.45"
Dimensions: 112.6" x 93.6" x 90.1" (L x W x H)
Weight 24,250 LBS
Chip Conveyor
Tool Presetter
Tailstock
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Bellegrandi collet chuck (main spindle)
Bellegrandi collet chuck (sub spindle)
Twin Spindle
Twin Turret
Dual Y-Axis
High Pressure Coolant (1,000 psi)
Thru Spindle Coolant
Royal Mist Collector
Tool Life Management
Tool Load Monitoring
Pre-owned EUROTECH TTL-66-66 T1Y-T2Y 2023 CNC Lathe. This CNC Lathe has 0-500 cutting time and is equipped with a FANUC 31iplus control. This CNC Machine is currently located in North Carolina. This EUROTECH CNC Lathe is available for a limited time. Get a quote today on this TTL-66-66 T1Y-T2Y before it's gone.
