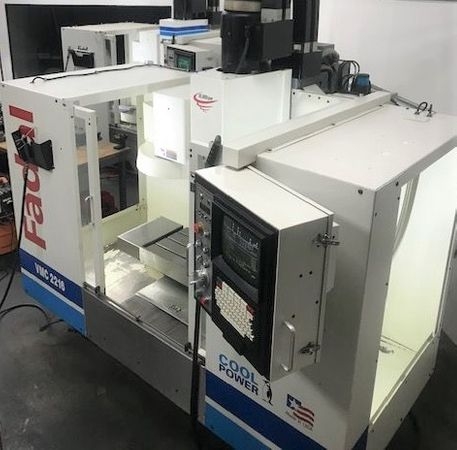

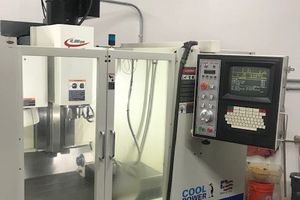

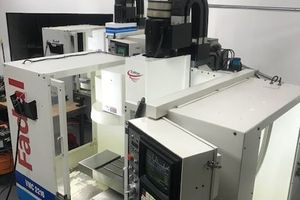

Pre-owned FADAL VMC2216HT 1999 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Fadal 88HS control. This CNC Machine is currently located in Illinois. This FADAL Vertical Machining Center is available for a limited time. Get a quote today on this VMC2216HT before it's gone.
Notify Me:
Specs:
X Axis Travel: 22"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 900 IPM
Rapid Rate Y Axis: 900 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 39" X 16"
Max Table Load: 750 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Spindle Nose to Table 4" - 24"
Rigid Tapping
Box Way Construction
Dimensions: 98" X 77" X 103"
Weight: 8,300 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 900 IPM
Rapid Rate Y Axis: 900 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 39" X 16"
Max Table Load: 750 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Spindle Nose to Table 4" - 24"
Rigid Tapping
Box Way Construction
Dimensions: 98" X 77" X 103"
Weight: 8,300 LBS
Options:

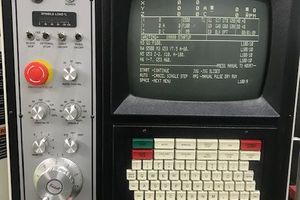

Fadal 88HS
Programmable Coolant
4th Axis Rotary Table
10,000 RPM
Fadal VH-65 Rotary Table
High Torque Spindle
220V - 440V
Programmable Coolant
4th Axis Rotary Table
10,000 RPM
Fadal VH-65 Rotary Table
High Torque Spindle
220V - 440V
