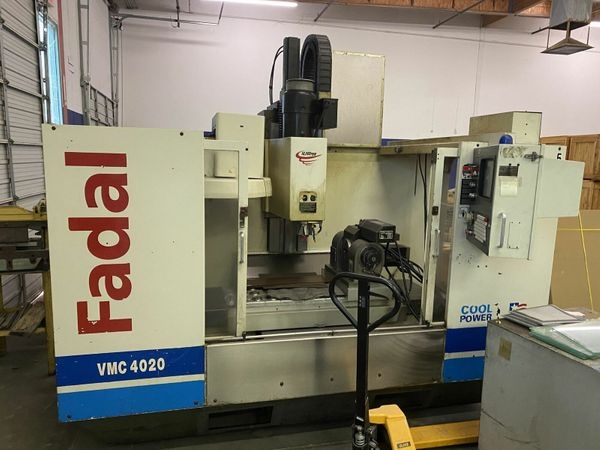

Pre-owned FADAL VMC4020HT 2000 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a 88HS control. This CNC Machine is currently located in Illinois. This FADAL Vertical Machining Center is available for a limited time. Get a quote today on this VMC4020HT before it's gone.
Notify Me:
Specs:
X Axis Travel: 40 "
Y Axis Travel: 20 "
Z Axis Travel: 28 "
Rapid Rate X Axis: 787 IPM
Rapid Rate Y Axis: 787 IPM
Rapid Rate Z Axis: 787 IPM
Table Size: 48" x 20"
Max Table Load: 1000 LBS
Spindle Motor: 22.5 HP
Spindle Speed: 10000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 + 1 ATC
Tool Changer Style: Umbrella
Dimensions: 116" x 87" x 104"
Weight: 13000 LBS
Y Axis Travel: 20 "
Z Axis Travel: 28 "
Rapid Rate X Axis: 787 IPM
Rapid Rate Y Axis: 787 IPM
Rapid Rate Z Axis: 787 IPM
Table Size: 48" x 20"
Max Table Load: 1000 LBS
Spindle Motor: 22.5 HP
Spindle Speed: 10000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 + 1 ATC
Tool Changer Style: Umbrella
Dimensions: 116" x 87" x 104"
Weight: 13000 LBS
Options:
88HS
Programmable Coolant
Fadal TR-65 5-Axis Trunnion Table
4th and 5th Axis Pre-Wire
Extended Z-Axis Travels
High Torque Motor
Programmable Coolant
Fadal TR-65 5-Axis Trunnion Table
4th and 5th Axis Pre-Wire
Extended Z-Axis Travels
High Torque Motor
