Machine Overview

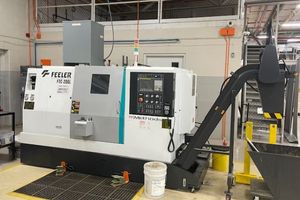

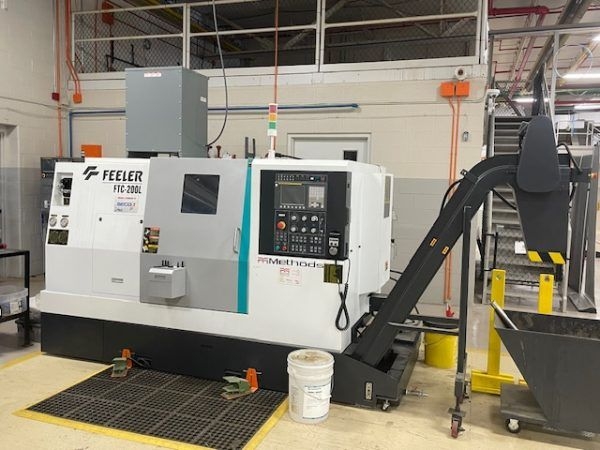

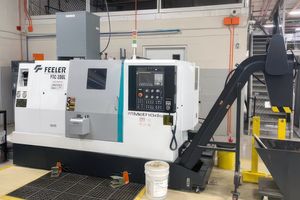

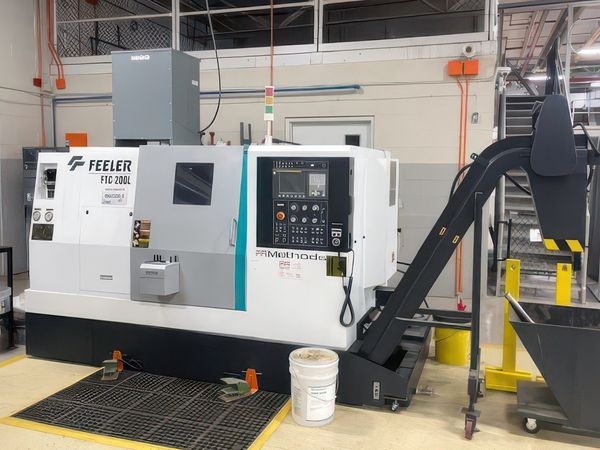

This 2017 FEELER FTC200L is a versatile machine packed with essential features that cater to various machining needs. Included in this package are a Chip Conveyor, Tailstock, Bar Feeder, and a Parts Catcher, enhancing your workflow efficiency and convenience.
The machine offers a robust set of specifications designed to meet demanding tasks. It features an 8" 3-Jaw Power Chuck with a bar capacity of 2.6". The swing over bed is 23.6", while the swing over saddle is 15.7". Its maximum turning diameter stands at 13.8", and it can handle a maximum turning length of 26". Without the Tailstock, it supports a workpiece weight of up to 53 lbs. The slant angle of 30 degrees aids in effective chip removal and offers ergonomic access.
The turret boasts a 12-station capacity, with a standard O.D. tool size of 1" and a maximum I.D. tool size of 1.25". The turret indexing time is quick at just 0.3 seconds. It comes equipped with a manual Tailstock with a dead center, ensuring accuracy in operations. The X-axis travel is 6.9 + 1", while the Z-axis travel extends up to 27.6".
The spindle speed reaches up to 4,500 RPM, driven by a 25 HP Spindle Motor with an A2-6 Spindle Nose design. It incorporates a 29-gallon coolant tank with a cooling pump pressure of 100 PSI, optimizing cooling processes during operations. The power capacity for this machine is rated at 25 KVA. When taking into account the chip conveyor, the machine's floor space measures 152 x 62". The structure has a height of 68" and a weight of approximately 8,800 lbs.
This machine has been used with care, exhibiting an approximate power-on time of 886 hours and about 219 hours of cutting time. It's equipped with the Fanuc 0i-TF Control for precise and easy management. Other features include hydraulic quill movement, hydraulic parts catcher, flood coolant over the main spindle, automatic lubrication system, enclosed splash guard, and a safety interlock package.
The accessory set includes a Tool Holder Package, Hard Jaw Set, Soft Jaw Sets, and a Bar Feeder Interface, ensuring that you're well-equipped for a range of machining tasks. This 2017 FEELER FTC200L is a reliable asset for any workshop needing a sturdy and functional turning center.
