Machine Overview

Specs:
X Axis Travel: 236"
Y Axis Travel: 110"
Z Axis Travel: 49.1"
Spindle Motor: 50 HP
Spindle Speed: 5,000 RPM
Spindle Taper: 50 CT
Tool Changer: 72 ATC
Max. Cutting Height 62.99"
Effective Width Between Colums 94.5"
Spindle Speeds, 3-Range 10-3200 RPM
Main Milling Head on Ram Hard Steel Cartridge - 3 Speed Ranges - Equipped with an accessory holder plate with auto clamping: Indexing 2.5 degrees
Spindle Taper #50 ISO
A-Axis Spindle Head Tilt +/-95 Degrees
B-Axis Spindle Head Swivel 360 Degrees
A-Station AAC yes
Automatic Head Changer yes
Automatic Attachment Changer (ACC): Yes - 3 Heads
Right Angle Head 10 - 3200 RPM, 2.5 degree indexing
DRC12 Head Attachment (double stepless rotation) 10 - 5000 RPM, (Double stepless rotation)
Multiplying spindle extension Head 10 - 8,000 RPM, Ratio: 2/1, 2.5 degrees indexing
Table Size: 236" x 84"
Dimensions: 382" x 251" x 267"
Options:
5 Axis
Description:

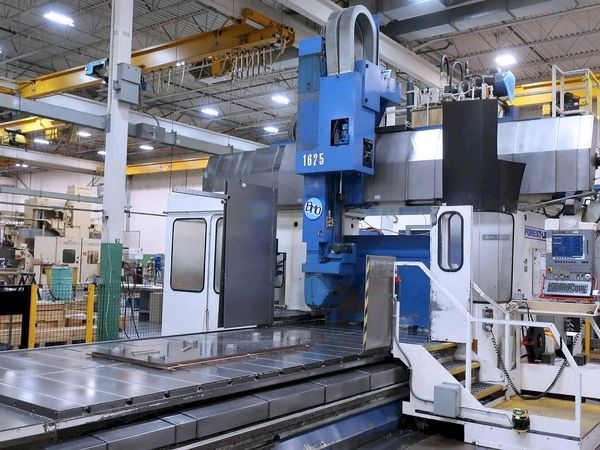

This 2008 FOREST LINE V33800MR is a great piece of machinery. This CNC machine boasts of a table size of 83.27" by 236" along with a cutting height reaching of up to 62.99". Given its efficiency, it should be noted that it handles five axes of operation. This model has a FIDIA C20 CNC Control which was retrofitted in 2008.

The CNC machine has an X, Y, and Z measurement of 236, 110.23, and 49.21 inches respectively. The width between the machine's columns is 94.5". The spindle speeds in 3-Range from 10 to 3200 RPM. The main milling head of this machine is made of hard steel cartridge with 3 speed ranges. It has a #50 ISO spindle taper, an A-axis spindle head tilt of +/-95 degrees and its B-Axis spindle head swivels a complete 360 degrees.

Added features of the Forest Line V33800MR are its Automatic Head Changer and an Automatic Attachment Changer. The latter comes with three heads. One right angle head that runs from 10 - 3200 RPM with 2.5-degree indexing. The DRC12 Head Attachment, unique for its double stepless rotation, operates at 10 - 5000 RPM. The third head, the multiplying spindle extension, operates at 10 - 8,000 RPM with a 2:1 ratio and 2.5 degrees indexing.

The machine stands tall at 267" and has a footprint of 382" by 251". It possesses a 42.9 HP (32 KW) spindle drive motor and a 72-station automatic tool changer. Notably, each attachment comes with its unique 'M' code. The machine's weight is 106,150 LBS. or 233,530 kg. The machine further demonstrates its productivity by possessing a 3-station spindle head changer with automatic cycles or sub-routines to auto change.

Do note that this machine underwent a complete Re-Control in 2008 with FIDIA C20 CNC CONTROLS, making it a great purchase for those seeking to upgrade their operations. To purchase a new machine of similar functionality could cost between $2-4 Million USD. Further documentation and manuals for this machine are available upon request.
