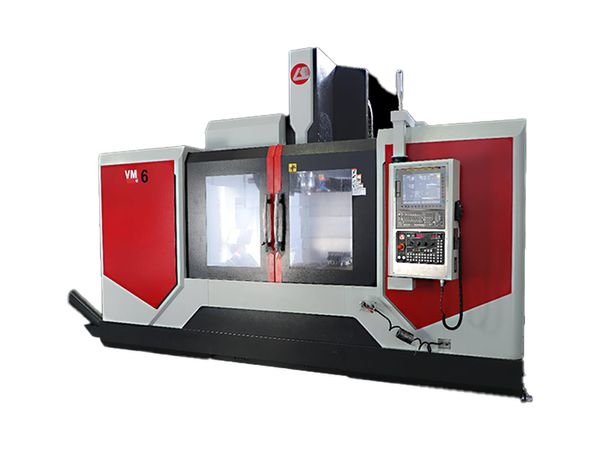

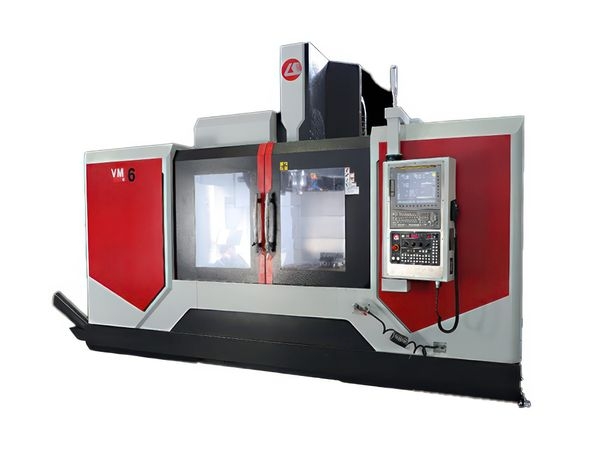

2025 LK VM6

X Axis Travel: 60"
Y Axis Travel: 30"
Z Axis Travel: 30"
Spindle Motor: 25 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Rapid Rate X Axis: 1,889 IPM
Rapid Rate Y Axis: 1,889 IPM
Rapid Rate Z Axis: 1,889 IPM
FANUC OI-MF PLUS CNC Control Unit
15.4’ LCD/TFT Colour Touch Screen
Linear Guides with High Precision and Strength in X, Y, Z Axes
C-3 Quality Pre-Tensioned Ball Screws
‘MEHANITE’ Strength and Precision Casting Body Structure
Fully Enclosed Cabin & In-Cab Wash System
Spindle Oil Cooling System & Spindle Continuous Air Curtain System
Pressurised Cutting Fluid Spraying System from Spindle End
Pressurised Air and Water Spray System around the Spindle
In-Cab LED Lighting System x 2 Pieces & LED Work Lamp
Programmable Central Lubrication System from Automatic (Alarm) Unit
Stainless Telescopic Slideway Protector System in X, Y, Z Axes
Screw Type Chip Disposal Screw & Chip Trolley
Spare Air Tank For Tool Changer
Automatic End of Programme Worktop Shutdown Function
Handwheel (MPG)
Electric Cabinet Heat Equalisation System
3 Colour Alarm Lamp
Air & Water Gun
Bench Operation and Maintenance Books
FANUC Programming and Operation Books
Electrical and Safety Equipment in accordance with CE Norms
1 Year Mechanical Bench Warranty
2 Year Control Unit Warranty
