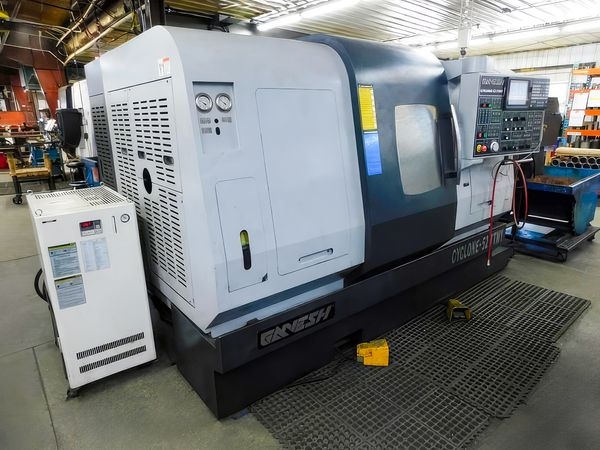

GANESH CYCLONE52TTMY CNC Lathe

Bar Capacity: 2"
Chuck Size: 8.0" 3-Jaw Powered
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
X Axis Travel: 5.4"
Z Axis Travel: 17.32"
Rapid Rate Z Axis: 1,673 IPM
Turret Tools: 16 Station
Tool Holder Type: BMT 65
Rapid Rate X Axis: 630 IPM
Max Turning Dia: 7.48"
Max Turning Length: 15.75"
X2 Axis Travel 9.050”
Z2 Axis Travel 17.32”
Y1 Axis Travel 2.76”
Main Spindle Nose A2-6
Main Spindle Bore 2.4”

SUB SPINDLE:
Second chuck size: 8.0" 3-Jaw Powered
Sub Spindle Speed 6000 RPM
Sub Spindle Nose A2-5
Sub Spindle Motor 10HP
Sub Spindle Bore 2.2”

LIVE TOOLING:
Top Turret 16 Stations (Turning or Rotary)
Top Turret Milling 4000 RPM / 7 HP
Bottom Turret 16 Stations (Turning or Rotary)
Bottom Turret Milling 4000 RPM / 7 HP
Full "Y" Axis on Upper Turret
Full "C" Axis on Main and Sub Spindle
MACHINE DIMENSIONS: 150"x105"x90"
Weight: 26,000 LBS
Electrical: 220V, 3Phase, 131Amp

Mitsubishi M700 CNC Control
Chip Conveyor
Live Tooling
Sub Spindle
Y Axis
Hydraulic Chiller/Tank: 10.5 gallons
Coolant Tank: 70 gallons
