Seller Needs:
$122,000|
972
|
0

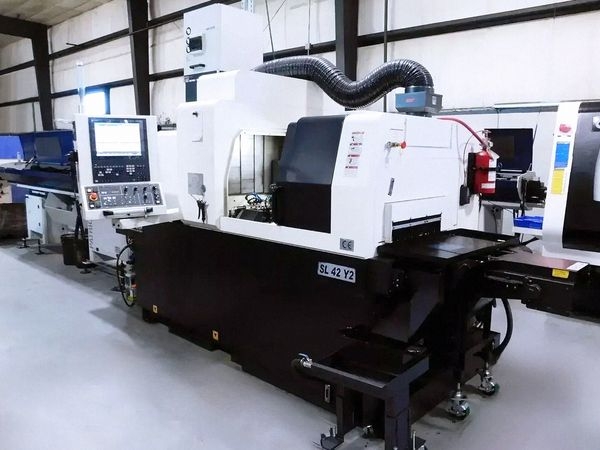

Pre-owned GANESH GENTURN SL42Y2 2021 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Minnesota. This GANESH CNC Lathe is available for a limited ...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 1.625"
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
Rapid Rate Z Axis: 944 IPM
Rapid Rate X Axis: 944 IPM
Max Turning Length: 4.13"
Double Y Axis and double C Axis
Traub-42 / 173E collet style (main & sub-spindle)
3-Bank axial live tool
30-Tools with 8-Driven tools standard
Simultaneous Main & sub-spindle machining
Spindle bore diameter: 1.732"
Collet closer style: Lever Action
Spindle bearing: Quad duplex pair
Max. workpiece length for front ejection: 110mm
Main spindle stroke: 12.20"
Rapid Traverse Rate, X/Y/Z-1, X/Y/Z-2: 944 ipm
X1, Z1 Axis motor power: 2 HP
X2, Y1, Y2, Z2 Axis motor power: 1 HP
X1, Y2 linear ways: Ball bearing
X2, Y1, Z1, Z2 linear ways: Roller bearing
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
Rapid Rate Z Axis: 944 IPM
Rapid Rate X Axis: 944 IPM
Max Turning Length: 4.13"
Double Y Axis and double C Axis
Traub-42 / 173E collet style (main & sub-spindle)
3-Bank axial live tool
30-Tools with 8-Driven tools standard
Simultaneous Main & sub-spindle machining
Spindle bore diameter: 1.732"
Collet closer style: Lever Action
Spindle bearing: Quad duplex pair
Max. workpiece length for front ejection: 110mm
Main spindle stroke: 12.20"
Rapid Traverse Rate, X/Y/Z-1, X/Y/Z-2: 944 ipm
X1, Z1 Axis motor power: 2 HP
X2, Y1, Y2, Z2 Axis motor power: 1 HP
X1, Y2 linear ways: Ball bearing
X2, Y1, Z1, Z2 linear ways: Roller bearing
Options:
Tool Presetter
Bar Feeder
Sub Spindle
Y Axis
5 Axis
Bar Feeder
Sub Spindle
Y Axis
5 Axis
Seller:
PeteP939
Location:
MN
