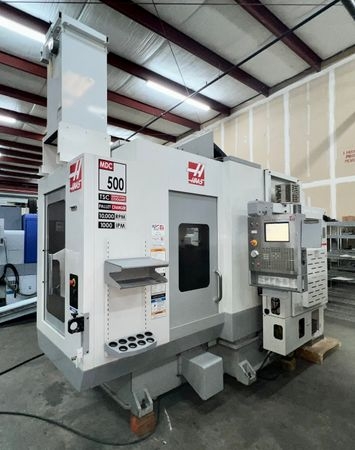

The 2005 HAAS MDC500 Vertical Machining Center is a high-performance CNC machine that is perfect for anyone in need of a powerful and reliable tool for precision machining. With 7,001 servo hours and 3,611 spindle hours, thi...Read More
Notify Me:
Specs:
X Axis Travel: 20"
Y Axis Travel: 14"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 833 IPM
Max Table Load: 700 LBS
Spindle Motor: 20 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Table Size: 20" x 12.75"
Dimensions: 143" x 105" x 113"
Weight: 14,000 LBS
Y Axis Travel: 14"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 833 IPM
Max Table Load: 700 LBS
Spindle Motor: 20 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Table Size: 20" x 12.75"
Dimensions: 143" x 105" x 113"
Weight: 14,000 LBS
Options:
HAAS CNC Control
Coolant Thru Spindle
Programmable Coolant
Rigid tapping
Pallet Changer
Coolant Thru Spindle
Programmable Coolant
Rigid tapping
Pallet Changer
