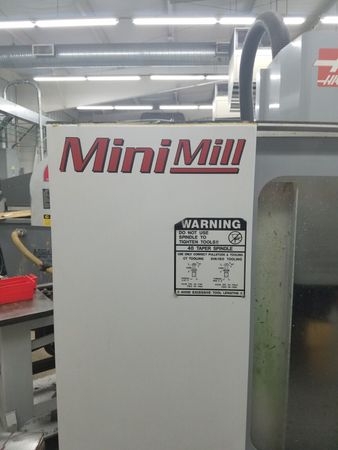

For sale is a 2000 HAAS MINI MILL Vertical Machining Center, an exceptional machinery that revolutionizes the machining process with its cutting-edge features and robust performance. This reliable used machine, which is curre...Read More
Notify Me:
Specs:
X Axis Travel: 16"
Y Axis Travel: 12"
Z Axis Travel: 10"
Table Size: 28.75" x 12"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 500 LBS
Spindle Motor: 7.5 HP
Spindle Speed: 6,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Bearing Lubrication: Grease Packed
Cooling: Air Cooled
Max Cutting: 500 ipm
Axis Motors: 2,000 IBF Max Thrust X,Y,Z
Max Tool Dia: 3.5"
Max Tool Weight: 12 lbs
Chip to Chip: 5 Sec
Coolant Capacity: 40 Gal Standard
Air Required 100 PSI
Full Load AMPS 13/25
Input Voltage 220 3 Phase
Weight: 4,000 LBS
Y Axis Travel: 12"
Z Axis Travel: 10"
Table Size: 28.75" x 12"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 500 LBS
Spindle Motor: 7.5 HP
Spindle Speed: 6,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Bearing Lubrication: Grease Packed
Cooling: Air Cooled
Max Cutting: 500 ipm
Axis Motors: 2,000 IBF Max Thrust X,Y,Z
Max Tool Dia: 3.5"
Max Tool Weight: 12 lbs
Chip to Chip: 5 Sec
Coolant Capacity: 40 Gal Standard
Air Required 100 PSI
Full Load AMPS 13/25
Input Voltage 220 3 Phase
Weight: 4,000 LBS
