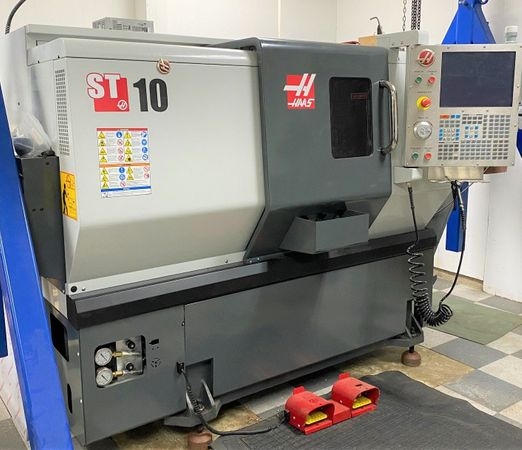

HAAS ST10 CNC Lathe

Used HAAS ST10 CNC Lathe

Pre-owned HAAS ST10 2012 CNC Lathe for only $34,500 $29,500. This CNC Lathe has average cutting time and is equipped with a Haas CNC Control control. This CNC Machine is currently located in CT. This HAAS CNC Lathe is the only one in stock and available for a limited time. Get a quote today on this ST10 before it's gone.

Specifications:
Bar Capacity: 1.75"
Chuck Size: 6.5"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 7.88"
Z Axis Travel: 14"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 14"
Max Turning Length: 16"
Max Swing: 25.25"
Max Part Diameter 16.5"
Max Thrust X 3300 lbf
Max Thrust Z 3300 lbf
Spindle Nose A2-5
Max Torque 75 ft-lbf
Spindle Bore 2.31"
Drive System Direct Speed
Coolant Cap 30 gal
Dimensions: 126" x 83" x 71"
Weight: 7,900 LBS
Equipped With:
Haas CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Rigid Tapping
Video:
Seller:
George (Machine Shop in USA)
q-a icon
Answers
what are the hours?
POWER ON: 75 CYCLE START: 8:59 FEED CUTTING: 8:03
any mechanical or electrical Issues?
great
why are you thinking of selling it?
needs have changed. sitting under power/ runs spindle monthly to get it moving.
what did it cost when it was new?
46875
what city and state is this machine located in?
CT
any options?
Tailstock chip conveyor 6k rpm 6.5" chuck 12 station turret automatic tool presetter rigid tapping parts catcher
when do you need it out by?
no
