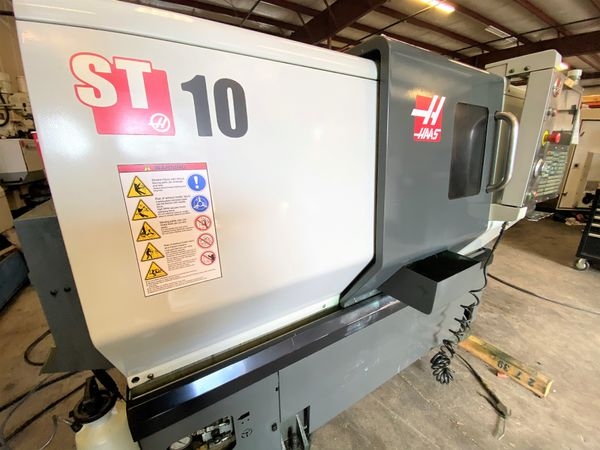

HAAS ST10 CNC Lathe

Used HAAS ST10 CNC Lathe

Pre-owned HAAS ST10 2012 CNC Lathe for only $NaN. This CNC Lathe has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in FL. This HAAS CNC Lathe is the only one in stock and available for a limited time. Get a quote today on this ST10 before it's gone.

Specifications:
Bar Capacity: 175"
Chuck Size: 65"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 788"
Z Axis Travel: 16"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 14"
Max Turning Length: 16"
Max Swing: 2,525"
Max Part Diameter 16.5"
Max Thrust X 3300 lbf
Max Thrust Z 3300 lbf
Spindle Nose A2-5
Max Torque 75 ft-lbf
Spindle Bore 2.31"
Drive System Direct Speed
Coolant Cap 30 gal
Dimensions: null" x null" x null"
Weight: 7,900 LBS
Equipped With:
HAAS CNC Control
Seller:
Steve (Machine Shop in USA)
q-a icon
Answers
any options?
A2-5, C-AXIS GEAR, OIL MIST NOZZLE Auto tool preset Air blast Chip -belt type conveyor Coolant filter Parts catcher Manual Tailstock (Hydraulic Quill) 6.5" 3-Jaw LMC Hydraulic Chuck Tool Presetter Parts Catcher Chip Conveyor Intuitive Programming System Spindle Drive Line Accelerator Spindle Load Monitor Rigid Tapping USB Port Macros Quick Code
what are the hours?
SERVO TIME: 11049 MOTION TIME: 6816 SPINDLE TIME: 9867
