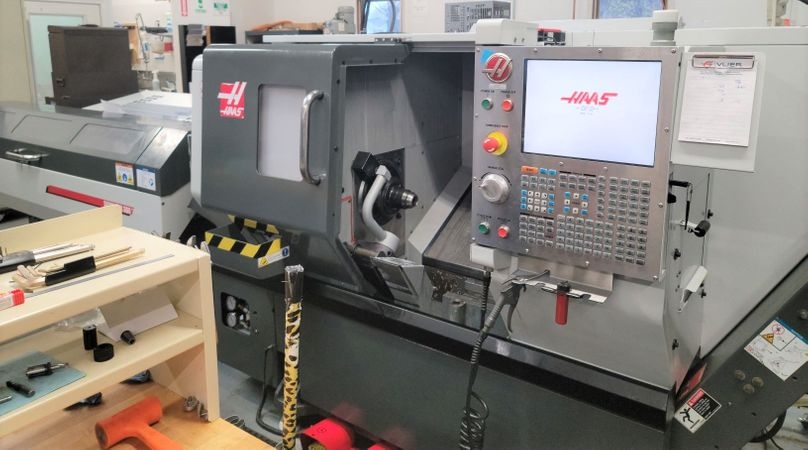

Pre-owned HAAS ST10 2013 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Massachusetts. This HAAS CNC Lathe is available for a limited time. Get a quote today on this ST10 before it's gone.
Notify Me:
Specs:
Bar Capacity: 1.75"
Chuck Size: 6.5"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 7.88"
Z Axis Travel: 16"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 14"
Max Turning Length: 16"
Max Swing: 25.25"
Max Part Diameter 16.5"
Max Thrust X 3300 lbf
Max Thrust Z 3300 lbf
Spindle Nose A2-5
Max Torque 75 ft-lbf
Spindle Bore 2.31"
Drive System Direct Speed
Coolant Cap 30 gal
Dimensions: 126" x 70" x 80"
Weight: 7,900 LBS
Chuck Size: 6.5"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 7.88"
Z Axis Travel: 16"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 14"
Max Turning Length: 16"
Max Swing: 25.25"
Max Part Diameter 16.5"
Max Thrust X 3300 lbf
Max Thrust Z 3300 lbf
Spindle Nose A2-5
Max Torque 75 ft-lbf
Spindle Bore 2.31"
Drive System Direct Speed
Coolant Cap 30 gal
Dimensions: 126" x 70" x 80"
Weight: 7,900 LBS
Options:
HAAS CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Bar Feeder
Parts Catcher
Chip Blaster High pressure system
Chip Conveyor
Tool Presetter
Tailstock
Bar Feeder
Parts Catcher
Chip Blaster High pressure system
