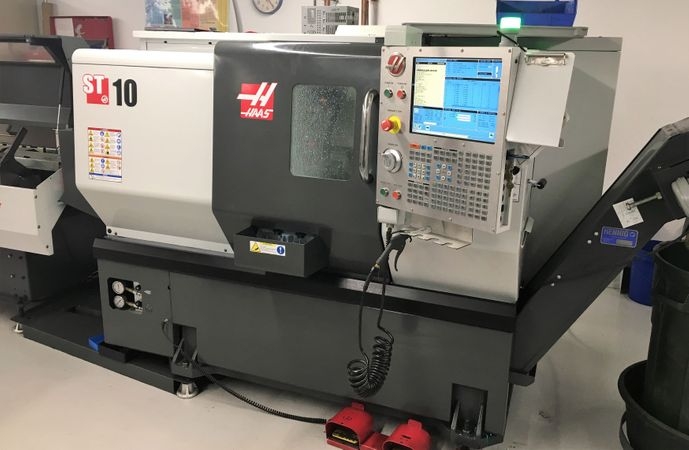

Used HAAS ST10 CNC Lathe
Pre-owned HAAS ST10 2013 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Maryland. This HAAS CNC Lathe is available for a limited time.Get a quote today on this ST10 before it's gone.
Specs:
Bar Capacity: 1.75"
Chuck Size: 6.5"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 7.88"
Z Axis Travel: 16"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 14"
Max Turning Length: 16"
Max Swing: 25.25"
Max Part Diameter 16.5"
Max Thrust X 3300 lbf
Max Thrust Z 3300 lbf
Spindle Nose A2-5
Max Torque 75 ft-lbf
Spindle Bore 2.31"
Drive System Direct Speed
Coolant Cap 30 gal
Dimensions: 126" x 70" x 80"
Weight: 7,900 LBS
Chuck Size: 6.5"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 7.88"
Z Axis Travel: 16"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 14"
Max Turning Length: 16"
Max Swing: 25.25"
Max Part Diameter 16.5"
Max Thrust X 3300 lbf
Max Thrust Z 3300 lbf
Spindle Nose A2-5
Max Torque 75 ft-lbf
Spindle Bore 2.31"
Drive System Direct Speed
Coolant Cap 30 gal
Dimensions: 126" x 70" x 80"
Weight: 7,900 LBS
Options:
HAAS CNC Control
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Owner:
Warren (Located in USA)
