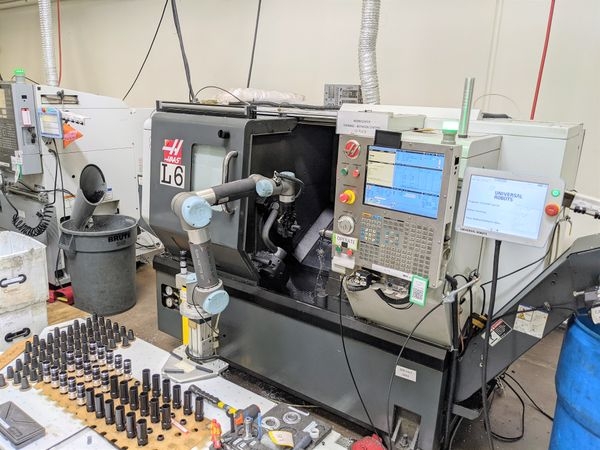

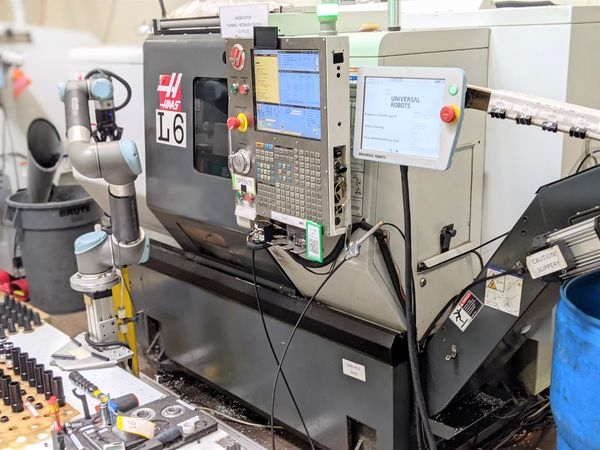

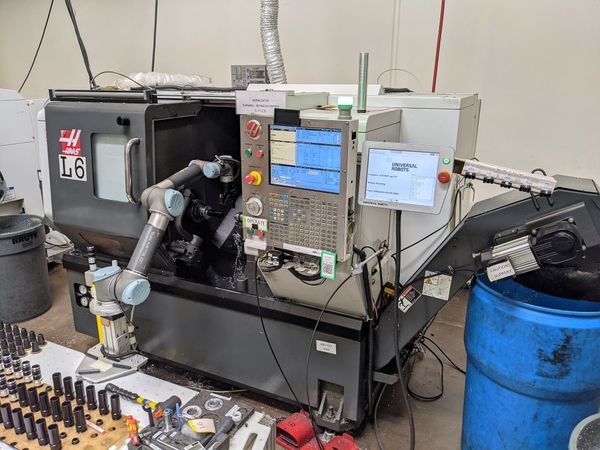

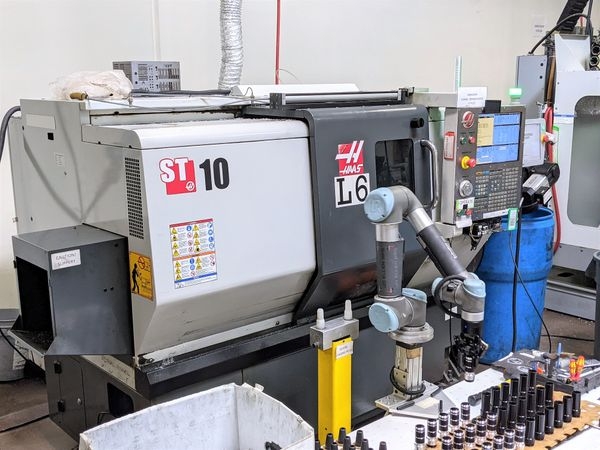

L6 - HAAS ST10 2015 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited time. Get a...Read More
Rigging:
$1,400
Specs:
Max Part Swing: 16.5"
Max Turning Diameter: 14"
Max Turning Length: 16"
X Axis Travel: 7.9"
Z Axis Travel: 16"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Spindle Nose: A2-5
Spindle Bore / Bar Capacity: 2.31" / 1.75"
Rated Chuck Size: 6.5"
Turret Stations: 12 Station
Machine Dimensions: 126" x 70" x 81"
Machine Weight: 7,900 LBS
Max Turning Diameter: 14"
Max Turning Length: 16"
X Axis Travel: 7.9"
Z Axis Travel: 16"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Spindle Nose: A2-5
Spindle Bore / Bar Capacity: 2.31" / 1.75"
Rated Chuck Size: 6.5"
Turret Stations: 12 Station
Machine Dimensions: 126" x 70" x 81"
Machine Weight: 7,900 LBS
Options:
HAAS CNC Control
Chip Conveyor
Tool Presetter
Tailstock
User-Definable Macros
Visual Parts Programming
Rigid Tapping
Haas Connect
Ethernet
WiFi
1 GB Memory
Chip Conveyor
Tool Presetter
Tailstock
User-Definable Macros
Visual Parts Programming
Rigid Tapping
Haas Connect
Ethernet
WiFi
1 GB Memory
