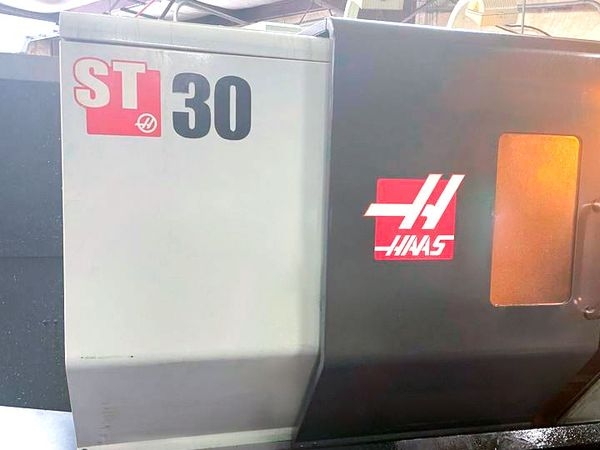

Throughout the decades, HAAS has become synonymous with innovation and top-tier quality in the realm of manufacturing machines, embedding careful craftsmanship, precision and technological advancements in each of its units. I...Read More
Notify Me:
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 40 HP
X Axis Travel: 12.5"
Z Axis Travel: 26"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 21"
Max Turning Length: 26"
Max Swing: 31"
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-8
Max Torque 300 ft-lbf
Spindle Bore 3.5"
Coolant Cap 55 gal
Weight: 14,300 LBS
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 40 HP
X Axis Travel: 12.5"
Z Axis Travel: 26"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 21"
Max Turning Length: 26"
Max Swing: 31"
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-8
Max Torque 300 ft-lbf
Spindle Bore 3.5"
Coolant Cap 55 gal
Weight: 14,300 LBS
Options:
HAAS CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Chip Conveyor
Tool Presetter
Tailstock
