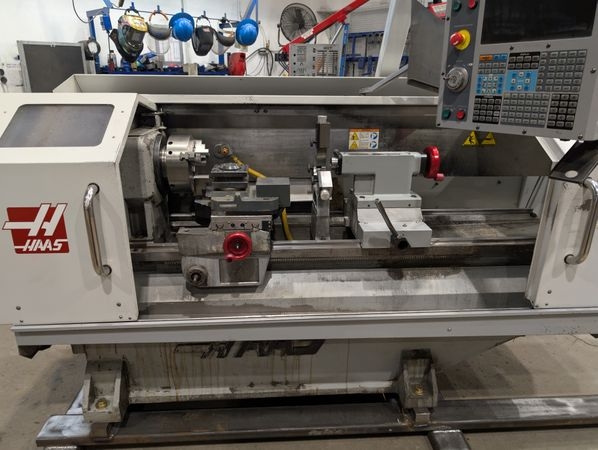

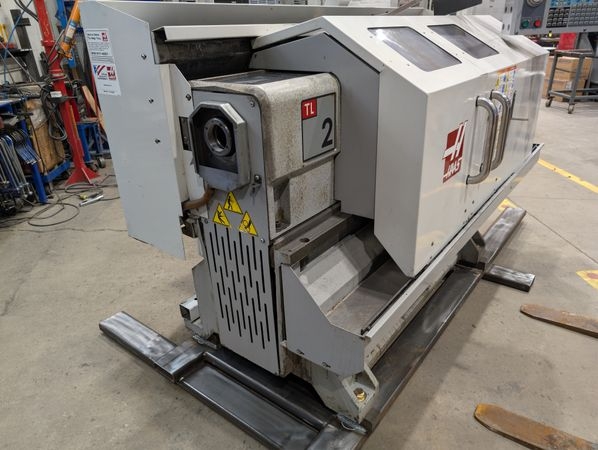

HAAS TL2 CNC Lathe

Bidding has ended for this lot

This 2007 HAAS TL2 CNC Lathe is a versatile machine designed to meet the needs of both small and medium-sized workshops. A key feature of this lathe is its adaptability, as it can operate on both single-phase and three-phase ...Read More

Specs:
Bar Capacity: 2.9"
Chuck Size: 8"
Spindle Speed: 2,000 RPM
Spindle Motor: 10 HP
X Axis Travel: 8"
Z Axis Travel: 48"
Rapid Rate Z Axis: 450 IPM
Turret Tools: 1 Station
Rapid Rate X Axis: 450 IPM
Max Turning Dia: 16"
Max Turning Length: 48"
Max Swing: 16"
Spindle Nose A2-5
Max Torque 108 ft-lbf @ 355 rpm
Weight: 4,480 LBS
Options:
Tailstock
Steady Rest
3 Live Centers
Jacobs Chuck
Full Enclosure
Machine Can Run Either Single Phase or Three Phase Power
4 Position Tool Changer
Coolant Tank and Pump

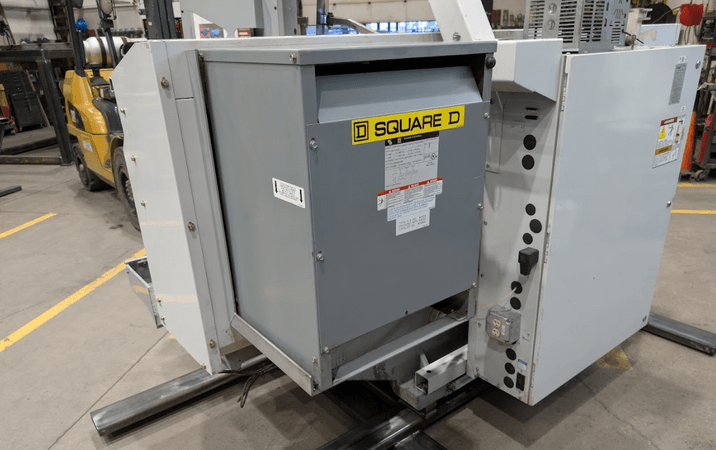

Transformer
