X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Table Size: 36" x 14"
Weight: 7,800 LBS

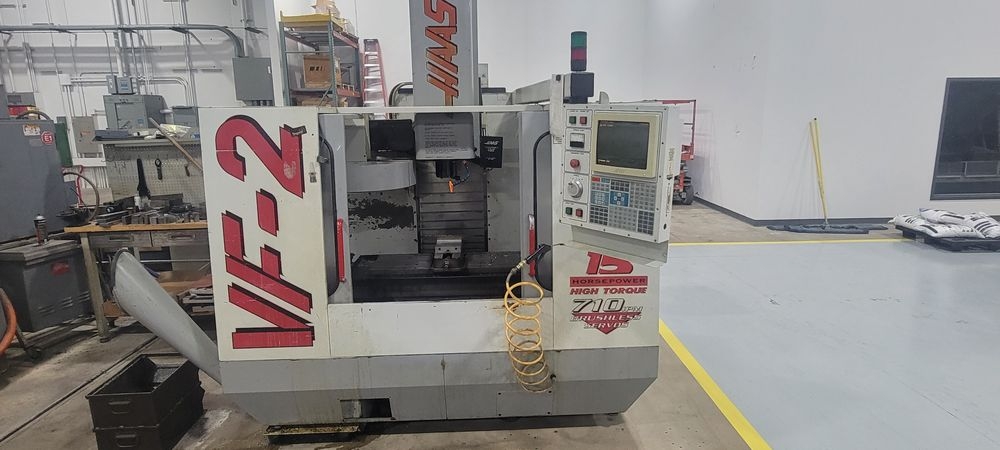

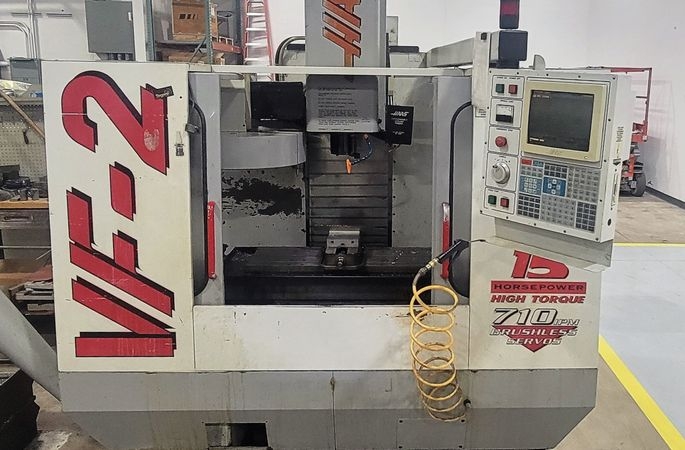

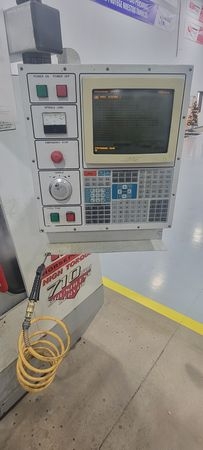

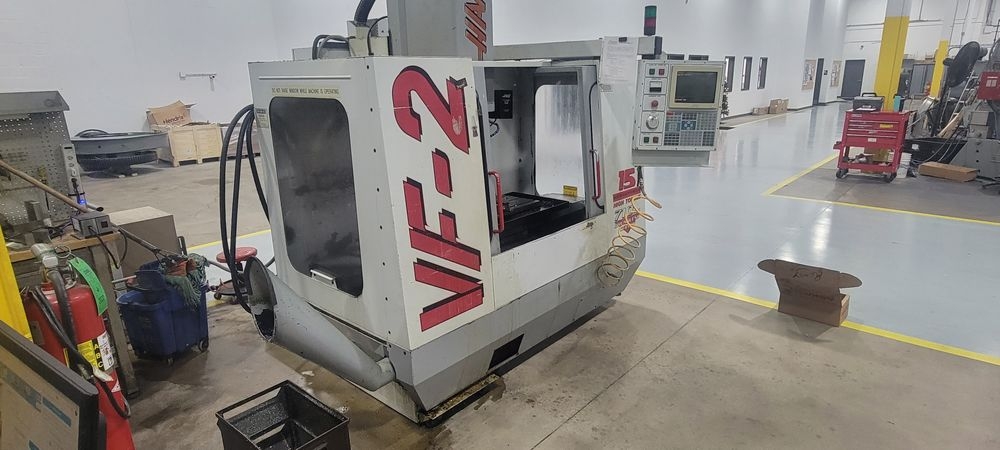

This 1997 HAAS VF2 Vertical Machining Center is a great choice for any shop looking for a older Haas CNC machine. This machine is equipped with a HAAS CNC Control, which is easy to use and provides a wide range of features. The VF2 has a 30"x16" working envelope, allowing it to handle a variety of machining tasks. It also has a high-speed spindle, allowing it to quickly and accurately complete jobs. This machine is in working condition and ATC door needs to be repaired.
This machine comes with a variety of options, including a programmable coolant system. This system allows the user to control the flow of coolant to the cutting tool, ensuring that the tool is kept cool during operation. This helps to reduce wear and tear on the tool and increases the life of the machine.
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Table Size: 36" x 14"
Weight: 7,800 LBS
