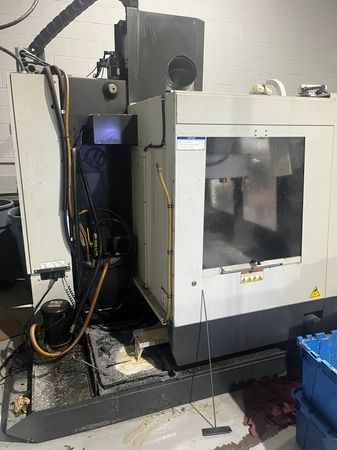

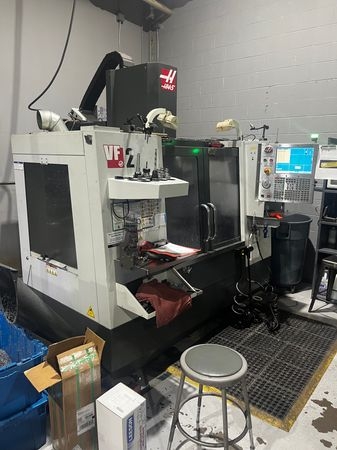

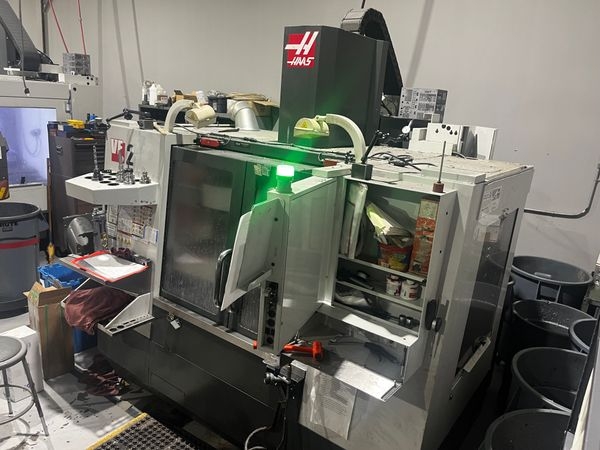

Introducing a 2011 HAAS VF2 Vertical Machining Center available for sale due to excess machining capacity and outsourcing of some in-house work. This versatile and precise machine is available for immediate purchase and is lo...Read More
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Max Torque 90 ft-lbf
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Table Size: 36" x 14"
Dimensions: 101" x 99" x 101"
Weight: 7,800 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Max Torque 90 ft-lbf
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Table Size: 36" x 14"
Dimensions: 101" x 99" x 101"
Weight: 7,800 LBS
Options:

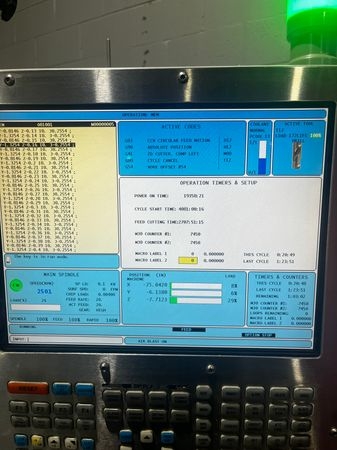

HAAS CNC Control
Probe
Programmable Coolant
Chip Auger
High Intensity Lighting
Probe
Programmable Coolant
Chip Auger
High Intensity Lighting
