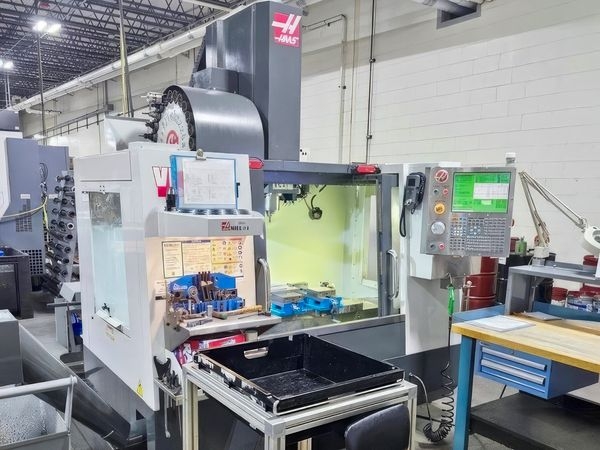

This 2011 HAAS VF2SSYT Vertical Machining Center is up for sale. It has been put to good use in our top-level facility, with work hours extending to two shifts per day while in production. The machine is in a high-grade state...Read More
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting: 833 ipm
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Table Size: 36" x 18"
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting: 833 ipm
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Table Size: 36" x 18"
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Options:
Probe
Programmable Coolant
5 Axis
Extended Y Axis Travel (20")
4th Axis Drive & Wiring
5th Axis Drive & Wiring
12,000 RPM Spindle
Sidemount Tool Changer (24 ATC)
Remote Jog Handle
Chip Auger
Intuitive Programming System
Coordinate Rotation & Scaling
High Speed Machining
Spindle Orientation
Rigid Tapping
Macros
Ethernet
USB Port
Programmable Coolant
5 Axis
Extended Y Axis Travel (20")
4th Axis Drive & Wiring
5th Axis Drive & Wiring
12,000 RPM Spindle
Sidemount Tool Changer (24 ATC)
Remote Jog Handle
Chip Auger
Intuitive Programming System
Coordinate Rotation & Scaling
High Speed Machining
Spindle Orientation
Rigid Tapping
Macros
Ethernet
USB Port
