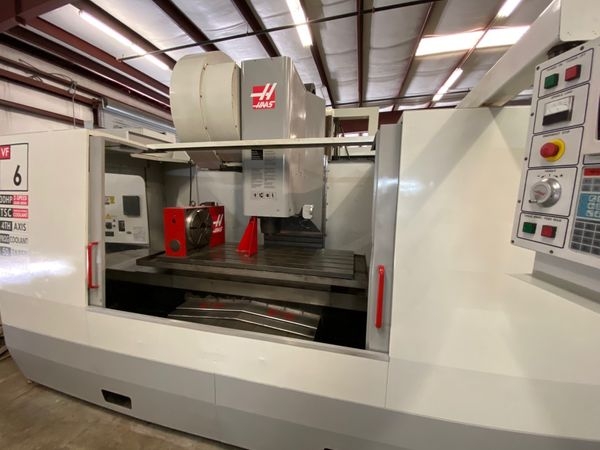

Pre-owned HAAS VF6-50 1999 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Florida. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF6-50 before it's gone.
Notify Me:
Specs:
X Axis Travel: 64"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 64" x 28"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50 CT
Tool Changer: 24 ATC
Drive System 2-Speed Gearbox
Max Torque 340 ft-lbt
Max Weight 4,000 lbs
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 10"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Dimensions: 195" x 102" x 132"
Weight: 25,500 LBS
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 64" x 28"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50 CT
Tool Changer: 24 ATC
Drive System 2-Speed Gearbox
Max Torque 340 ft-lbt
Max Weight 4,000 lbs
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 10"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Dimensions: 195" x 102" x 132"
Weight: 25,500 LBS
